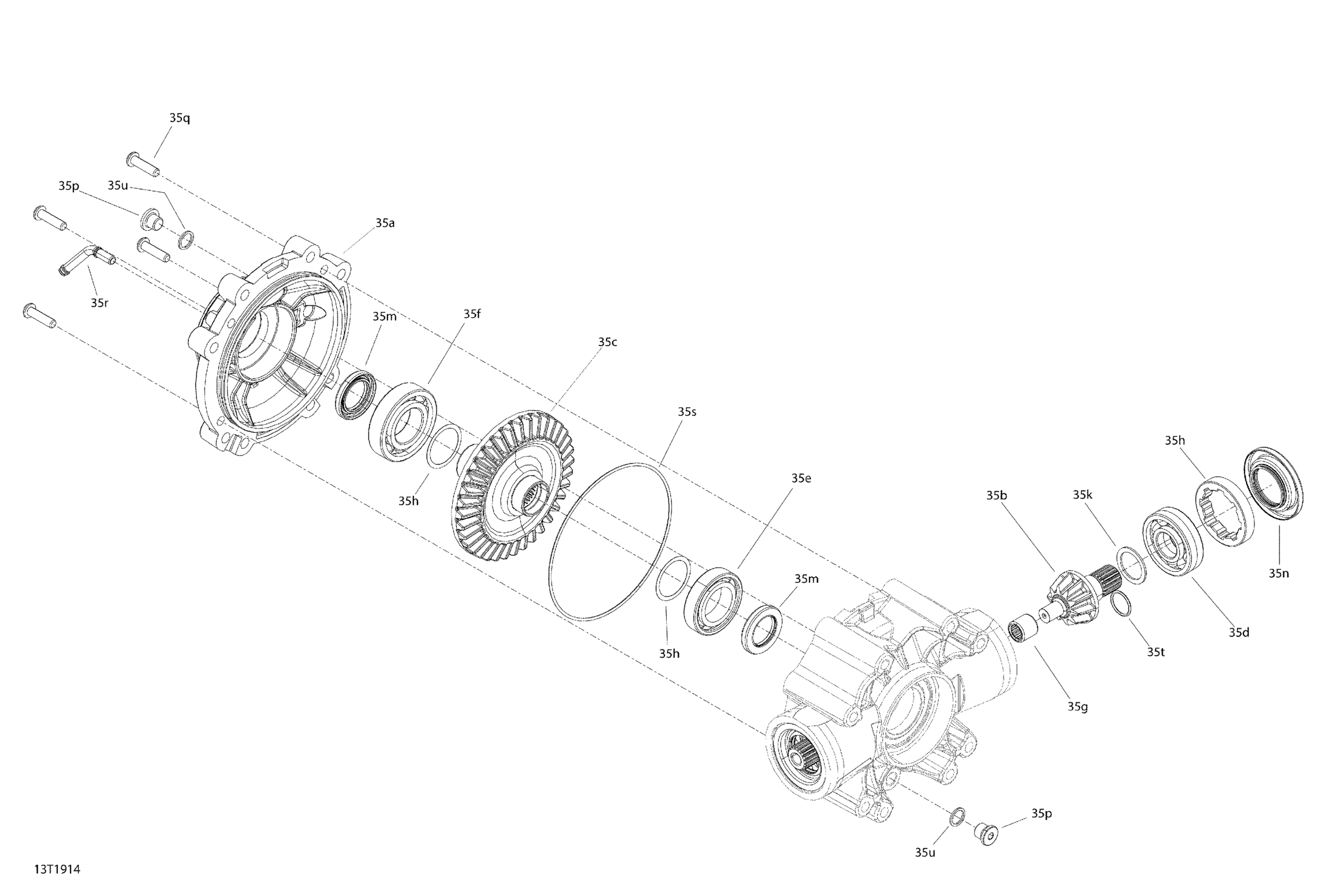

Can-Am Outlander MAX 6X6 - 450 EFI - T3, 2019 Rear Drive - Middle Differential Diagram

Description

Price

35a

Rear Cover

705502390

$175.35

35b

Pinion 10 Teeth

705502823

$207.66

35c

Gear 36 Teeth

705502822

$383.05

35d

Ball Bearing

705502055

$30.39

35e

Ball Bearing

705502737

$46.07

35f

Ball Bearing

705502738

$56.52

35g

Needle Bearing

705502058

$47.49

35h

Nut

705502059

$32.28

35h

Differential Shim 0.02 mm

705502060

$13.83

35k

Pinion Gear Shim 1.67 mm

705502061

$16.12

35m

Oil Seal

705501996

$20.74

35n

Oil Seal

705402405

$27.66

35p

Fill Level Plug | 4X4

705500504

$7.61

35q

SOCKET HEAD SCREW M8 X 30 - Call your local BRP dealership

205483046

Unavailable

35r

Breather Tube

705501584

$13.86

35s

Seal

705502064

$8.31

35t

O-Ring

705502065

$5.98

35u

Copper Washer | 4X4

705500506

$0.36
