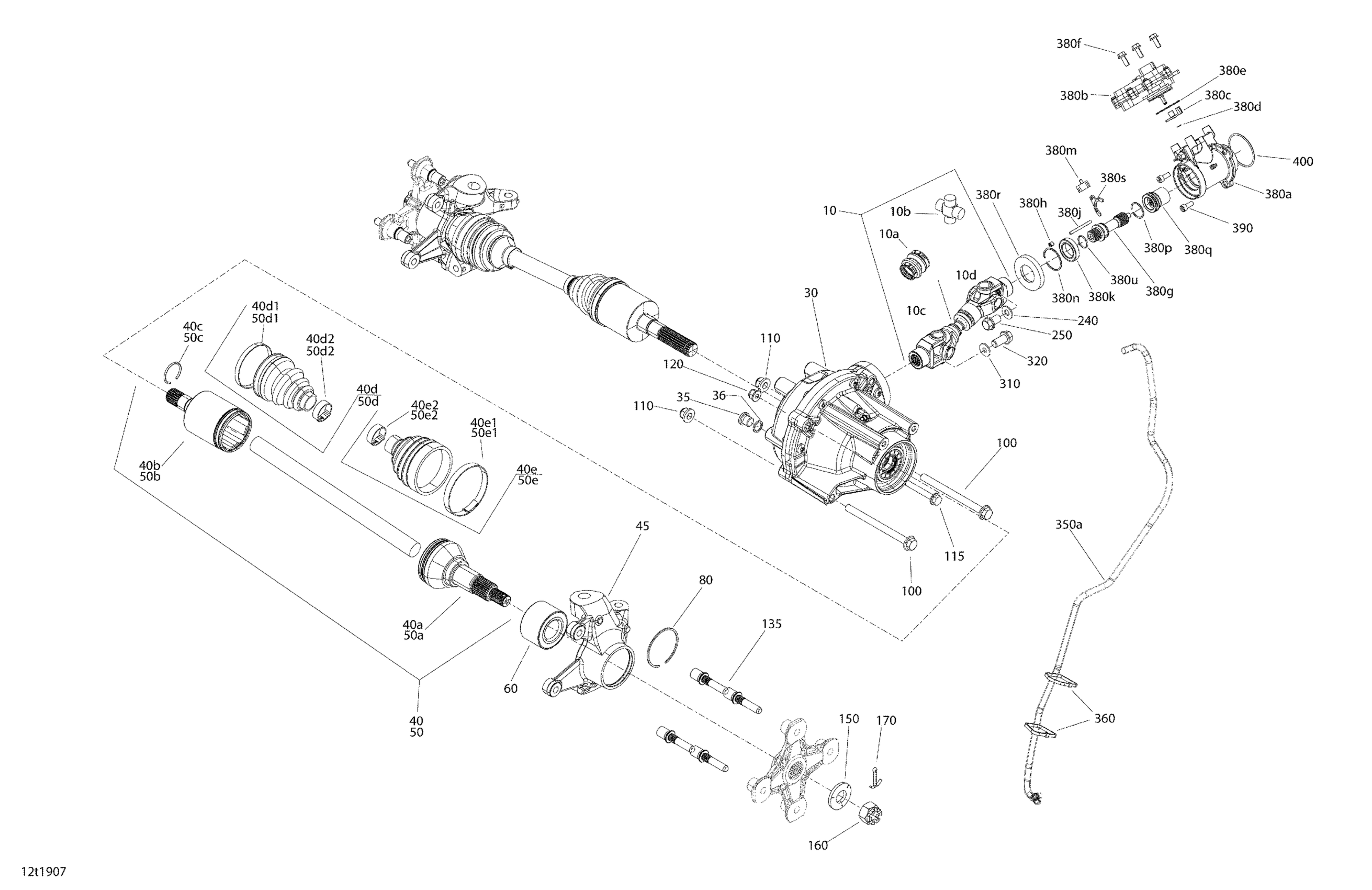

Can-Am Outlander MAX 6X6 - 450 EFI - T3, 2019 Front Drive - 6X6 - Common Parts Diagram

#

Description
Price

10

Front Drive Axle

705403293

$170.74

10a

Rubber Boot

715900118

$13.83

10b

U-Joint Cross Kit | Engine 450

715900435

$78.43

10c

Fixed Yoke Joint

715900497

$59.97

10d

Yoke Joint

715900498

$23.05

30

Front Differential | XT, XT-P, Includes 9 to 29

703500908

$1,684.58

30

Front Differential | Includes 8 to 31

703500907

$1,476.89

35

Fill Level Plug | 4X4

705500504

$7.61

36

Copper Washer | 4X4

705500506

$0.36

40

RH Front - Premium CV Axle

705401428

$233.82

40a

CV Joint

715900297

$253.82

40b

RH Plunging CV Joint

715900300

$253.82

40c

Circlip Joint | Not shown

705401349

$5.38

40d

CV Boot Kit, Wheel Side

715900298

$41.51

40d1

Oetiker Clamp, Large

715900262

$7.84

40d2

Oetiker Clamp, Small

715900317

$10.20

40e

CV Boot Kit, Differential Side

715900299

$41.51

40e1

Oetiker Clamp, Large

715900318

$10.20

40e2

Oetiker Clamp, Small

715900317

$10.20

45

LH Knuckle

705403307

$175.35

46

RH Knuckle

705403308

$175.35

50

LH Front - Premium CV Axle

705401429

$232.74

50a

CV Joint

715900297

$253.82

50b

LH Plunging CV Joint

715900301

$253.82

50c

Circlip Joint | Not shown

705401349

$5.38

50d

CV Boot Kit, Wheel Side

715900298

$41.51

50d1

Oetiker Clamp, Large

715900262

$7.84

50d2

Oetiker Clamp, Small

715900317

$10.20

50e

CV Boot Kit, Differential Side

715900299

$41.51

50e1

Oetiker Clamp, Large

715900318

$10.20

50e2

Oetiker Clamp, Small

715900317

$10.20

60

Ball Bearing

293350150

$51.93

80

Circlip

293370019

$4.98

100

Hex. Flange Screw M10 X 125

230602546

$6.08

110

Hex. Flange Elastic Nut M10

233201436

$1.74

115

Hex. Flange Screw M8 X 55

207685544

$4.41

120

Hex. Flange Elastic Nut M8

233281414

$1.14

135

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$4.62

150

Conical Spring Washer M18

250200171

$5.28

170

Cotter Pin

250400071

$1.74

240

Flat Washer M12

250200102

$1.74

250

Hex Flange Screw M12 X 16

250001039

$1.74

310

Flat Washer M10 | 4X4

250200014

$1.17

320

Hex Flange Screw M10 X 20 S.Grip

250001046

$3.61

350a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

360

Tie-Rap 180 mm

414115200

$0.09

380a

Machined Housing

705402360

$156.89

380b

Actuator Ass'y

705402090

$391.51

380c

Fork | 4X4

705400274

$16.12

380d

Circlip | 4X4

293370042

$3.11

380e

O-Ring

293300117

$4.28

380f

Hex. Flange Screw M8 X 20, Scotch Grip | 4X4

250000137

$3.23

380g

Idler Shaft Gear

705401509

$101.51

380h

Pressure Screw M8 X 8 | 4X4

206580890

$1.65

380j

Dowell Pin | 4X4

250400025

$7.37

380k

Ball Bearing | 4X4

705400249

$24.58

380m

Slider | 4X4

705402139

$46.12

380n

Circlip | 4X4

293370029

$5.52

380p

Circlip | 4X4

293370030

$2.75

380q

Coupling Sleeve | 4X4

705400389

$32.28

380r

Oil Seal

293250348

$18.43

380s

Shifter Lever Plate | 4X4

705401553

$16.89

380u

O-Ring

293300179

$2.31

390

Socket Head Screw M8 X 20, Scotch Grip

250000136

$3.06

400

O-Ring

293300091

$7.37
