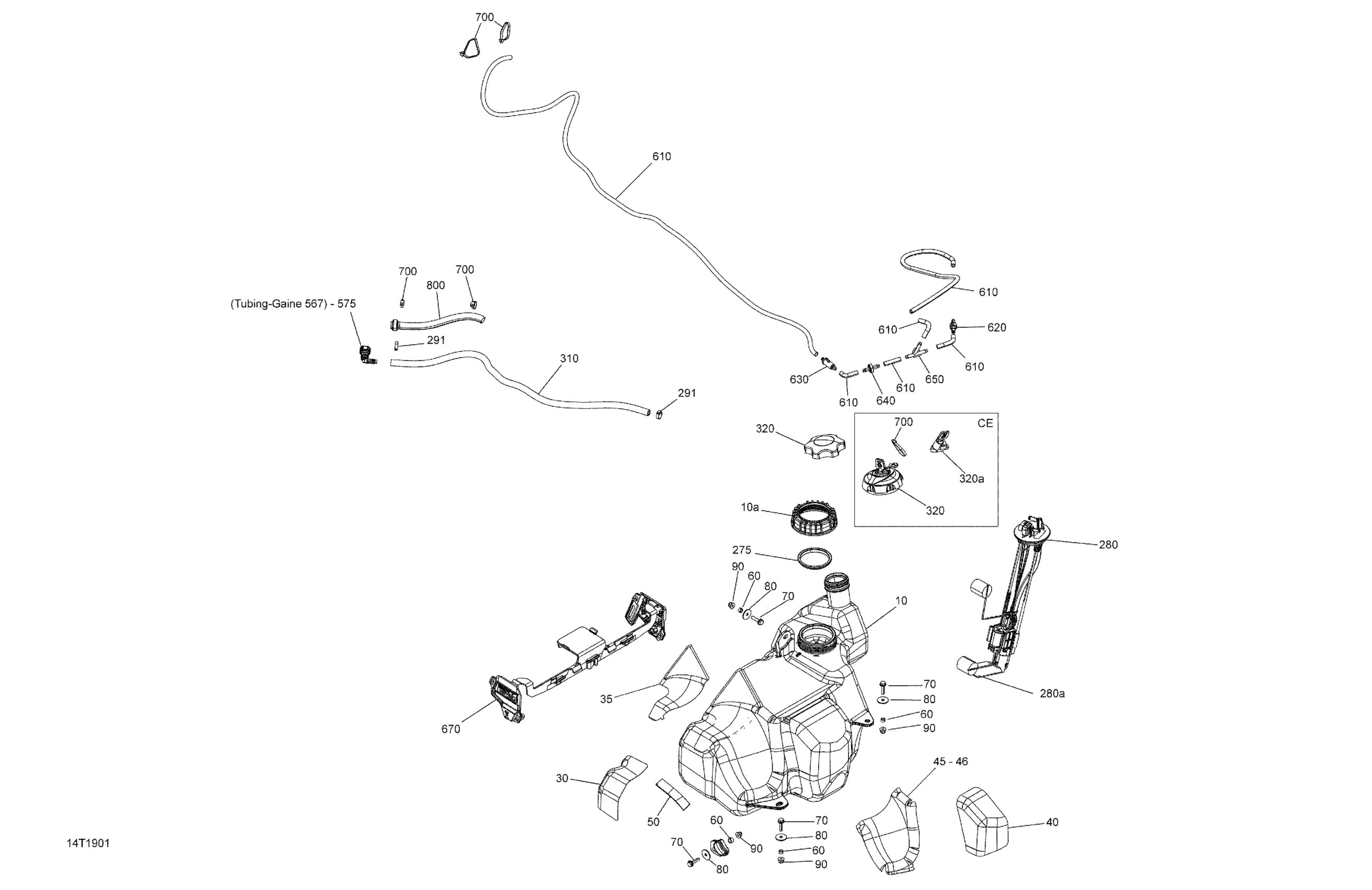

Can-Am Outlander MAX 6X6 - 450 EFI - T3, 2019 Fuel Diagram

Fuel Tank Ass'y | Includes 10 to 10b

709000843

$236.54

Fuel Pump Module Nut

709000328

$12.43

Heat Reflective Sheet

709000381

$5.18

Heat Reflective Sheet

709000387

$3.81

Heat Reflective Sheet

709001071

$8.48

Heat Reflective Sheet

709000388

$4.76

Heat shield

709000528

$16.39

Rubber Pad

293830172

$2.13

Bushing | DS 650 X

293900104

$5.10

Hex. Flange Screw M6 X 25

207662544

$0.61

Washer

224060251

$0.55

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

Seal

709000208

$12.16

Fuel Pump

709000461

$323.94

Prefilter Fuel Pump Kit 86mm Long

715900322

$68.63

Crimp Clamp, 15.3-706R

293650047

$3.03

Was 709000163 Fuel Line

219704440

$25.34

Lock Device Kit | Europe Model

707001750

$63.40

Padlock with Key

707000666

$23.10

Locking Cap Tank | Europe

860200387

$55.19

Tie-Rap 180 mm

414115200

$0.10

Tubing 16 Mm 1000Mm Long

219704408

$7.15

Quick Attach 90°

275500700

$14.48

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

Tubing 10 MM 1000MM Long

219704407

$2.52

Tie-Rap 180 mm

414115200

$0.10

Check Valve

513033469

$29.07

Filter

709000330

$7.48

Check Valve

275500398

$9.84

Y-Fitting

293710059

$9.40

Hose Support Ass'y

709000359

$13.39

Hex. Elastic Stop Nut M6

232561600

$1.06

Tie-Rap 180 mm

414115200

$0.10

Tube 25Mm 1000Mm Long | Engine 450

219704350

$48.48

Tie Wrap 142 mm

293750002

$1.01
