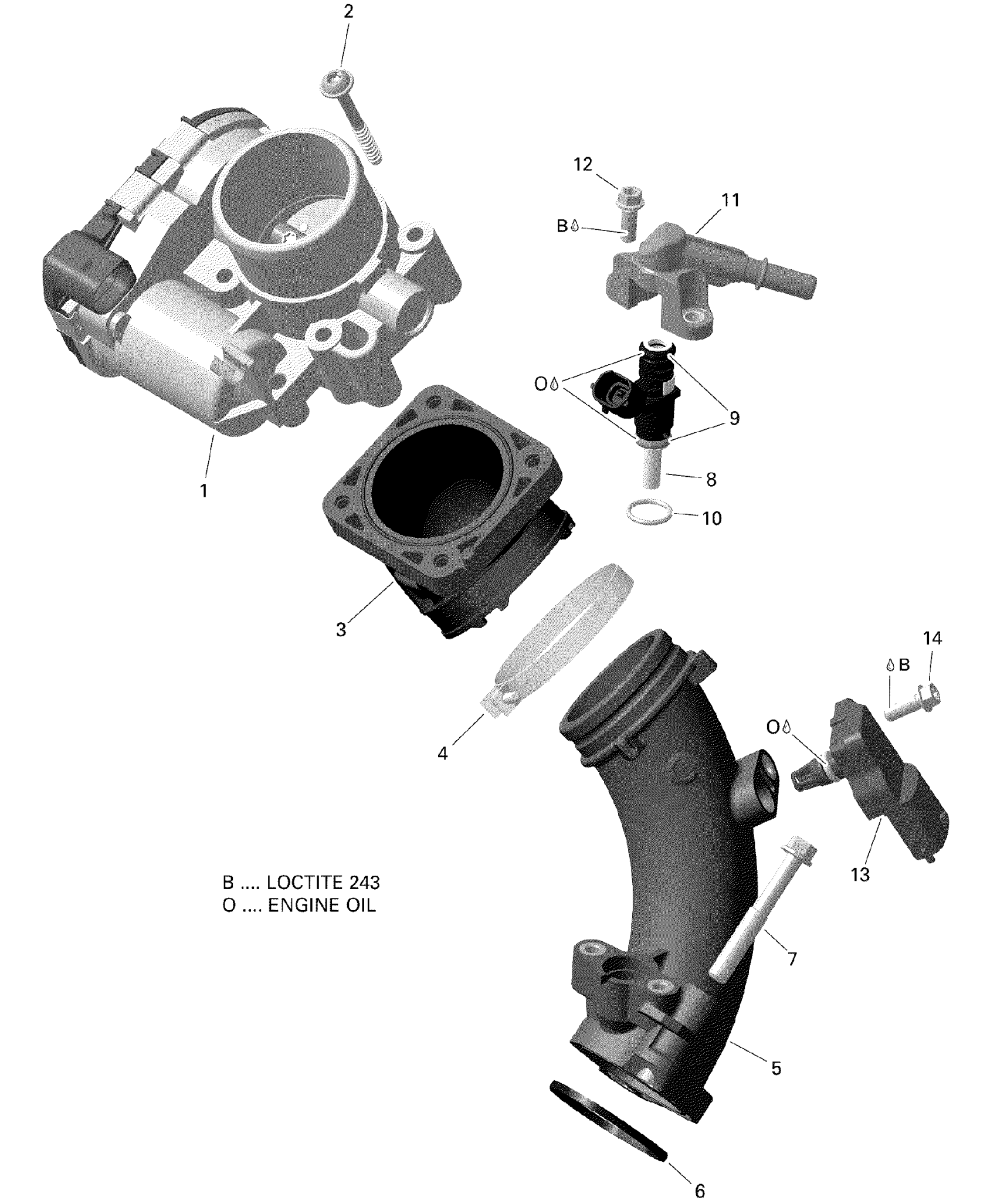

Can-Am 004 - Outlander MAX 6X6 - 450 EFI - T3, 2019 02- Air Intake Manifold And Throttle Body T3 Diagram

#

Description
Price

1

Throttle Body

420893149

Unavailable

2

Torx Flange Screw M6 X 50

420441588

Unavailable

3

Intake Neck

420267215

Unavailable

4

Clamp

420251480

Unavailable

5

Intake Adaptor

420267527

Unavailable

6

Gasket

420630642

Unavailable

7

Torx Flange Screw M8 X 55

420641213

Unavailable

8

Injection Valve Ass'y | Includes 17 to 19

420874889

Unavailable

9

O-Ring

420631220

Unavailable

10

O-Ring

420631296

Unavailable

11

Fuel Rail

420874905

Unavailable

12

Torx Flange Screw M6 X 16

420440164

Unavailable

13

Pressure And Temperature Sensor

707000995

Unavailable

14

Torx Flange Screw M6 X 16

420440164

Unavailable
