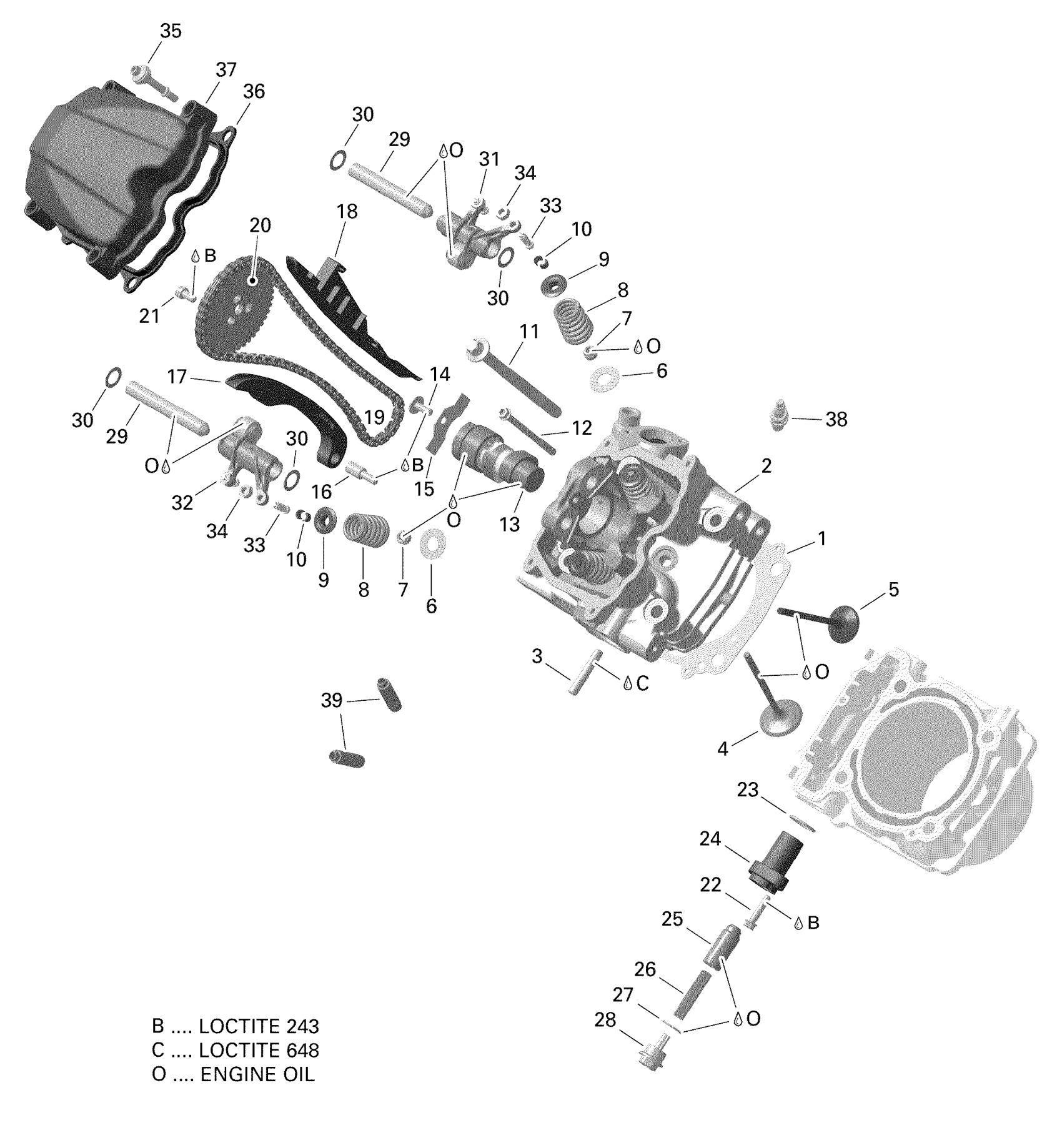

Can-Am Outlander MAX 6X6 - 450 EFI - T3, 2019 Cylinder Head - 450 EFI Diagram

#

Description
Price

1

Cylinder Head Gasket

420450340

$42.51

2>3

Cylinder Front Ass'y | Includes 2a to 3

420413106

$660.49

3

Stud M8 x 26

420941014

$12.15

4

Intake Valve 36.5mm

420253162

$39.31

5

Exhaust Valve 31MM

420253172

Unavailable

6

Thrust Washer

420627525

$1.72

7

Valve Stem Seal

420430420

$6.73

8

Valve Spring

420239292

$13.40

9

Valve Spring Retainer

420254137

$13.40

10

Valve Cotter

420254602

$1.88

11

Torx Screw M10X140

420641551

$13.18

12

Torx Flange Screw M6 X 85

420641228

$7.01

13

Camshaft

420281773

$171.49

14

Torx Screw M6 X 16

420241529

$1.79

15

Holding Strip

420627743

$17.13

16

Bearing Screw M6

420240943

$4.16

17

Chain Tension Guide

420436255

$56.69

18

Chain Guide

420236584

$7.09

19

Silent Chain

420297063

$61.91

20

Timing Gear 42T

420254438

$17.13

21

Allen Screw M6 X 12

420840032

$4.15

22

Torx Flange Screw M6 X 25

420440235

$2.00

23

O-Ring

420430373

$3.01

24

Chain Tensioner Housing

420236510

$10.76

25

Chain Tensioner Plunger

420236521

$14.04

26

Spring

420238120

$7.01

27

O-Ring

420250890

$2.87

28

Plug Screw

420641150

$7.01

29

Pin 12 X 87.5

420229714

$26.09

30

Shim

420944382

$3.88

31

Rocker Arm Inlet

420653067

$66.39

32

Rocker Arm Exhaust

420653075

$73.85

33

Adjustment Screw M6 X 0.75

420241337

$4.75

34

Hex Nut M6

420242913

$0.51

35

Hex Screw M6 X 30

420440568

$8.15

36

Gasket

420630260

$8.09

37

Valve Cover

420610393

$25.34

38

Spark Plug, NGK LMAR8D-J

715900352

$21.61

39

Valve Guide

420254377

$36.99
