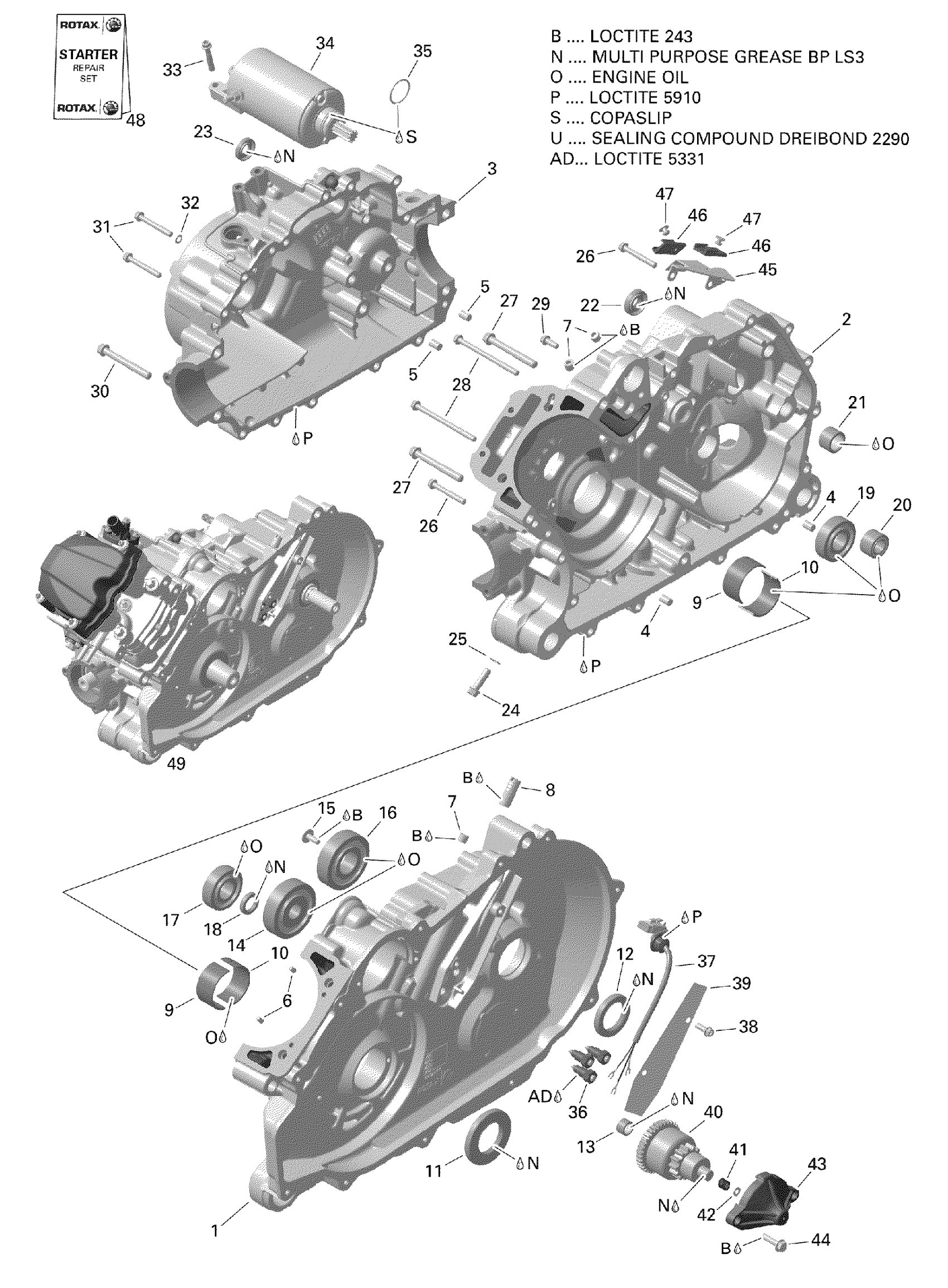

Can-Am Outlander MAX 6X6 - 450 EFI - T3, 2019 Crankcase Diagram

#

Description
Price

1>22

Housing Ass'y | Includes 1a to 22

420686324

$1,384.49

1>22

Housing Ass'y | 6X6 T3

420686325

$1,384.49

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Center Pin 8 X 12

420632010

$3.52

5

Center Pin 8 X 12

420632010

$3.52

6

Drive Pin 5 X 10

420929650

$1.54

7

Plug Screw M10 X 1

420641323

$13.18

8

Hose Nipple

420256332

$16.39

9

Plain Bearing

420233960

$22.36

10

Plain Bearing

420233965

$22.36

11

Oil Seal

420630152

$15.64

12

Oil Seal

420950089

$17.88

13

Needle Bushing

420232482

$17.88

14

Ball Bearing

420632295

$44.00

15

Torx Screw M6 X 16

420241529

$1.79

16

Ball Bearing

420932822

$28.33

17

Ball Bearing 6204

420932433

$21.61

18

Oil Seal

420250130

$16.39

19

Ball Bearing 6204

420932433

$21.61

20

Needle Bushing

420232085

$35.04

21

Needle Bushing

420832240

$19.37

22

Oil Seal

420250450

$15.64

23

Oil Seal

420650315

$11.04

24

Torx Flange Screw M8 X 25

420440372

$3.88

25

Sealing Ring

420950141

$1.88

26

Torx Flange Screw M6 X 45

420440324

$0.93

27

Torx Flange Screw M8 X 65

420440402

$7.01

28

Torx Flange Screw M6 X 85

420641228

$7.01

29

Torx Flange Screw M6 X 16

420440162

$3.01

30

Torx Flange Screw M8 X 65

420440402

$7.01

31

Torx Flange Screw M6 X 45

420440324

$0.93

32

Seal Washer

420230415

$1.72

33

Torx Flange Screw M6 X 35

420440274

$0.96

34>35

Electric Starter | Includes 37 to 38

420684283

$252.69

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Position Switch

420241856

$34.30

37

Wiring Harness

420265831

$47.73

38

Torx Flange Screw M6 X 16

420440162

$3.01

39

Cover Sheet

420251290

$10.30

40

Starter Drive Ass'y

420294811

$251.46

41

Spring

420938204

$6.07

42

Washer 5.3

420927574

$1.79

43

Reduction Cover Gear

420610891

$19.37

44

Hex. Screw M6 X 25

420240034

$1.79

45

Retaining Plate

420251491

$6.16

46

Connector Bracket

420260590

$11.33

47

Blind Rivet

420243010

$5.10

48

Gasket Set ( Engine)

420685125

$202.96

49

Longblock 427

390427412

$3,779.99

49

Long Block 427 | 6X6 T3

420042712

$3,779.99
