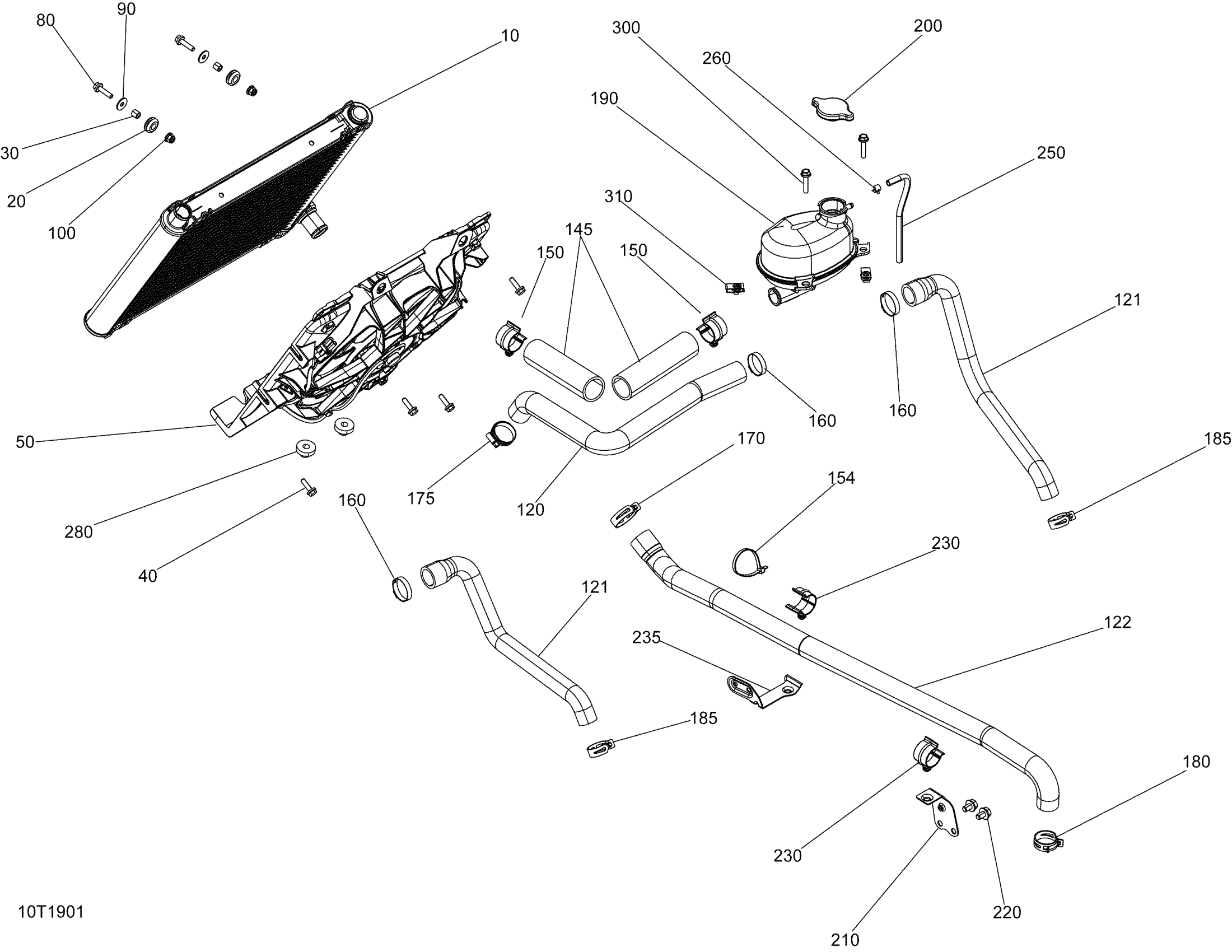

Can-Am Outlander MAX 6X6 - 450 EFI - T3, 2019 Cooling - 450 EFI Diagram

#

Description
Price

10

Radiator

709200286

$444.00

20

Grommet

709000582

$4.25

30

Bushing

293900105

$6.07

40

Hex. Flange Screw M6 X 20

207662034

$2.00

50

Fan Ass'y

709200563

$223.10

80

Hex. Flange Screw M6 X 25

207662534

$2.00

90

Flat Washer

250200082

$0.40

100

Flange Elastic Nut M6

233261434

$4.15

120

Radiator Inlet Hose

709200278

$32.06

121

Coolant Hose

709200893

$24.60

122

Engine Outlet Hose | Engine 450

709200636

$23.85

145

Tubing 35 MM 1000MM Long

219704428

$9.84

150

Retainer

275500590

$8.24

154

Tie Wrap 368 mm

293750008

$0.97

160

Gear Clamp

509000162

$4.90

170

Norma Spring Clamp

293650166

$4.15

175

Norma Gear Clamp

293650098

$4.15

180

Norma Spring Clamp

293650108

$3.88

185

Norma Spring Clamp

293650109

$3.88

190

Coolant Tank

709200297

$49.97

200

Radiator Pressure Cap

709200207

$21.61

210

Hose Support

709200206

$8.24

220

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.06

230

Retainer

275500526

$4.28

235

Hose Support

709200641

$8.24

250

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

260

Spring Clamp

414554800

$0.81

280

Grommet

709200285

$8.13

300

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

310

Panel Nut M6 X 1.0

250100198

$1.99
