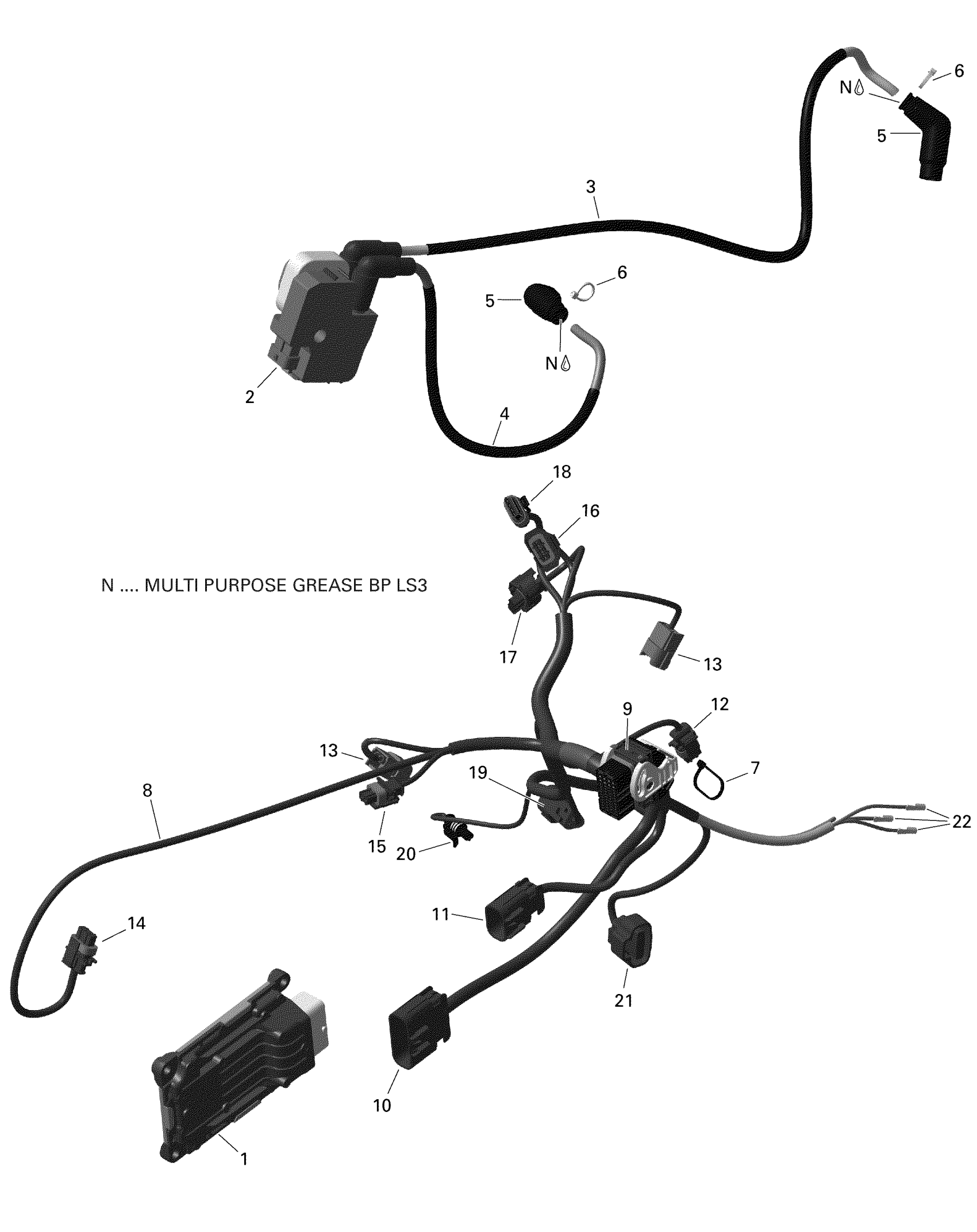

Can-Am Outlander 650 EFI - STD - 2022 Rotax - Engine Harness And Electronic Module - V1 Diagram

#

Description
Price

1

Electronic Box

420666283

$749.99

1

Electronic Box

420666283

$749.99

1

Electronic Box

420666283

$749.99

2>2A

Ignition Coil

278001546

$158.99

2A

Housing

710000568

$11.12

3

Spark Plug Cable, 600 mm, PTO SAE | Except International

420464162

$58.49

4>

Spark Plug Cable, 315 mm, MAG SAE | Except International

420464152

$74.99

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Tie Wrap 94 mm | 4X4

293750001

$1.03

8>23

Engine Wiring Harness | Except CARB

420464336

$429.99

8>23

Wiring Harness

420264794

$549.99

9

Not Available As Spare Parts

XXX

Unavailable

10

Housing

710001227

$12.71

11

Housing

710001927

$8.79

12

Male Housing, 2 Circuits

278001005

$19.49

13

Not Available As Spare Parts

XXX

Unavailable

14

Male Housing, 3 Circuits

278000997

$19.49

15

Male Housing, 2 Circuits

278001005

$19.49

16

Housing Connector, 3 Circuits

278001829

$21.99

17

Male Connector

515176410

$51.49

18

Not Available As Spare Parts

XXX

Unavailable

19

Male Housing

278002378

$13.99

20

Male Housing, 1 Circuit

278001012

$16.86

21

Male Housing, 4 Circuits

710000329

$15.36

22

Female Terminal | DS 650 X

278001009

$3.19

22

Insulated Sheath

278001007

$3.58
