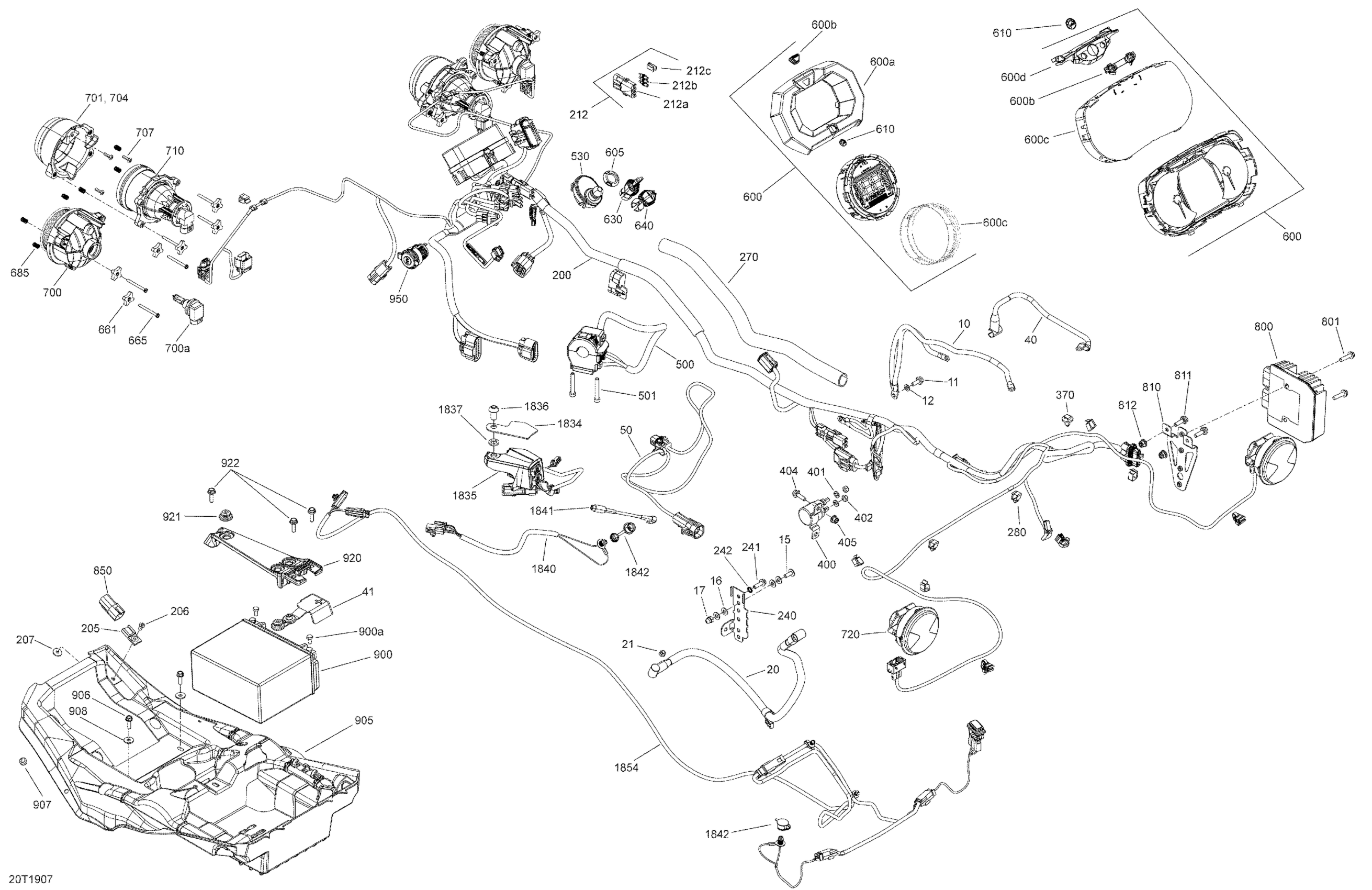

Can-Am Outlander MAX 650 EFI - 2019 Electrical - 650 EFI - Packages STD, DPS & XMR - Without Winch Diagram

Ground Cable

710004382

$19.99

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Lock Washer Helical M6

234161601

$1.15

Torx Head Screw M6 X 16

250000717

$2.11

Flat Washer

224061121

$0.53

Domed Nut M6

232361493

$2.11

Positive Cable

710004377

$27.99

Elastic Stop Nut M6

232561414

$0.55

Positive Cable

710004376

$48.99

Battery Cable Cap

710006729

$7.20

Extension Cable 02 Sensor

710005819

$21.99

Main Wiring Harness

710007175

$989.99

DPS Connector Cap | Not Shown

710005760

$16.86

Clip

270000141

$11.49

Pop Rivet 3/16"

390402300

$0.75

Washer | DS 650 X

391301600

$0.48

Connector Ass'y | STD / Includes 7 to 10

710000917

$12.71

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

Wire Seal

278000216

$3.19

Clip

710000992

$4.29

Connector Bracket

710004118

$5.40

Hex. Flange Screw M6 X 20

210262040

$2.11

External Serrated Lock Washer 6 mm

234461608

$1.15

Protective Tubing

710003260

$33.99

Clip

414227300

$1.67

Mount Dart

293730040

$1.04

Starter Relay

710007777

$48.49

Lock Washer Helical M6

234161601

$1.15

Elastic Stop Nut M6

232561414

$0.55

Hex. Flange Screw M6 X 20

207662054

$1.01

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Multi-Function Handle | Except Model Europe, Except Model STD

710005070

$69.99

Multi-Function Handle | Except Model Europe, Except T3

710005072

$67.99

Socket Head Screw M5 X 35

205053588

$1.90

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

Speedometer Ass'y | Includes 600 to 600c

710005599

$329.99

Trim Ring

710002092

$8.99

Button

710001473

$13.71

Lens

415129320

$24.49

Safety Nut (DESS Switch)

278002963

$3.28

BRP Logo13 mm

704904615

$13.49

Green Key RFID | Except Model Europe, Except T3

710005232

$63.49

Grey Key RFID | Except Model Europe, Except T3

710004964

$63.49

Handle

572106600

$10.33

Hex. Screw K40 X 45

250000718

$2.11

Spring

517168600

$7.39

Low Beam | Includes 54 to 55

710006177

$119.99

Bulb 12V 55W

715900141

$41.49

RH High Front Housing

710002291

$28.99

LH High Front Housing

710002292

$22.49

Phillips Screw K40 X 16

250000723

$0.98

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

Halogen Bulb

415129249

$41.49

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

Bulb

520000758

$9.10

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

Voltage Regulator

710005842

$189.99

Hex. Flange Forming Screw M6 X 25

210262550

$1.90

Rectifier Support

710001752

$9.29

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Connector Plug

710004904

$8.79

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

Battery Bolt Kit

250000282

$7.29

Battery Support

710008370

$50.99

Hexagonal Head Screw

210262050

$2.11

Rubber Bumper

293830005

$8.09

Stainless Steel Flat Washer

234062670

$2.11

Retaining Plate

710009129

$8.69

Stopper Rubber

705014429

$5.95

Hex. Flange Screw M6 X 20

207662054

$1.01

DC Outlet

710001248

$37.99

Top Plate

715004008

$21.99

Multifonction Housing Ass'y

710004990

$154.99

Screw M10 X1.25 X 20 BHCS S.Grip

710005908

$9.69

Washer

503192496

$0.77

Heated Visor Wiring Harness

710006105

$26.99

Extension

515175851

$11.12

Cap

572103300

$10.49

Harness

710006110

$37.99
