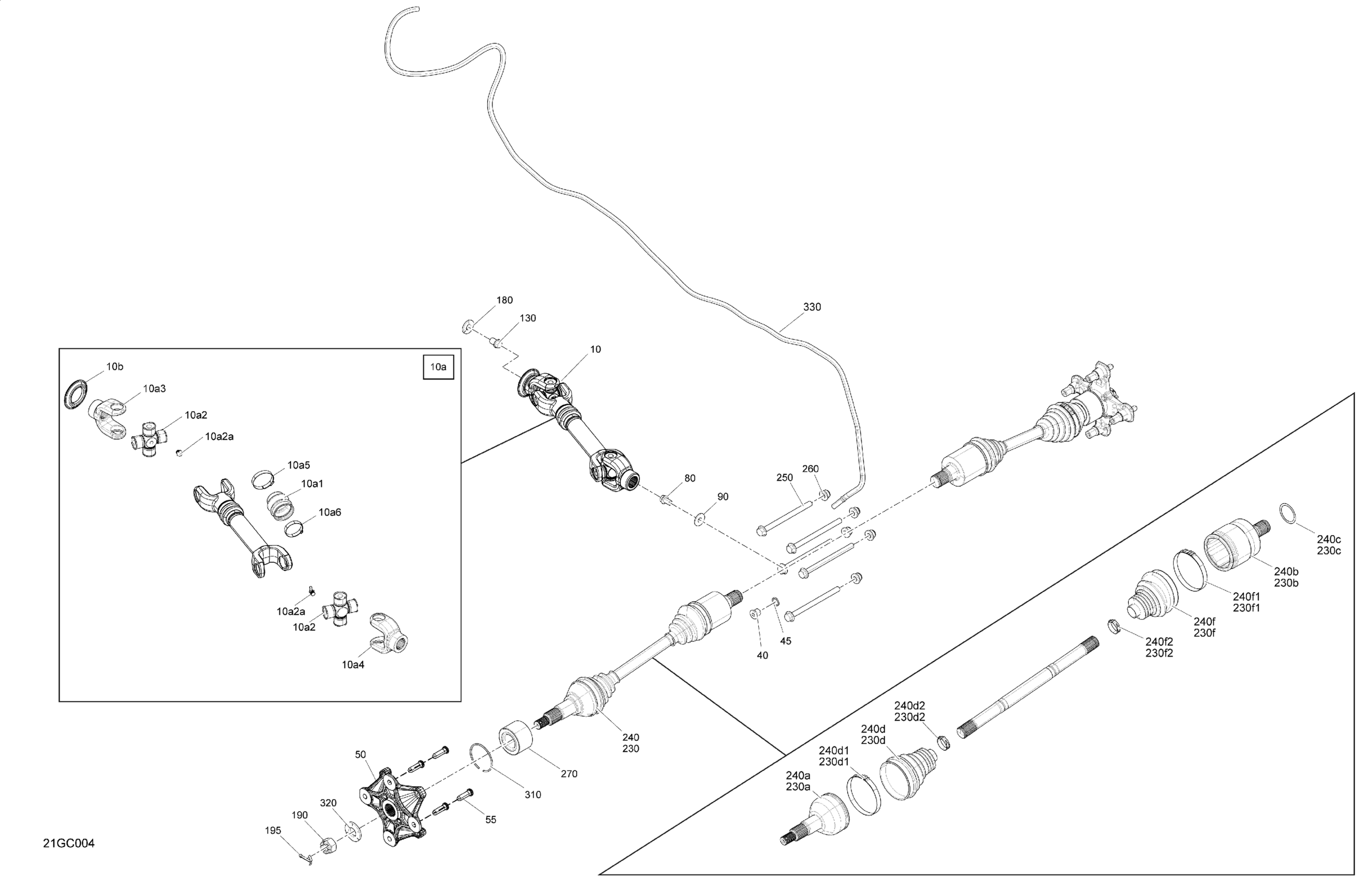

Can-Am Outlander MAX 570 EFI - DPS - (5NPD) - CE, 2023 Drive - Rear - Common Parts Diagram

#

Description
Price

10

Shaft Ass'y Kit | Includes 54 to 54h

703500987

$412.99

10a

Shaft Ass'y Kit | Includes 54 to 54h

703500987

$412.99

10a1

Rubber Boot

715900118

$14.30

10a2

Universal Joint

715900326

$68.99

10a2a

Grease Fitting | T3

715900295

$5.24

10a3

Yoke

715900438

$24.99

10a4

Yoke | T3

715900500

$24.99

10a5

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

10a6

Oetiker Gear Clamp 36.1MM

509000045

$8.29

10b

Protector

705501123

$7.55

40

Fill Level Plug | 4X4

705500504

$10.01

45

Copper Washer | 4X4

705500506

$0.45

50

Wheel Hub

705503257

$101.49

55

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

80

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

90

Flat Washer M10 | 4X4

250200014

$1.49

130

Hex Flange Screw M12 X 16

250001039

$2.11

180

Conical Spring Washer M12

250200005

$3.27

190

Hex. Flange Castellated Nut M18

232291413

$7.98

195

Cotter Pin

250400071

$2.11

230

RH Half Shaft Ass'y

705501897

$243.99

230a

CV Joint

705401344

$259.49

230b

Plunging Joint

715900304

$121.49

230c

Circlip

705501781

$6.50

230d

Boot Kit, Wheel Side

705401345

$42.49

230d1

Oetiker Clamp

715900282

$5.29

230d2

Oetiker Clamp, Small

715900283

$5.29

230f

Boot Kit, Differential Side

705401346

$42.49

230f1

Oetiker Clamp, Large

715900284

$5.29

230f2

Oetiker Clamp, Small

715900261

$5.29

240

LH Half Shaft Ass'y

705501898

$243.99

240a

CV Joint

705401344

$259.49

240b

Plunging Joint

715900304

$121.49

240c

Circlip

705501781

$6.50

240d

Boot Kit, Wheel Side

705401345

$42.49

240d1

Oetiker Clamp

715900282

$5.29

240d2

Oetiker Clamp, Small

715900283

$5.29

240f

Boot Kit, Differential Side

705401346

$42.49

240f1

Oetiker Clamp, Large

715900284

$5.29

240f2

Oetiker Clamp, Small

715900261

$5.29

250

Hex. Flange Screw M10 X 135

250001041

$5.59

260

Hex. Flange Elastic Nut M10

233201436

$2.11

270

Ball Bearing

293350150

$52.99

310

Circlip

293370019

$4.68

320

Conical Spring Washer M18

250200171

$7.65

330

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49
