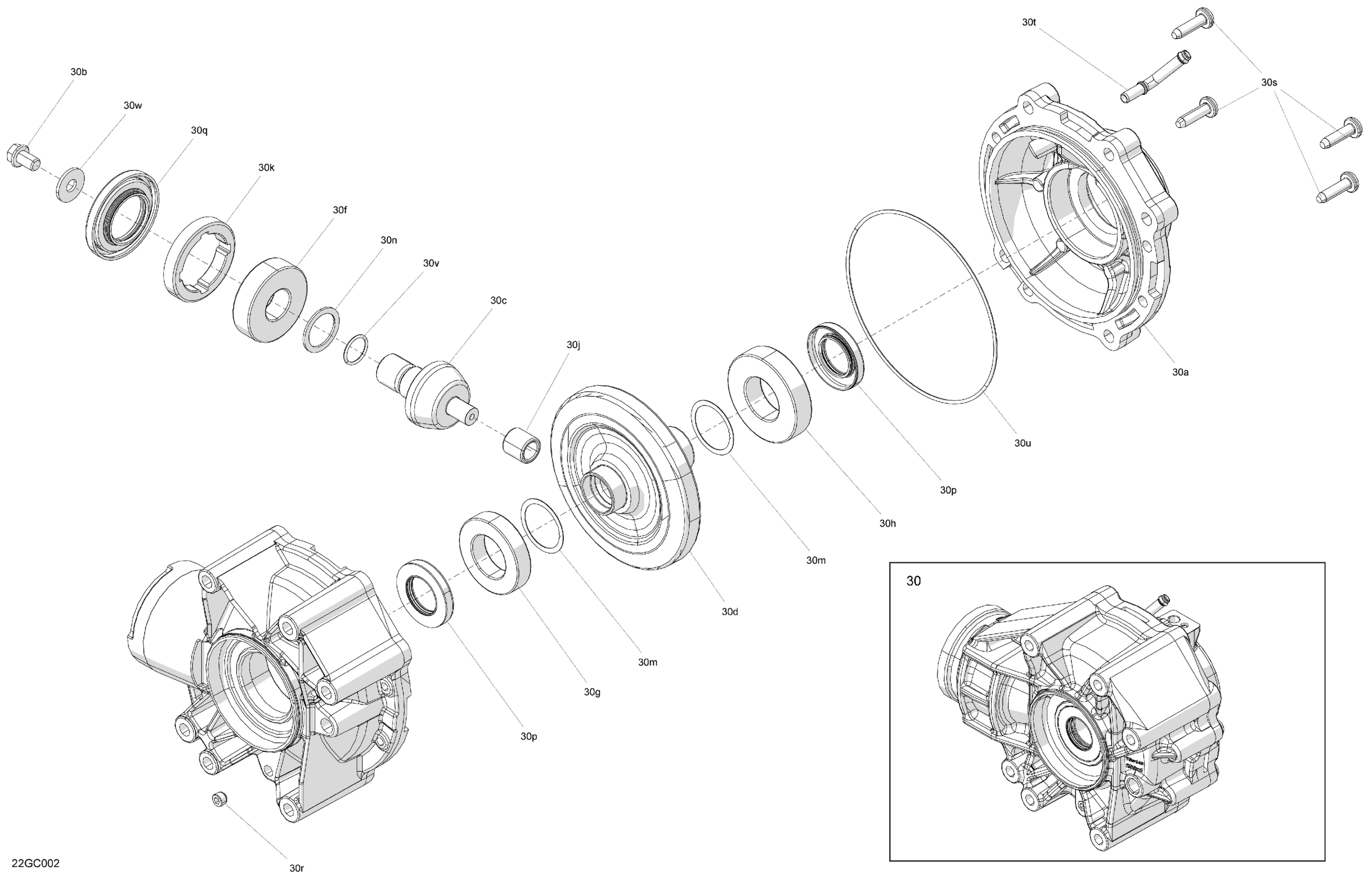

Can-Am Outlander MAX 570 EFI - DPS - (5NPD) - CE, 2023 Drive - Final Drive Unit Diagram

Description

Price

Final Drive Unit | Includes 30 to 30u

703501019

$904.58

30a

Rear Cover

705502734

$175.35

30b

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$1.74

30c

Pinion 10 Teeth

705502053

$198.43

30d

Gear 36 Teeth

705502682

$175.35

30f

Ball Bearing

705502736

$30.39

30g

Ball Bearing

705502737

$46.07

30h

Ball Bearing

705502738

$56.52

30j

Needle Bearing

705502058

$47.49

30k

Nut

705502059

$32.28

30m

Differential Shim 0.02 mm

705502060

$13.83

30n

Pinion Gear Shim 1.67 mm

705502061

$16.12

30p

Oil Seal

705501556

$17.66

30q

Oil Seal

705502062

$23.05

30r

Plug Drain

705501724

$5.98

30s

Screw

705502063

$3.08

30t

Breather Tube

705501584

$13.86

30u

Seal

705502064

$8.31

30v

O-Ring

705502065

$5.98

30w

Flat Washer M10 | 4X4

250200014

$1.17
