Description

Price

20

Hex. Flange Screw M6 X 20

207662054

$1.01

30

Flange Elastic Nut M6

233261434

$4.44

70

LH Structural Footboard

705011540

$119.99

70a

Square Nut M6

232862412

$1.49

80

RH Structural Footboard

705011542

$109.99

80a

Square Nut M6

232862412

$1.49

90

Carriage Bolt M6 X 35

207763554

$2.11

100

Flat Washer 6 mm

234062410

$0.77

110

LH Footrest Max

705003525

$189.99

120

RH Footrest Max | Engine 450 MAX Model

705007724

$104.99

130

Hex. Flange Screw M6 X 20

207662054

$1.01

135

Flat Washer

224061201

$1.37

140

Panel Nut M6 X 1.0

250100198

$2.11

320

Black, Rear Luggage Rack

715005986

$232.99

330

Torx Truss Screw M8 X 50

250000761

$7.51

340

Elastic Flange Nut M8

233281464

$1.01

350

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

475

Rubber Pad

293830163

$10.49

480a

Storage Cover | Model-Europe International

715004412

$219.99

480b

Storage Cover | Model-Europe International

715004412

$219.99

480c

LH Box Rear Latch

705007448

$11.99

480d

RH Box Rear Latch

705007921

$13.49

480g

Retaining Rod

705007531

$78.99

480h

Panel Nut M6 X 1.0

250100198

$2.11

480j

CAP - Call your local BRP dealership

414859400

Unavailable

485

Heat Deflector Sheet

705007487

$5.09

487

Panel Nut M6 X 1.0

250100198

$2.11

525

Rear Facia | Except Model- Europe

705005576

$45.99

530

Red, Reflector

705016982

$14.49

535

Stopper Rubber

705014429

$5.95

540

Flange Elastic Nut M5

233251434

$2.00

575a

Hex Flange Screw M6 X 25

250000841

$7.51

575b

Stainless Steel Flat Washer

234062670

$2.11

575c

Tuflok Plastic Rivet

293150230

$1.47

580

Torx Truss Screw M6 X 25

250000807

$2.11

590

Torx Screw M6 X 20

250000722

$1.68

770

Tuflok Plastic Rivet

293150230

$1.47

930

LH Extension Panel

715001897

$27.99

940

RH Extension Panel

705004348

$26.99

960

Heat Shield

705006870

$5.29

970

Heat Shield

705006871

$5.29

1010

Seat Holder

705007948

$58.99

1080

Tool Kit

704700168

$40.99

1080c

Socket Wrench 14/16MM

529000085

$6.55

1080g

Screw Driver

529000021

$3.29

1110

Adjustment Wrench

529000035

$2.09

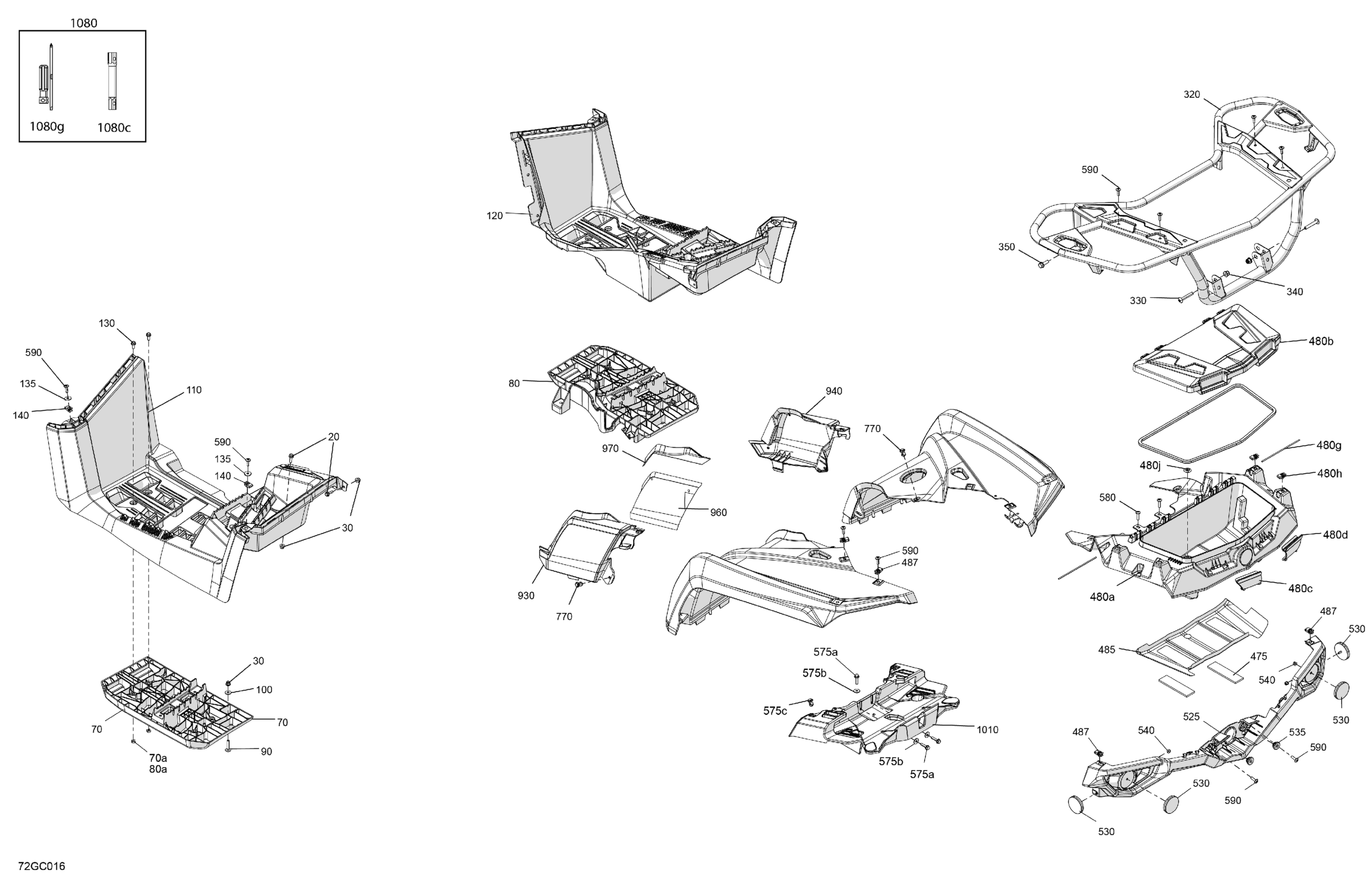

Can-Am Outlander MAX 450 EFI - STD - 2023 Body - Rear Section Diagram

Hex. Flange Screw M6 X 20

Flange Elastic Nut M6

LH Structural Footboard

Square Nut M6

RH Structural Footboard

Square Nut M6

Carriage Bolt M6 X 35

Flat Washer 6 mm

LH Footrest Max

RH Footrest Max | Engine 450 MAX Model

Hex. Flange Screw M6 X 20

Flat Washer

Panel Nut M6 X 1.0

Black, Rear Luggage Rack

Torx Truss Screw M8 X 50

Elastic Flange Nut M8

Hex Flange Screw M8 X 25 S.Grip

Rubber Pad

Storage Cover | Model-Europe International

Storage Cover | Model-Europe International

LH Box Rear Latch

RH Box Rear Latch

Retaining Rod

Panel Nut M6 X 1.0

CAP - Call your local BRP dealership

Heat Deflector Sheet

Panel Nut M6 X 1.0

Rear Facia | Except Model- Europe

Red, Reflector

Stopper Rubber

Flange Elastic Nut M5

Hex Flange Screw M6 X 25

Stainless Steel Flat Washer

Tuflok Plastic Rivet

Torx Truss Screw M6 X 25

Torx Screw M6 X 20

Tuflok Plastic Rivet

LH Extension Panel

RH Extension Panel

Heat Shield

Heat Shield

Seat Holder

Tool Kit

Socket Wrench 14/16MM

Screw Driver

Adjustment Wrench
