07- Body - Front Section

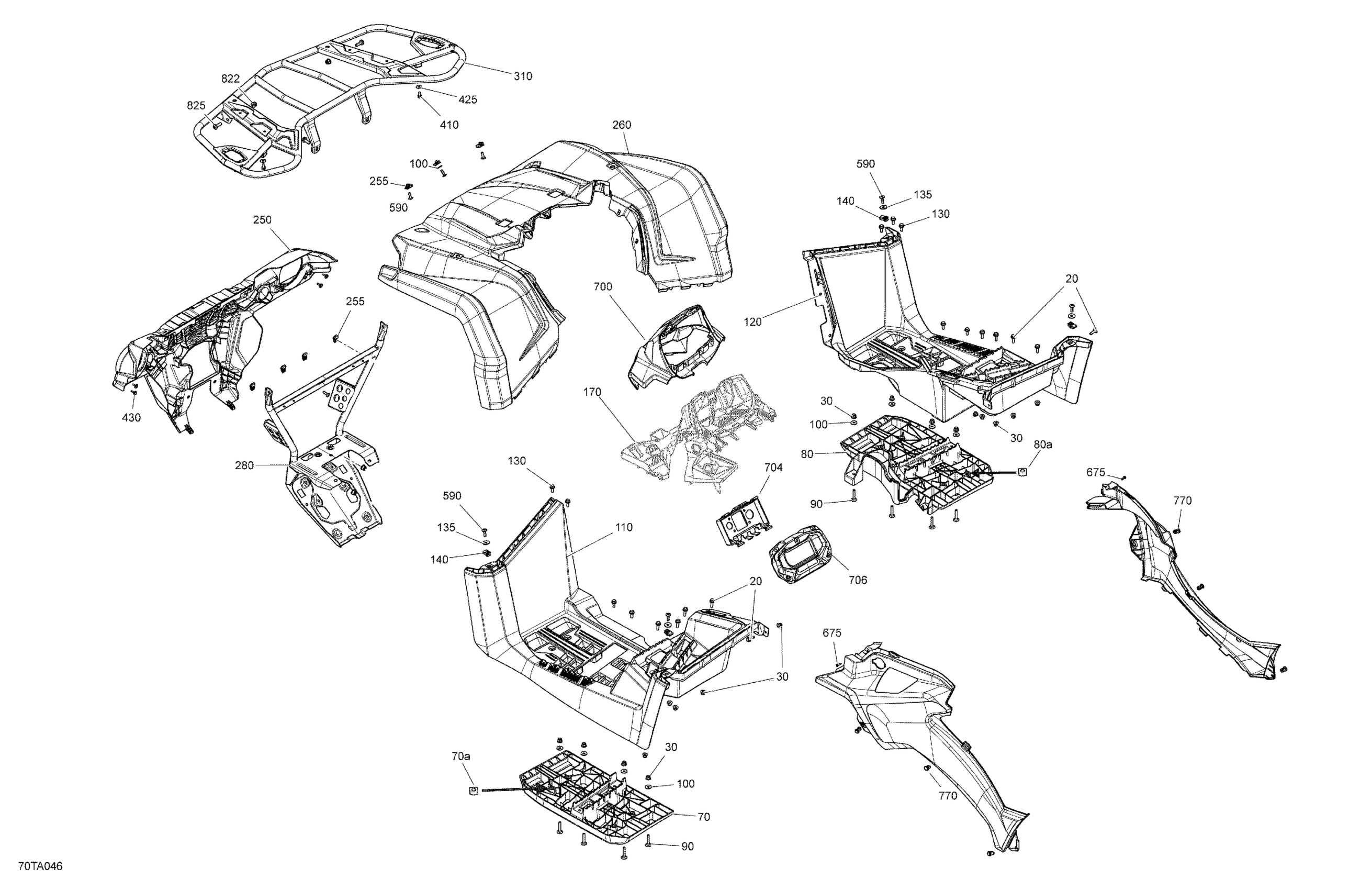

Can-Am 004 - Outlander MAX 450 EFI - STD_DPS - North America, 2021 07- Body - Front Section Diagram
#
20
Hex. Flange Screw M6 X 20
207662054
Unavailable
30
Flange Elastic Nut M6
233261434
Unavailable
70
LH Structural Footboard
705011540
Unavailable
70a
Square Nut M6
232862412
Unavailable
80
RH Structural Footboard
705011542
Unavailable
80a
Square Nut M6
232862412
Unavailable
90
Carriage Bolt M6 X 35
207763554
Unavailable
100
Flat Washer 6 mm
234062410
Unavailable
110
LH Footrest Max
705003525
Unavailable
120
RH Footrest Max | Engine 450 MAX Model
705007724
Unavailable
130
Hex. Flange Screw M6 X 20
207662054
Unavailable
135
Flat Washer
224061201
Unavailable
140
Panel Nut M6 X 1.0
250100198
Unavailable
170
Console Support Ass'y | Model-Europe/International
715006101
Unavailable
250
Front Facia | Model-North America, International
705009334
Unavailable
255
Panel Nut M6 X 1.0
250100198
Unavailable
260
Viper Red, LH Front Fender | Model Viper Red
715006846
Unavailable
260
Tundra Green, Front Fender Kit | Model Tundra Green
715007937
Unavailable
260
Granite Grey, Front Fender Kit | Model Granite Grey
715007984
Unavailable
280
Front Frame
705017337
Unavailable
310
Black, Front Luggage Rack
705006887
Unavailable
410
Hex. Flange Screw M6 X 12
210261250
Unavailable
425
Stainless Steel Flat Washer
234062670
Unavailable
430
Screw M4 X 16
250000725
Unavailable
590
Torx Screw M6 X 20
250000722
Unavailable
675
Phillips Screw K40 X 16
250000723
Unavailable
700
Gauge Support
705013984
Unavailable
703
Extruded Panel Nut M4 X 0.7
250100143
Unavailable
704
Interior Gauge Support
705015548
Unavailable
706
Gauge Trim
705015547
Unavailable
708
Torx Head Screw M4 X 16
250000797
Unavailable
770
Tuflok Plastic Rivet
293150230
Unavailable
822
Elastic Flange Nut M8
233281464
Unavailable
825
Pan Torx Screw M8 X 25
250000898
Unavailable
