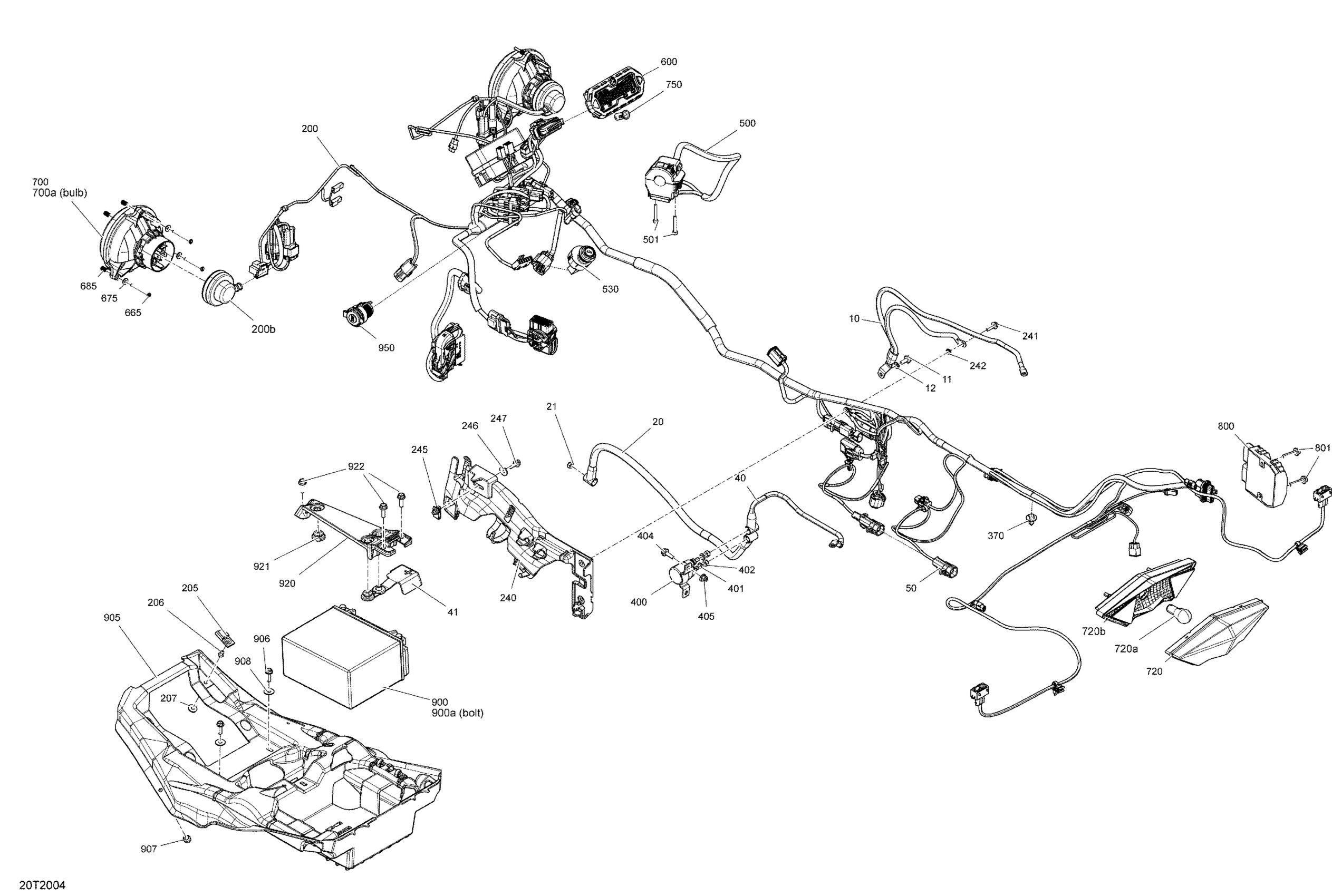

Can-Am Outlander MAX 450 EFI - 2020 Electrical System Diagram

#

Description
Price

10

Ground Cable

710004380

$19.99

11

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

12

Lock Washer Helical M6

234161601

$1.15

20

Positive Cable | Engine 450

710004381

$19.99

21

Elastic Stop Nut M6

232561414

$0.55

40

Positive Cable

710004376

$48.99

41

Battery Cable Cap

710006729

$7.20

50

Extension Cable 02 Sensor

710005819

$21.99

200

Electric Harness

710006172

$989.99

200

Harness Ass'y

710006173

$979.99

200a

Fuse Shematic Decal

710003976

$0.01

200b

Headlamp Protector Cap

710004020

$11.49

205

Clip

270000141

$11.49

206

Pop Rivet 3/16"

390402300

$0.75

207

Washer | DS 650 X

391301600

$0.48

240

Cable Bracket

707001280

$13.49

241

Hex. Flange Screw M6 X 20

210262040

$2.11

242

External Serrated Lock Washer 6 mm

234461608

$1.15

245

Panel Nut M6 X 1.0

250100198

$2.11

246

Flat Washer 6 mm

234062410

$0.77

247

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

370

Mount Dart

293730040

$1.04

400

Starter Relay

710007777

$48.49

401

Lock Washer Helical M6

234161601

$1.15

402

Elastic Stop Nut M6

232561414

$0.55

404

Hex. Flange Screw M6 X 20

207662054

$1.01

405

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

500

Multi-Function Handle | Except Model Europe, Except T3

710005072

$67.99

501

Socket Head Screw M5 X 35

205053588

$1.90

530

Ignition Switch | Except Model Pro, T3

710007864

$85.99

600

Speedometer | Includes 600 to 600b

710005553

$339.99

665

Hex. Screw K40 X 45

250000718

$2.11

675

Flat Washer

517225900

$0.18

685

Spring

517168600

$7.39

700

Low Beam

710003900

$114.99

700a

Bulb, 12V 35/35W

710000871

$34.99

720

Tail Light Housing Ass'y | Includes 29 to 31

710001203

$74.99

720a

Bulb

520000758

$9.10

720b

Male Housing, 3 Circuits

515175494

$16.18

750

Pilot Lamp Cap

710003910

$4.29

800

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

800

Voltage Regulator | Package-DPS, Model-Europe

710005569

$103.99

801

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

900a

Battery Bolt Kit

250000282

$7.29

905

Battery Support

710008370

$50.99

906

Hexagonal Head Screw

210262050

$2.11

907

Rubber Bumper

293830005

$8.09

908

Stainless Steel Flat Washer

234062670

$2.11

920

Retaining Plate

710009129

$8.69

921

Stopper Rubber

705014429

$5.95

922

Hex. Flange Screw M6 X 20

207662054

$1.01

950

DC Outlet

710001248

$37.99
