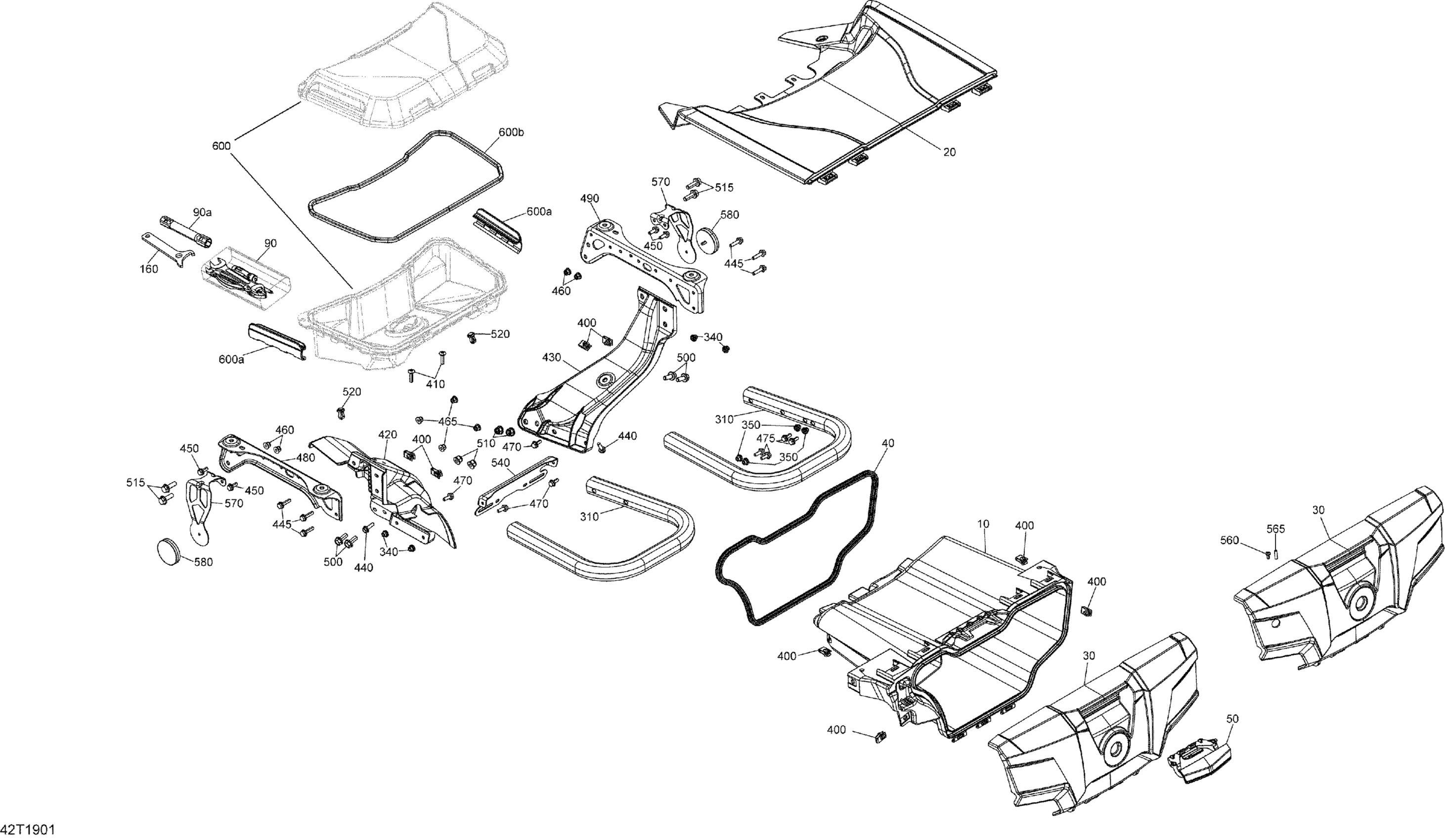

Can-Am Outlander MAX 1000 EFI - T3, 2019 Rear Cargo Box - 1000R EFI Diagram

#

Description
Price

10

Rear Storage Box

708300674

$93.99

20

Rear Storage Box Cover

715005835

$55.99

30

Rear Panel | Europe

708300511

$55.99

35

Heat Shield

707002102

$11.99

36

Heat Shield

707002294

$10.49

37

Heat Shield

707002295

$10.49

38

Heat Shield

707002296

$10.49

39

Heat Shield

707002297

$10.49

40a

Was 293200163 Neoprene Seal

219704369

$29.99

50

Handle Latch

708201250

$14.49

90

Tool Kit

704700168

$40.99

90a

Socket Wrench 14/16MM

529000085

$6.55

160

Adjustment Wrench

529000035

$2.09

310

Rear Bumper Ass'y | Model- Europe

715007915

$46.49

340

Insert Half Hex Body M6 x 1.0

250100199

$3.19

350

Insert Half Hex Body M6 x 1.0

250100199

$3.19

400

Panel Nut M6 X 1.0

250100198

$2.11

410

Torx Truss Screw M6 X 25

250000807

$2.11

420

LH Cargo Support

705006997

$55.99

430

RH Cargo Support

705006998

$55.99

440

Hex. Flange Screw M6 X 20

207662044

$2.00

445

Hex. Flange Screw M6 X 25

207662544

$0.64

465

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

470

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.90

475

Hex. Flange Screw M6 X 16

207661634

$2.11

480

LH Support

705004563

$34.99

490

RH Support

705004564

$34.99

500

Hex. Flange Screw M8 X 20

207682044

$1.15

510

Hex. Flange Elastic Nut M8

233281414

$1.47

515

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

520

Tuflok Plastic Rivet

293150230

$1.47

540

Plate Support

705004806

$13.99

560

Socket Head Screw M5 X 10

205951046

$2.43

565

Socket Set Screw M5 X 20 | Europe

206252044

$1.48

600

Box Ass'y

708200408

$82.99

600a

Clip | Outlander Max

269501945

$15.89

600b

Was 715900411 Neoprene Seal | Outlander MAX

219704452

$38.99
