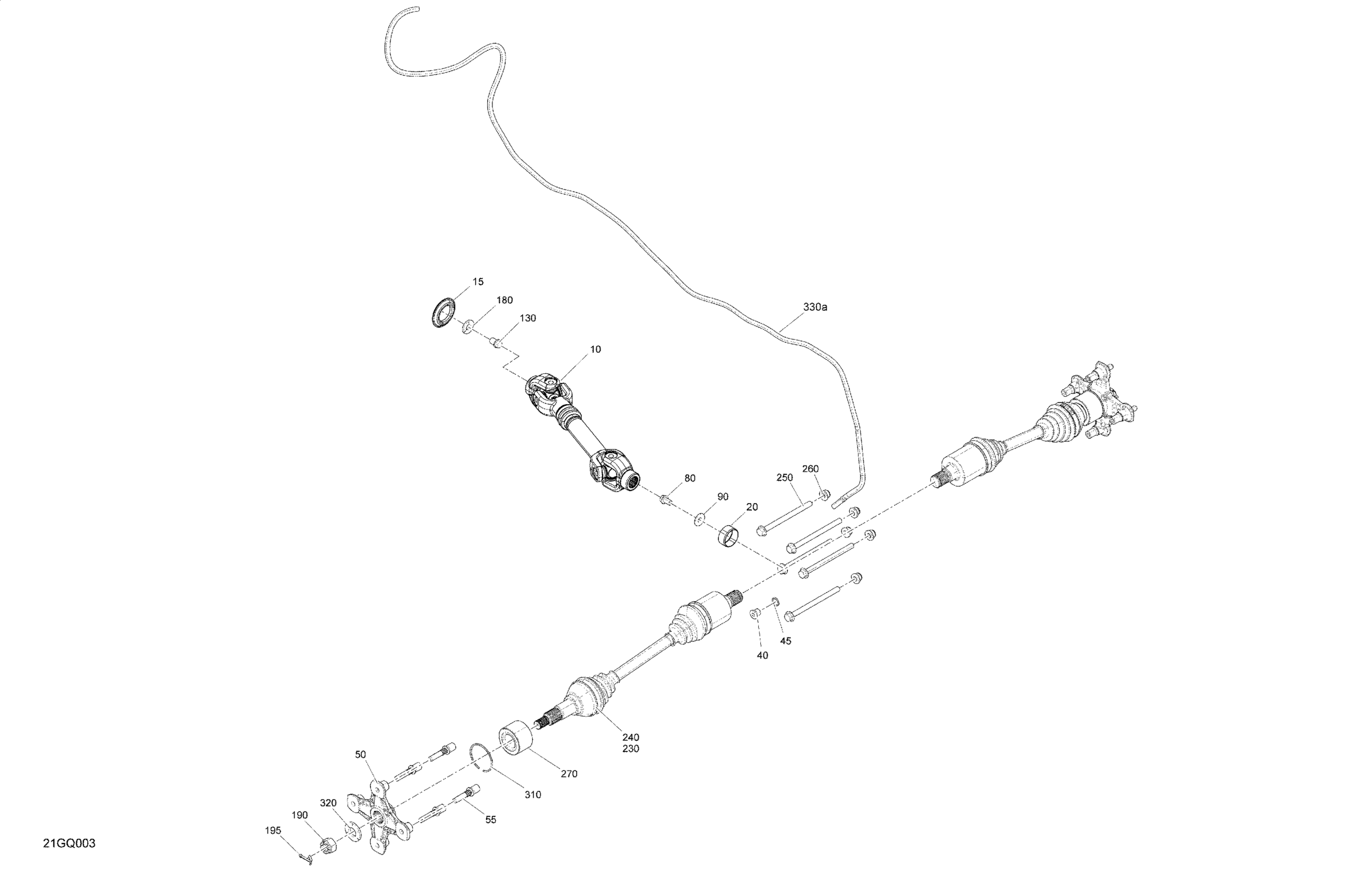

Can-Am 004 - Outlander L - 570 EFI - PRO Package 0003XHA00 0003XHB00 04- Drive - Rear - Common Parts - Europe Diagram

#

Description

Price

10

Shaft Ass'y Kit | Incldues 1 to 5

703500986

Unavailable

15

Protector

705501123

Unavailable

20

Wear Ring | 4X4

705400036

Unavailable

40

Fill Level Plug | 4X4

705500504

Unavailable

45

Copper Washer | 4X4

705500506

Unavailable

50

Wheel Hub

705501900

Unavailable

55

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

Unavailable

80

Hex. Flange Screw M10 X 16 S.GRIP

250001044

Unavailable

90

Flat Washer M10 | 4X4

250200014

Unavailable

130

Hex Flange Screw M12 X 16

250001039

Unavailable

180

Conical Spring Washer M12

250200005

Unavailable

190

Hex. Flange Castellated Nut M18

232291413

Unavailable

195

Cotter Pin

250400071

Unavailable

230

RH Half Shaft Ass'y

705501897

Unavailable

240

LH Half Shaft Ass'y

705501898

Unavailable

250

Hex. Flange Screw M10 X 135

250001041

Unavailable

260

Hex. Flange Elastic Nut M10

233201436

Unavailable

270

Ball Bearing

293350150

Unavailable

310

Circlip

293370019

Unavailable

320

Conical Spring Washer M18

250200171

Unavailable

330a

Polyurethane Hose 10000Mm Long

219704410

Unavailable
