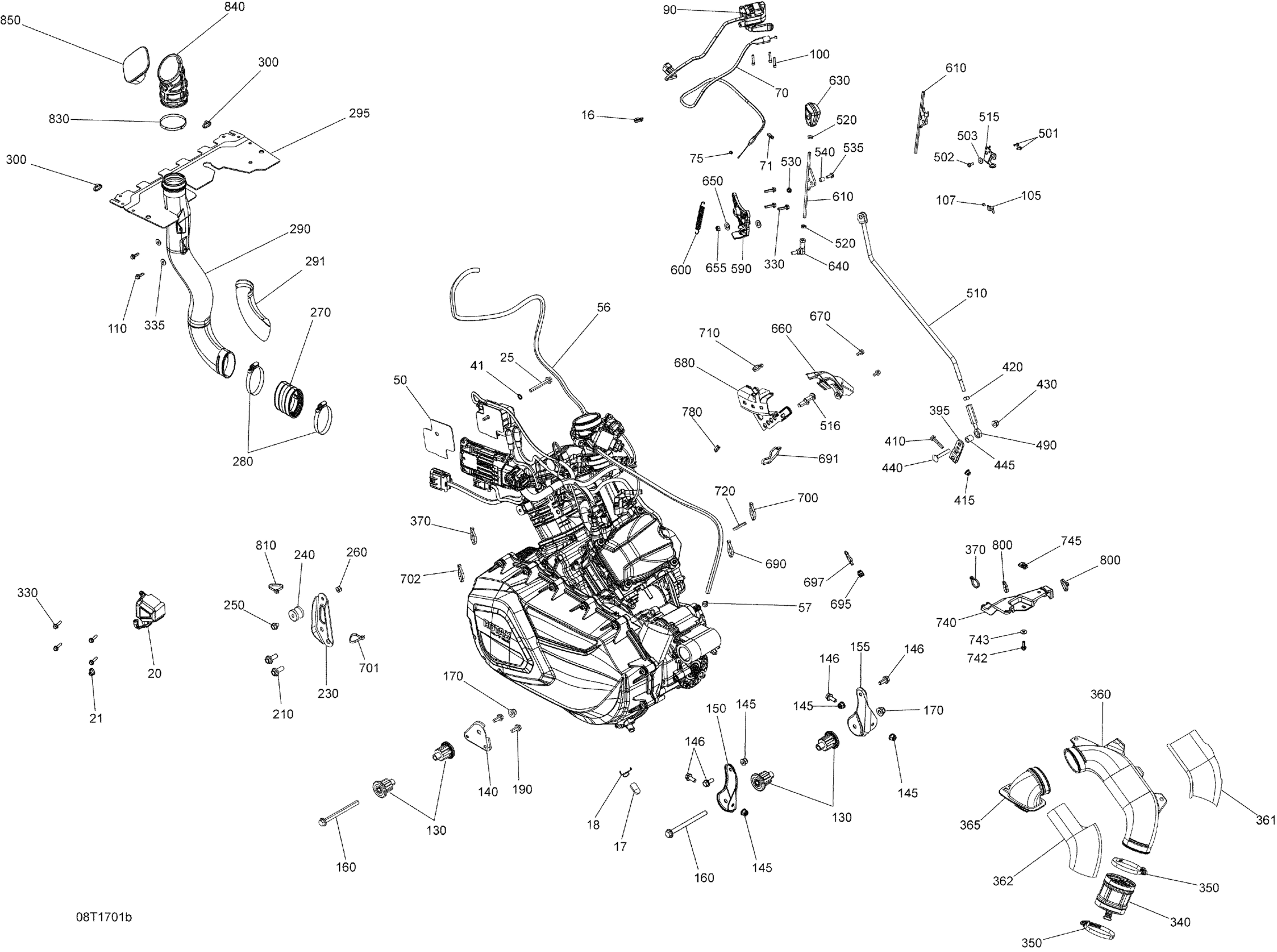

Can-Am Outlander L - 570 EFI - PRO Package 0003XHA00 0003XHB00 Engine And Engine Support - 570 EFI Except XMR Diagram

#

Description
Price

16

Tie-Rap 180 mm

414115200

$0.11

17

Plug

707001185

$1.15

18

Retainer Clip

707800506

$12.63

20

Cover

707000945

$6.67

21

Tie Wrap 142 mm

293750002

$1.25

25

Hex. Flange Screw M6 X 50

207665044

$4.12

41

External Serrated Lock Washer 6 mm

234461608

$1.15

50

Insulator Pad

710000073

$11.12

56

Polyurethane Hose 10000Mm Long

219704410

$56.99

57

Clamp, Oetiker

293650195

$1.09

70

Throttle Cable

707000955

$13.24

71

Tie-Rap 180 mm

414115200

$0.11

75

Cable Guide

707000434

$11.60

90

Throttle Handle | 4X4

707000595

$214.99

100

Socket Head Screw M5 X 25

205052588

$1.90

105

SPEED LIMITER - Call your local BRP dealership | Engine 570-850-1000R , Europe Model

707001927

Unavailable

107

TORX SCREW M4 X 8 - Call your local BRP dealership | Europe

250000332

Unavailable

110

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

130

Vibration Damper

707001169

$42.99

140

Engine Support

707003319

$10.99

145

Hex. Elastic Flange Nut M8

233281416

$1.48

146

Hex. Flange Screw M8 X 20

207682046

$1.90

150

LH Rear Engine Support

707003325

$16.99

155

RH Rear Engine Bracket

707001194

$16.99

160

Hex. Flange Screw M10 X 125

230602546

$7.41

170

Hex. Flange Elastic Nut M10

233201436

$2.11

190

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

210

Hex. Flange Screw M10 X 25

207602544

$1.69

230

Upper Engine Bracket

707001256

$13.49

240

Rubber Isolator

707000949

$11.49

250

Flange Screw M8 x 10, Scotch Grip

207581046

$4.86

260

Hex. Elastic Stop Nut M8

232581414

$0.56

270

Flexibale Adaptor

707002585

$10.99

280

Norma Clamp

293650091

$11.12

290

CVT Air Inlet

707002067

$53.99

291

Not Available As Spare Part - Friction Washer

Unavailable

291

Not Available As Spare Part - Friction Washer

Unavailable

295

Upper Water Deflector

707001124

$22.49

300

Tie-Rap 180 mm

414115200

$0.11

330

Hex. Flange Screw M6 X 25

207562544

$1.69

335

Flat Washer M6, Stainless

234062600

$0.77

340

CVT Air Outlet Adaptor

707001168

$15.99

350

Norma Gear Clamp

293650118

$13.16

360

Air Outlet

706600019

$37.99

361

Heat Shield

707001205

$10.49

362

Heat Shield

707001206

$10.49

365

CVT Cooling Duct Out

706600400

$54.99

370

Tie-Rap 180 mm

414115200

$0.11

395

Lever

707000911

$20.49

410

Hex. Flange Screw M6 X 35

207663544

$0.90

415

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

420

Hex. Nut M8, LH Threads

250100144

$2.00

430

Hex. Flange Elastic Nut M8

233281414

$1.47

440

Carriage Bolt M8 X 50 | DS 650 X

207785044

$7.41

445

Bushing

293900106

$4.55

490

Ball Joint Ass'y | Includes 55 to 56

707000966

$36.99

501

Socket Head Screw M5 X 10

205951046

$2.43

502

Torx Screw K50 X 16

250000720

$1.69

503

Washer | DS 650 X

391301600

$0.48

510

Shifter Rod

707002085

$33.99

515

Fixing Plate | Europe

707001042

$39.99

516

Screw Socket M10 X 25 | Europe

205402556

$3.91

520

Hex. Jam Nut M8

232180600

$0.67

530

Hex. Flange Nut M6

233161414

$2.11

535

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

540

Bushing

293900019

$7.73

590

Lever Support

707003054

$6.67

600

Spring

707000577

$10.99

610

Shift Arm | Except Europe

707000840

$16.87

610

Shift Arm | Europe

707001003

$18.55

630

Lever Trim

707003211

$8.49

640

RH Ball Joint

707001959

$36.99

650

Washer

506151252

$3.17

655

Hex. Elastic Stop Nut M8

232581414

$0.56

660

Cover OPS

707000410

$13.24

670

Hex. Flange Screw M6 X 12

210261250

$1.90

680

Cable Support

707003053

$10.49

690

Tie-Rap 180 mm

414115200

$0.11

691

Tie-Rap 180 mm

414115200

$0.11

691

Tie-Rap 180 mm

414115200

$0.11

695

Tie-Rap Clip

710002896

$4.39

697

Tie-Rap 180 mm

414115200

$0.11

700

Tie-Rap 180 mm

414115200

$0.11

701

Tie-Rap 180 mm

414115200

$0.11

702

Tie-Rap 180 mm

414115200

$0.11

710

Tie-Rap 180 mm

414115200

$0.11

720

Tie Wrap 142 mm

293750002

$1.25

740

Air Outlet Support

707001262

$9.89

742

Hex. Flange Screw M6 X 20

207662044

$2.00

743

Flat Washer 6 mm

234062410

$0.77

745

Panel Nut M6 X 1.0

250100198

$2.11

780

Tie-Rap 180 mm

414115200

$0.11

800

Tie-Rap 180 mm

414115200

$0.11

810

Tie-Rap 180 mm

414115200

$0.11

830

Crimp Clamp

293650240

$7.20

840

CVT Inlet

707001864

$66.99

850

CVT Filter

707001786

$19.49
