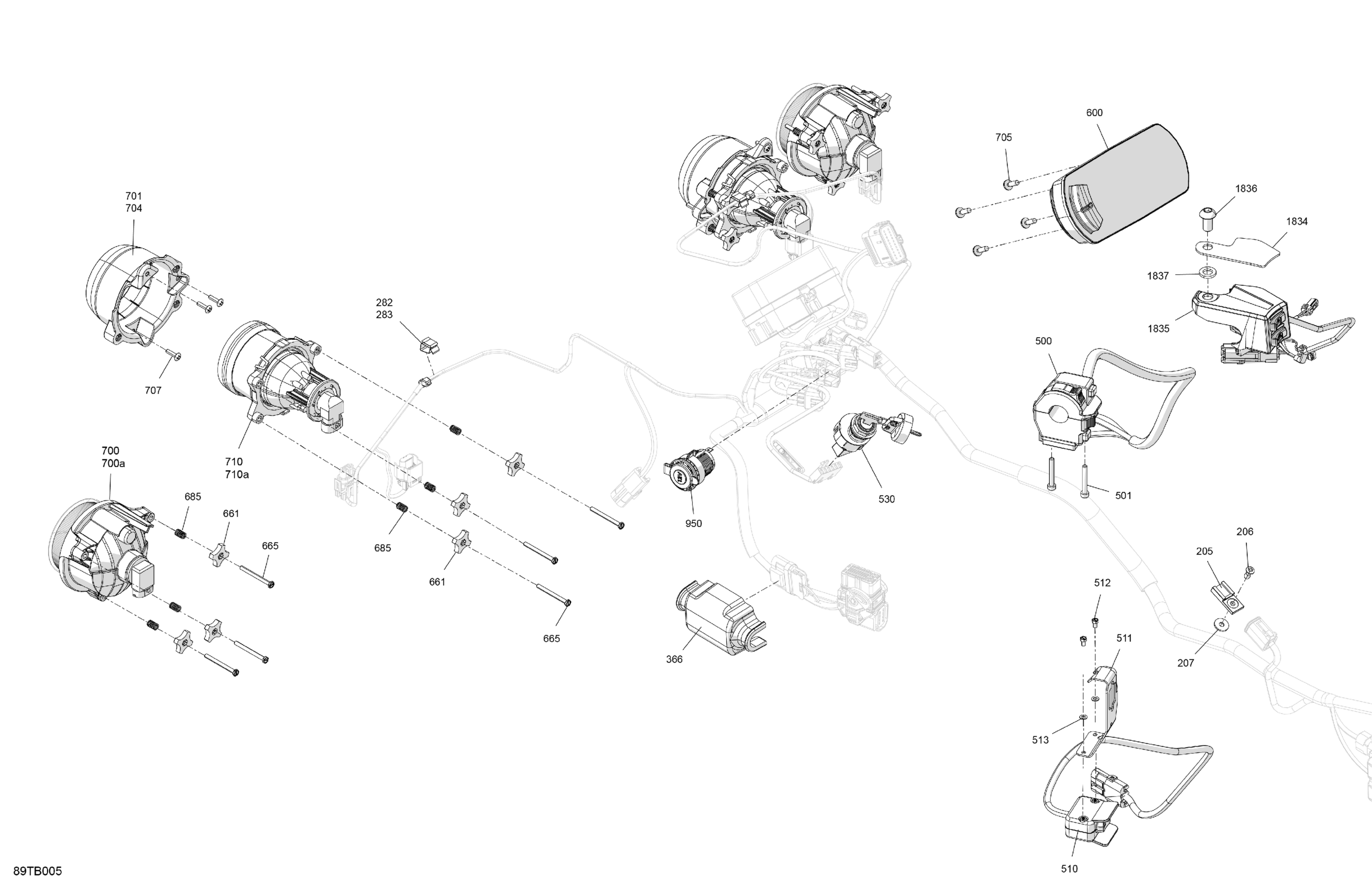

Can-Am Outlander 650 EFI - Mossy Oak Edition - 2022 Electric - Front Section Diagram

Description

Price

205

Clip

270000141

$8.33

206

Pop Rivet 3/16 X ,551

293150301

$0.64

207

Washer | DS 650 X

391301600

$0.48

282

Clip

710010204

$1.45

283

Clip

710010204

$1.45

366

Soft Protection Sleeve

710007255

$2.98

500

Multifunction Switch

710008837

$78.43

501

Socket Head Screw M5 X 35

205053588

$1.56

510

Winch Switch

710007327

$11.83

511

Black Support | Packages - XT, XTP, LTD, XMR Except Europe

710004670

$9.11

512

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.40

513

Flat Washer 4 mm

234040600

$0.46

530

Ignition Switch | Except Model Pro, T3

710007864

$83.05

600

Multifunction Gauge Compact Mono

710008108

$383.05

661

Handle

572106600

$9.31

665

Hex. Screw K40 X 45

250000718

$1.74

685

Spring

517168600

$6.91

700

Low Beam | Includes 54 to 55

710006177

$115.35

700a

Bulb 12V 55W

715900141

$41.51

701

RH High Front Housing

710002291

$27.66

704

LH High Front Housing

710002292

$23.05

705

Torx Screw K50 X 16

250000720

$1.39

707

Phillips Screw K40 X 16

250000723

$0.81

710

High Beam Ass'y | Includes 11 to 12

710002525

$115.35

710a

Halogen Bulb

415129249

$39.97

950

DC Outlet

710001248

$31.17

1834

Top Plate

715004008

$23.05

1835

Multifonction Housing Ass'y

710004990

$147.66

1836

Screw M10 X1.25 X 20 BHCS S.Grip

710005908

$9.22

1837

Washer

503192496

$0.75
