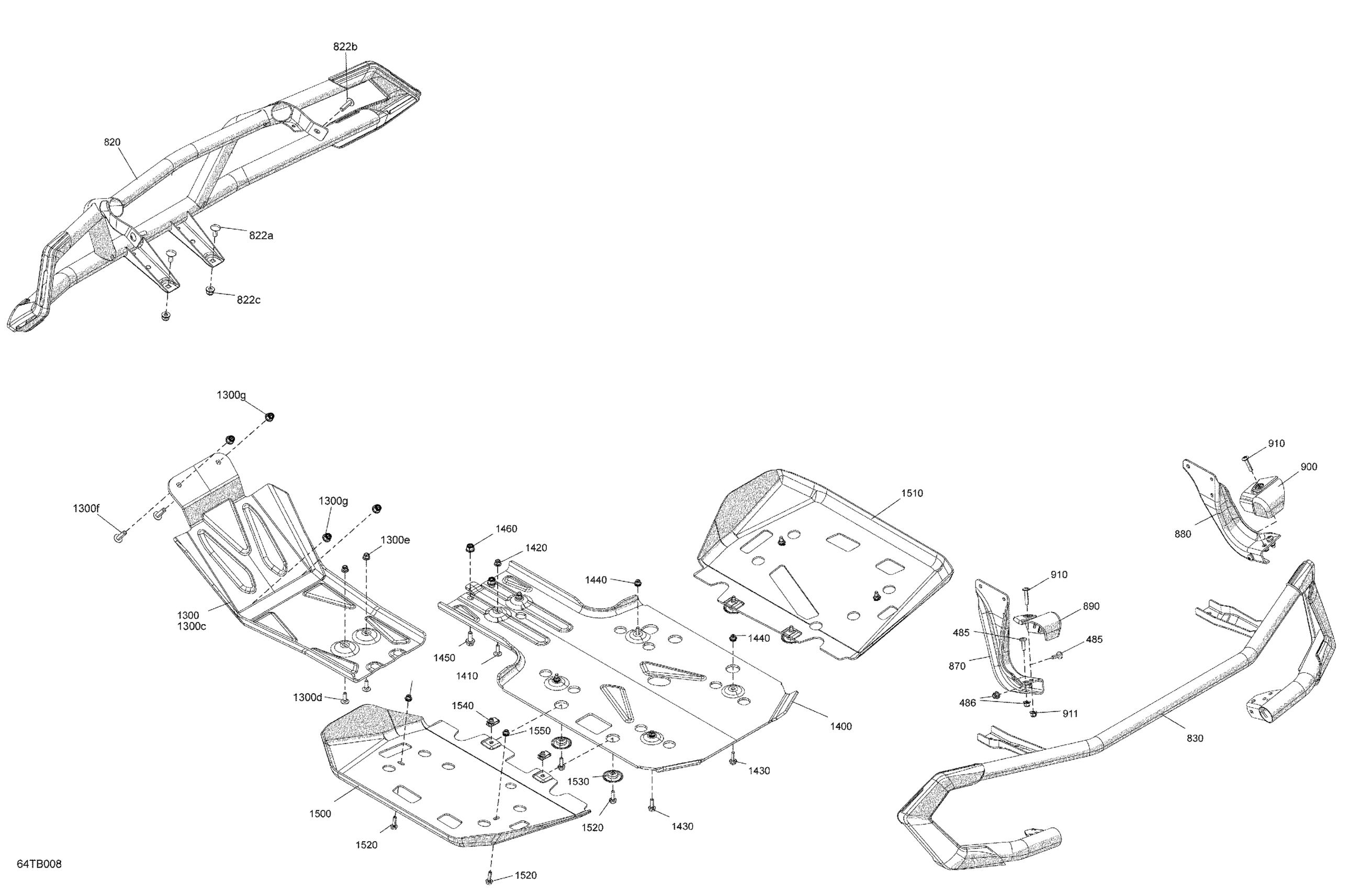

Can-Am Outlander 650 EFI - Mossy Oak Edition - 2022 Body - Skid Plate and Bumper Diagram

Description

Price

485

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.45

486

Flange Elastic Nut M6

233261434

$4.15

820

Deep Black, Bumber Kit

715004837

$212.32

822a

Carriage Bolt, M8 X 20

207782044

$1.79

822b

Torx Screw M8 X 30

250000886

$2.00

822c

Hex. Flange Elastic Nut M8

233281414

$1.31

830

Rear Bumper

715004920

$212.32

870

LH Rear Bracket | XT

705008164

$33.55

880

RH Rear Bracket | XT

705008165

$33.55

890

LH Bracket | XT

705005094

$6.39

900

RH Bracket | XT

705005095

$6.39

910

Stainless, Torx Screw M6 X 30

250000842

$2.00

911

Flange Elastic Nut M6

233261434

$4.15

1300

Front Skid Plate | Package Hunter

715000926

$96.49

1300b

Decal "Can-Am" | Not Shown

704904566

$8.97

1300c

Front Skid Plate | Package Hunter

715000926

$96.49

1300d

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.45

1300e

Flange Elastic Nut M6

233261434

$4.15

1300f

Hex Torx Truss M8 X30

250000745

$2.96

1300g

Hex. Flange Elastic Nut M8

233281414

$1.31

1400

Central Skid Plate | Package-XXC

705204031

$159.67

1410

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.45

1420

Flange Elastic Nut M6

233261434

$4.15

1430

Hex. Flange Screw M6 X 20

207662054

$0.96

1440

Insert Half Hex Body M6 x 1.0

250100199

$2.91

1450

Hex. Flange Screw M8 X 25

207682544

$1.03

1460

Hex. Flange Elastic Nut M8

233281414

$1.31

1500

LH Skid Plate | Package Hunter

705010659

$109.67

1510

RH Skid Plate | Package Hunter

705010660

$109.67

1520

Hex. Flange Screw M6 X 20

207662054

$0.96

1530

Cup | Package Hunter

705007171

$6.00

1540

Panel Nut M6 X 1.0

250100198

$1.99

1550

Insert Half Hex Body M6 x 1.0

250100199

$2.91
