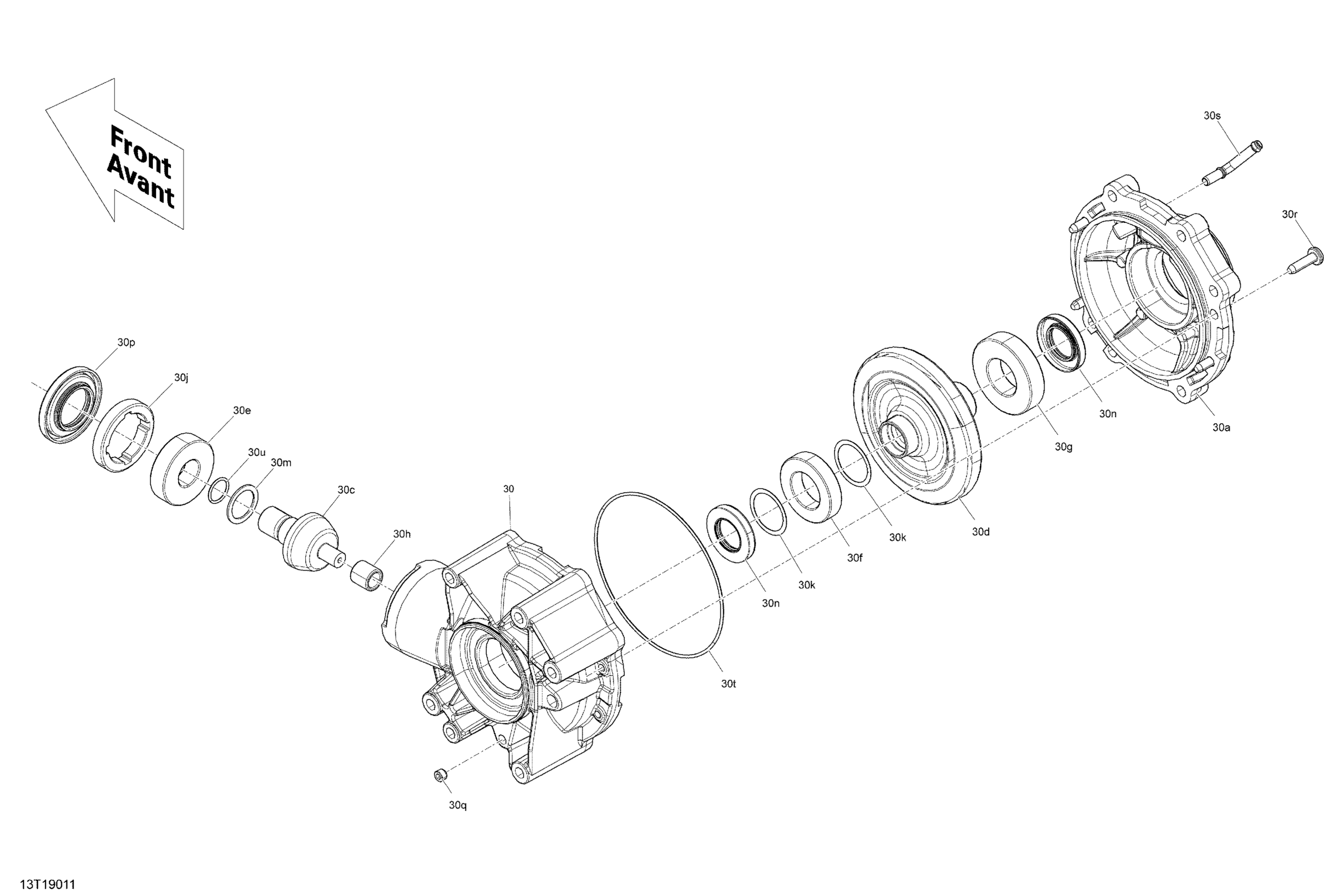

Can-Am 004 - Outlander 570 EFI - International - Non European Communities, 2019 08- Rear Drive - Differential Diagram

#

Description

Price

30

Final Drive Unit | Includes 30 to 30u

703501019

Unavailable

30a

Rear Cover

705502734

Unavailable

30c

Pinion 10 Teeth

705502053

Unavailable

30d

Gear 36 Teeth

705502682

Unavailable

30e

Ball Bearing

705502736

Unavailable

30f

Ball Bearing

705502737

Unavailable

30g

Ball Bearing

705502738

Unavailable

30h

Needle Bearing

705502058

Unavailable

30j

Nut

705502059

Unavailable

30k

Differential Shim 0.02 mm

705502060

Unavailable

30m

Pinion Gear Shim 1.67 mm

705502061

Unavailable

30n

Oil Seal

705501556

Unavailable

30p

Oil Seal

705502062

Unavailable

30q

Plug Drain

705501724

Unavailable

30r

Screw

705502063

Unavailable

30s

Breather Tube

705501584

Unavailable

30t

Seal

705502064

Unavailable

30u

O-Ring

705502065

Unavailable
