09- Body - Front Section - PRO

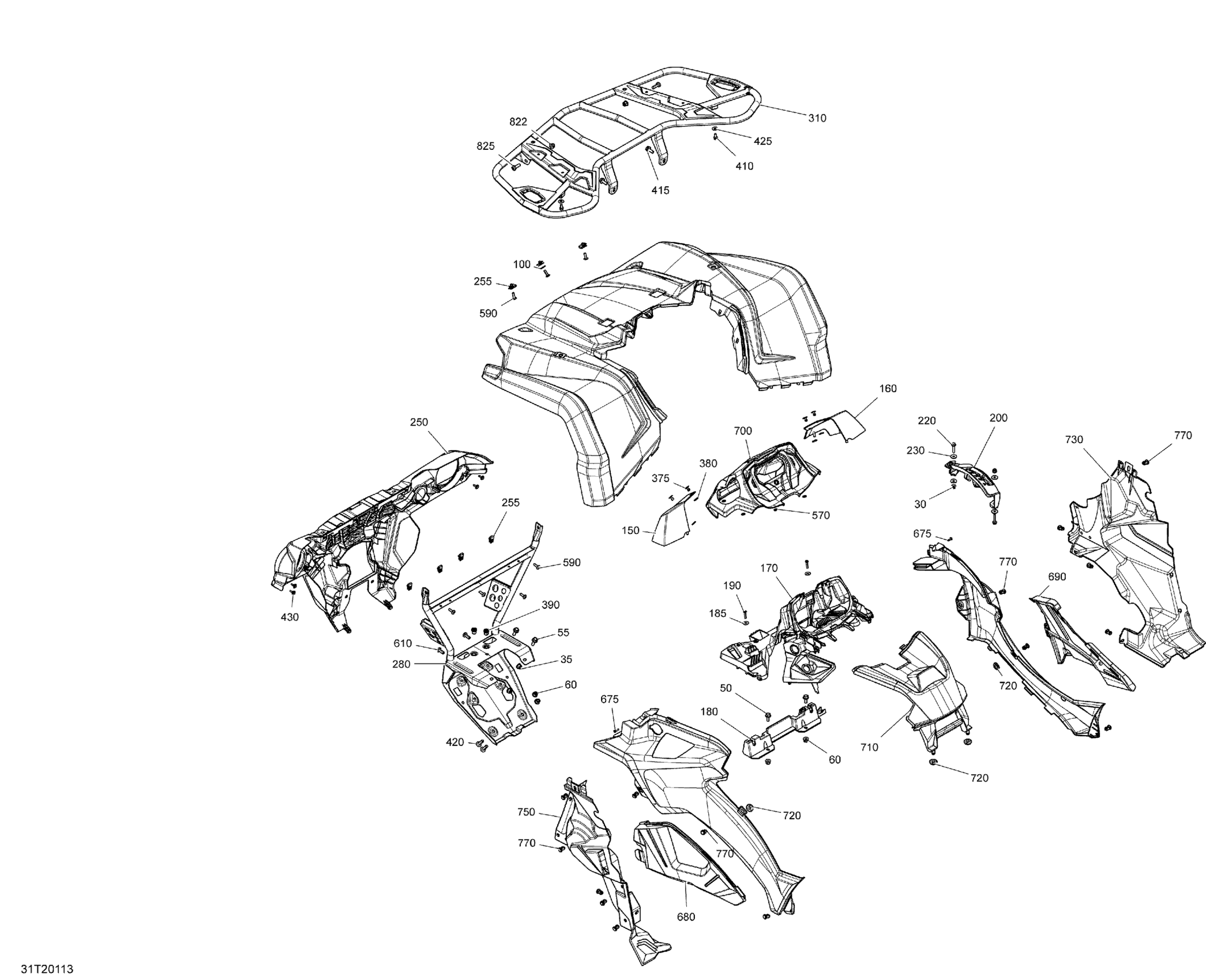

Can-Am 004 - Outlander 570 EFI - DPS_PRO - International - European Communities, 2020 09- Body - Front Section - PRO Diagram
#
35
Hex. Flange Elastic Nut M8
233281434
Unavailable
50
Hex. Flange Screw M8 X 20
207682044
Unavailable
55
Hex. Flange Screw M8 X 25, Scotch Grip
207582544
Unavailable
60
Hex. Flange Elastic Nut M8
233281434
Unavailable
100
Flat Washer 6 mm
234062410
Unavailable
150
LH Air Deflector
705006134
Unavailable
160
RH Air Deflector
705006135
Unavailable
170
Console Support Ass'y | Model-Europe/International
715006101
Unavailable
180
Console Support Insert
705010406
Unavailable
185
Flat Washer M6, Stainless
234062600
Unavailable
190
Hex. Flange Screw K50 X 2.24 X 25
241152540
Unavailable
200
Shifter Gate Kit | Engine 570 Except Europe, T3
715003977
Unavailable
220
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
230
Flat Washer
224061201
Unavailable
250
Front Facia | Model-North America, International
705009334
Unavailable
255
Panel Nut M6 X 1.0
250100198
Unavailable
280
Front Frame
705017337
Unavailable
310
Black, Front Luggage Rack
705006887
Unavailable
375
Pop Rivet 3/16" | DS 650 X
293150104
Unavailable
380
Washer
517124300
Unavailable
390
Insert Half Hex Body M8 x 1.25
293450307
Unavailable
410
Hex. Flange Screw M6 X 12
210261250
Unavailable
415
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
420
Torx Screw M8 X 30
250000886
Unavailable
425
Stainless Steel Flat Washer
234062670
Unavailable
430
Screw M4 X 16
250000725
Unavailable
570
Push Nut
732610072
Unavailable
590
Torx Screw M6 X 20
250000722
Unavailable
610
Hex. Screw M8 X 20
236282054
Unavailable
675
Phillips Screw K40 X 16
250000723
Unavailable
680
Deflector_Body Panel Kit
715007008
Unavailable
690
Engine Cover
705003444
Unavailable
700
Gage Support | Package PRO - XMR
705010139
Unavailable
710
Dash Kit
715005837
Unavailable
720
Grommet
705003264
Unavailable
730
RH Front Wheel Arch Protector
705017023
Unavailable
750
LH Inner Fender
705012338
Unavailable
770
Tuflok Plastic Rivet
293150230
Unavailable
822
Elastic Flange Nut M8
233281464
Unavailable
825
Pan Torx Screw M8 X 25
250000898
Unavailable
