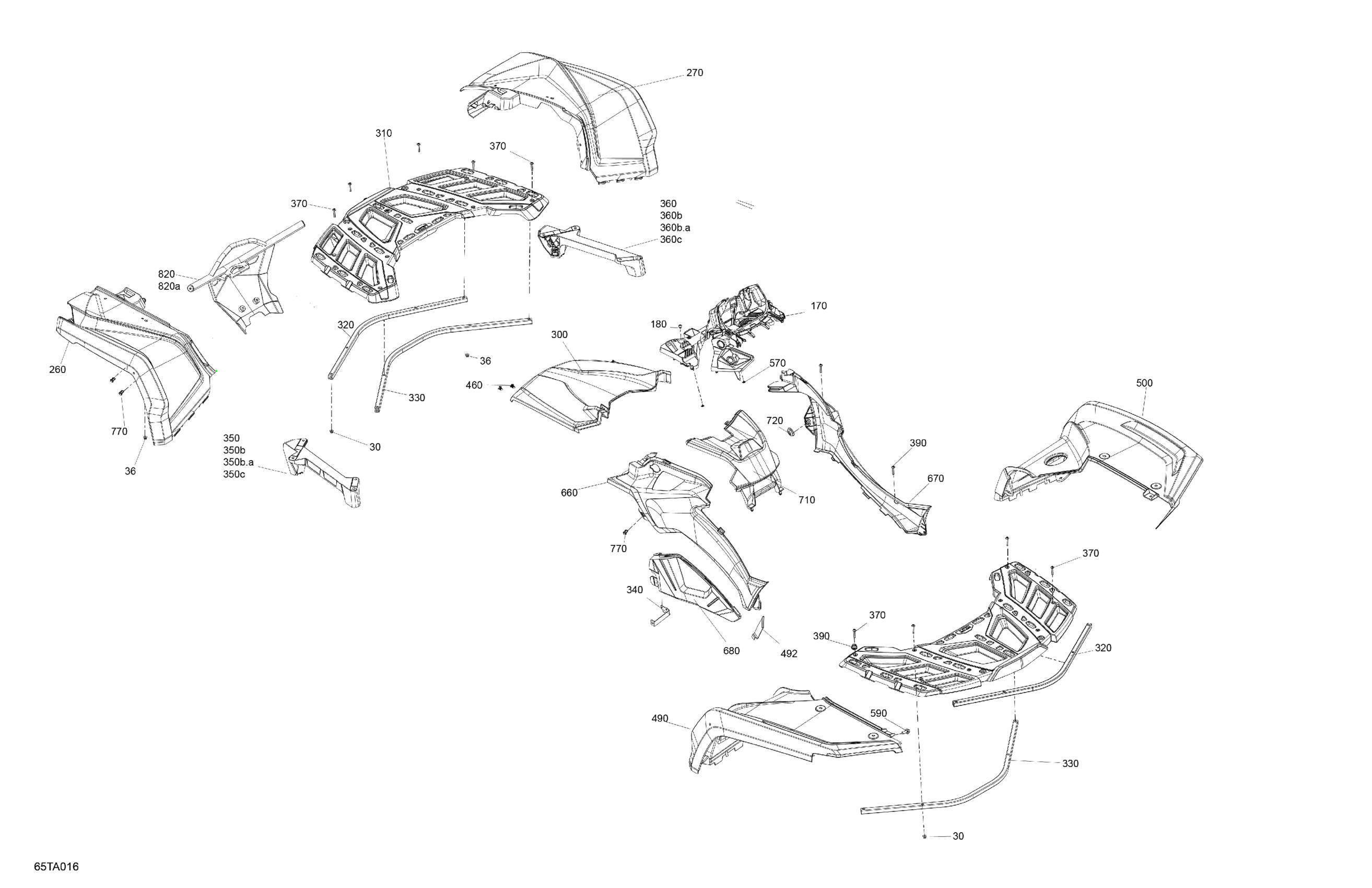

Can-Am Outlander 1000R EFI - XXC - CE, 2021 Body - Fender Kit Diagram

#

Description
Price

30

Flange Elastic Nut M6

233261434

$4.44

36

Flange Elastic Nut M6

233261434

$4.44

170

Console Support Ass'y | Model-Europe/International

715006101

$63.99

180

Rubber Bumper

293830005

$8.09

260

Timeless Black, LH Front Fender Ass'y

715006907

$409.99

270

Timeless Black RH Front Fender | OUT&B-302&INT

715005663

$409.99

300

Silver, Hood

708303123

Unavailable

310

Rack Kit | Model-International

715002240

$169.99

320

Sectional Bent Tube

705016640

$38.99

330

Bent Sectional Tube

705016092

$42.99

340

Lugage Rack Moulding

705004523

$24.49

350

LH Support Luggage Rack Ass'y | Includes 33 to 35

705011553

$19.99

350b

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

350b.a

Hex. Elastic Nut M8 Brass

232581200

$2.22

350c

Hex. Elastic Stop Nut M6

232561600

$1.15

360

RH Support Luggage Rack Ass'y | Includes 36 to 38

705011555

$21.99

360b

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

360b.a

Hex. Elastic Nut M8 Brass

232581200

$2.22

360c

Hex. Elastic Stop Nut M6

232561600

$1.15

370

Black, Torx Screw M6 X 35

250000646

$0.98

390

Insert Half Hex Body M6 x 1.0

250100199

$3.19

460

Edge Clip

517302785

$0.88

490

Timeless Black, LH Rear Fender Ass'y

715005731

$409.99

492

Heat Shield

707002457

$3.89

500

Timeless Black, RH Rear Fender | Timeless Black

705014386

$409.99

570

Push Nut

732610072

$2.19

590

Torx Screw M6 X 20

250000722

$1.68

660

Hyper Silver, LH Panel | P-XMR Blue

705011920

$309.99

670

Hyper Silver, RH Panel | P-XMR Blue

705011921

$309.99

680

Deflector Body Panel Kit

715007294

$55.99

710

Console Cap Ass'y

715007686

$64.99

720

Grommet

705003264

$4.09

770

Tuflok Plastic Rivet

293150230

$1.47

820

Front Bumper Ass'y | Model XXC

715007687

$779.99

820a

Not Available As Spare Parts

XXX

Unavailable
