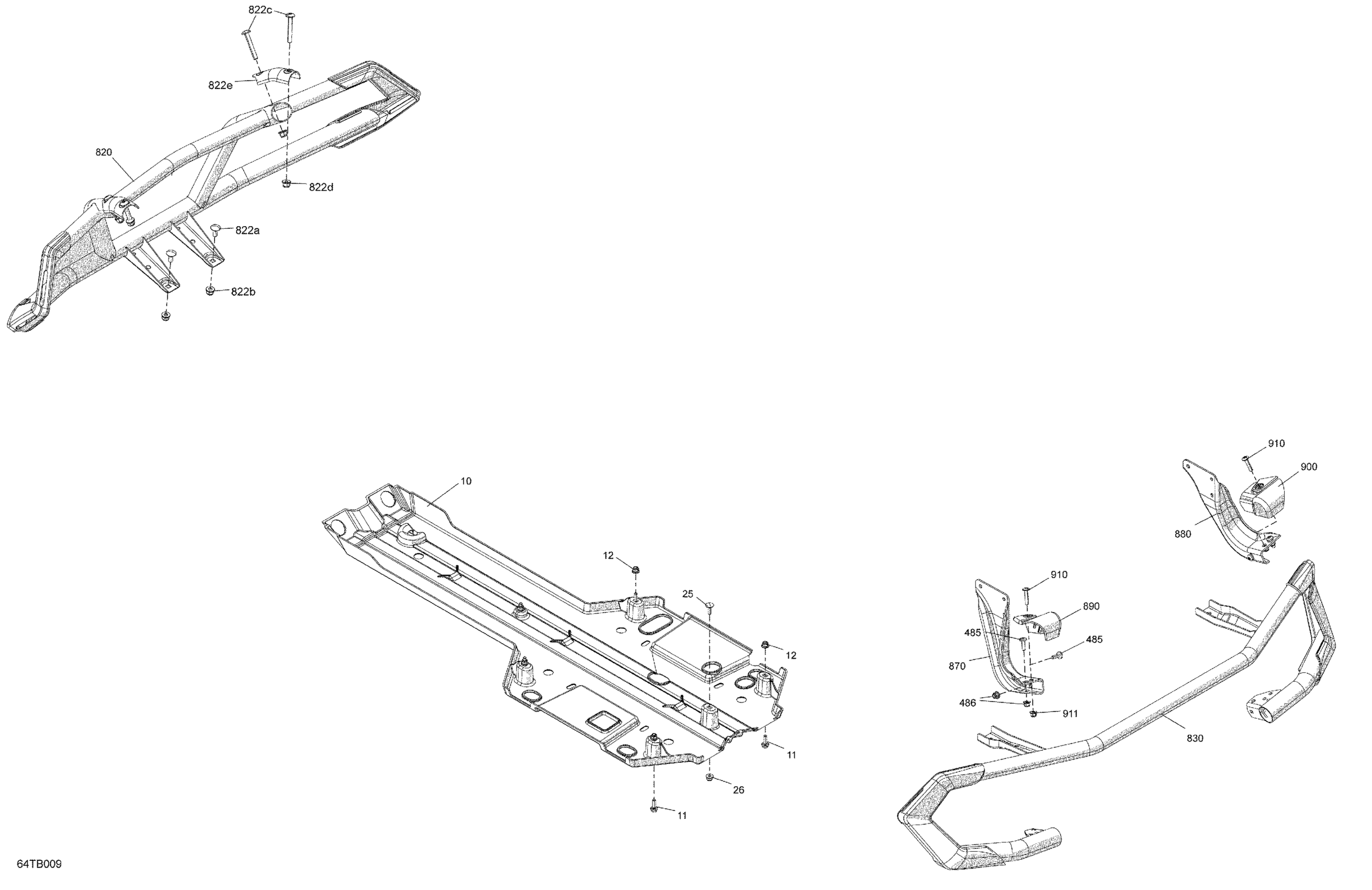

Can-Am Outlander 1000R EFI - XMR - 2022 Body - Skid Plate and Bumper Diagram

#

Description
Price

10

Protective Plate Kit

715002374

$64.49

11

Hex. Flange Screw M6 X 20

207662054

$1.01

12

Flange Elastic Nut M6

233261434

$4.44

25

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

26

Flange Elastic Nut M6

233261434

$4.44

485

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

486

Flange Elastic Nut M6

233261434

$4.44

820

Carbon Black, Front Bumper | Includes 820 to 820a.m

705017373

$291.49

822a

Carriage Bolt, M8 X 20

207782044

$1.90

822b

Hex. Flange Elastic Nut M8

233281414

$1.47

822c

Torx Screw M8 X 55

250000535

$3.17

822d

Elastic Flange Nut M8

233281464

$1.01

822e

Carbon Black, Upper Mounting Clamp | Includes 822e to 822e.a

705017377

$44.99

830

Carbon Black, Rear Bumper | Includes 830 to 830a.k

705017382

$291.49

870

LH Rear Bracket | XT

705008164

$37.99

880

RH Rear Bracket | XT

705008165

$37.99

890

LH Bracket | XT

705005094

$7.19

900

RH Bracket | XT

705005095

$7.19

910

Stainless, Torx Screw M6 X 30

250000842

$2.11

911

Flange Elastic Nut M6

233261434

$4.44
