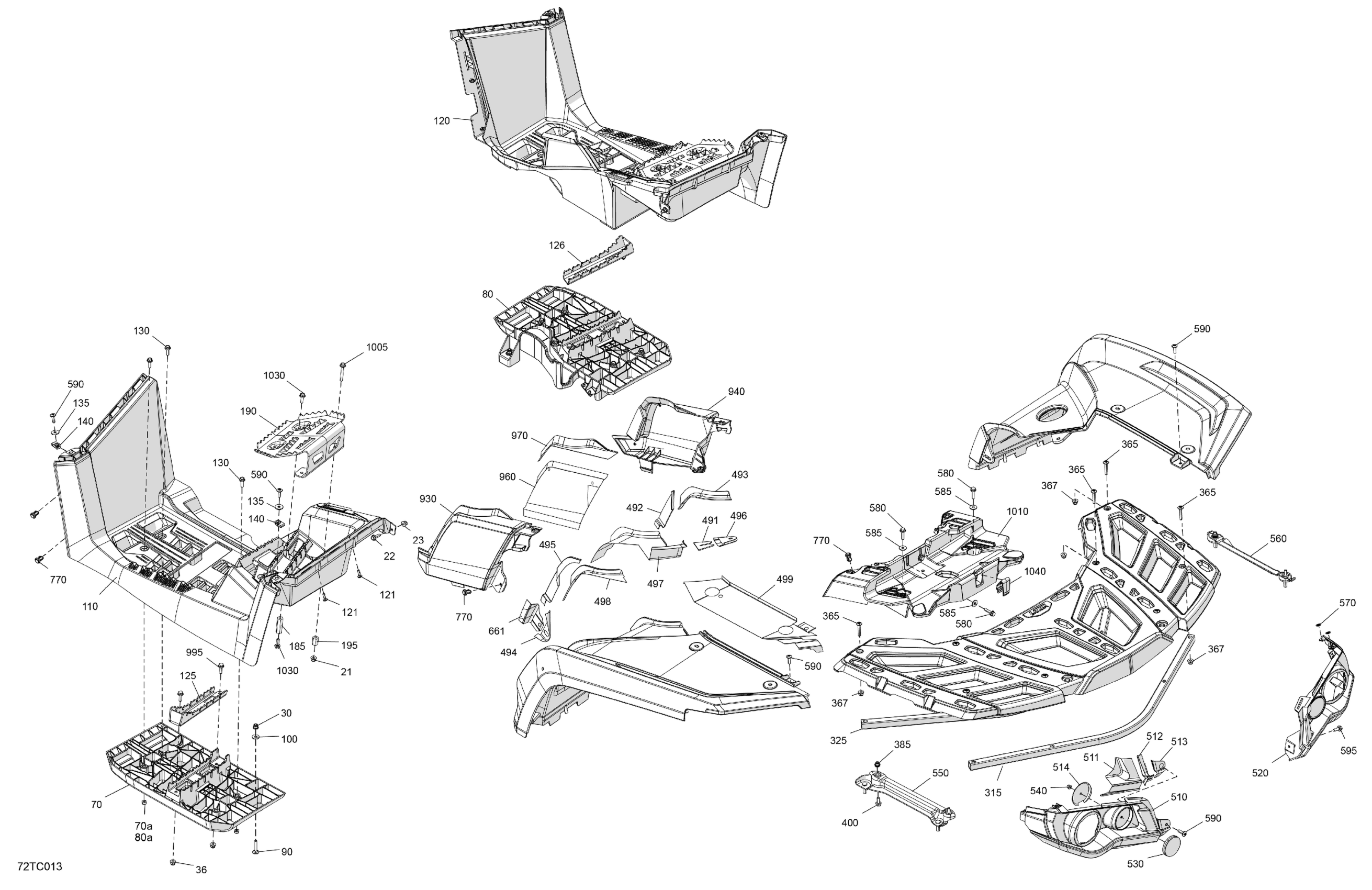

Can-Am Outlander 1000R EFI - XMR - CE, 2023 Body - Rear Section Diagram

#

Description
Price

21

Flange Elastic Nut M6

233261434

$4.44

22

Hex. Flange Screw M6 X 20

207662054

$1.01

23

Flange Elastic Nut M6

233261434

$4.44

30

Flange Elastic Nut M6

233261434

$4.44

36

Flange Elastic Nut M6

233261434

$4.44

70

LH Structural Footboard

705011540

$119.99

70a

Square Nut M6

232862412

$1.49

80

RH Structural Footboard

705011542

$109.99

80a

Square Nut M6

232862412

$1.49

90

Carriage Bolt M6 X 35

207763554

$2.11

100

Flat Washer 6 mm

234062410

$0.77

110

LH Footboard

705005978

$184.99

120

RH Footboard

705005977

$184.99

121

Torx Screw K50 X 16

250000720

$1.69

125

LH Footrest

705004352

$30.99

126

RH Footrest

705005395

$36.99

130

Hex. Flange Screw M6 X 20

207662054

$1.01

135

Flat Washer

224061201

$1.37

140

Panel Nut M6 X 1.0

250100198

$2.11

185

Coupling Nut, Large

705006819

$12.99

190

Black, Footrest | Package XMR, Engine 1000R

705015693

$72.99

195

Coupling Nut, Short

705006818

$9.53

315

Sectional Bent Tube

705016640

$38.99

325

Sectional Bent Tube

705016641

$42.99

365

Black, Torx Screw M6 X 35

250000646

$0.98

367

Flange Elastic Nut M6

233261434

$4.44

385

Insert Half Hex Body M6 x 1.0

250100199

$3.19

400

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

491

Heat Shield

707002456

$3.89

492

Heat Shield

707002457

$3.89

493

Heat Shield

707002458

$19.99

494

Heat Shield

707002459

$3.89

495

Heat Shield

707002460

$4.29

496

Heat Shield

707002461

$3.89

497

Heat Shield

707002462

$3.89

498

Heat Shield

707002583

$4.29

499

Heat Shield

707002464

$3.89

510

LH Rear Facia | North America, International

705006643

$15.99

511

Heat Shield

707002103

$10.49

512

Heat Shield

707002107

$2.59

513

Heat Shield

707002594

$0.98

514

Heat Shield

707002465

$3.89

520

RH Rear Facia | North America, International

705006650

$15.99

530

Red, Reflector

705016982

$14.49

540

Flange Elastic Nut M5

233251434

$2.00

550

LH Support

705007277

$30.99

560

RH Support

705007278

$30.99

570

Push Nut

732610072

$2.19

580

Hex Flange Screw M6 X 25

250000841

$7.51

585

Stainless Steel Flat Washer

234062670

$2.11

590

Torx Screw M6 X 20

250000722

$1.68

595

Hex. Flange Screw M6 X 16

207661654

$2.11

661

Heat Shield

707002467

$4.29

770

Tuflok Plastic Rivet

293150230

$1.47

930

LH Extension Panel

715001897

$27.99

940

RH Extension Panel

705004348

$26.99

960

Heat Shield

705006870

$5.29

970

Heat Shield

705006871

$5.29

995

Hex. Flange Screw M6 X 20

207662034

$2.11

1005

Hex. Flange Screw M6 X 45

207664536

$2.85

1010

Seat Holder

705007948

$58.99

1030

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

1040

Rod Cap

708200462

$3.09
