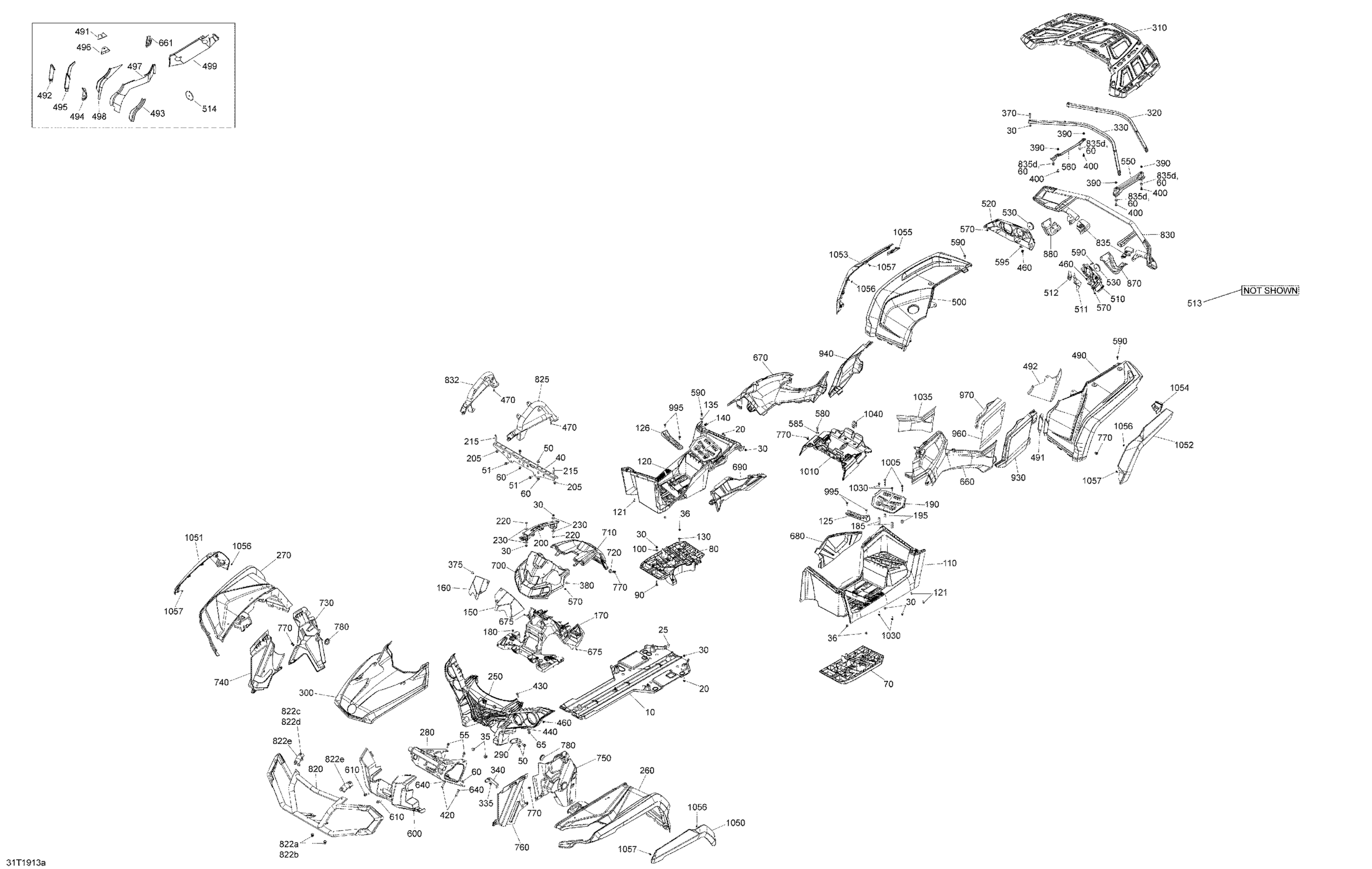

Can-Am Outlander 1000R EFI - International - Non European Communities, 2019 Body - XMR - 5KKC Diagram

#

Description
Price

10

Protective Plate Kit

715002374

$64.49

20

Hex. Flange Screw M6 X 20

207662054

$1.01

20

Hex. Flange Screw M6 X 20

207662054

$1.01

25

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

30

Flange Elastic Nut M6

233261434

$4.44

35

Hex. Flange Elastic Nut M10

233201434

$2.09

36

Flange Elastic Nut M6

233261434

$4.44

40

Front Bumper Center Support

705006220

$88.99

50

Hex. Flange Screw M8 X 20

207682044

$1.15

51

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

55

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

60

Hex. Flange Elastic Nut M8

233281434

$2.11

65

Elastic Flange Nut M8

233281464

$1.01

70

LH Structural Footboard

705011540

$119.99

80

RH Structural Footboard

705011542

$109.99

90

Carriage Bolt M6 X 35

207763554

$2.11

100

Flat Washer 6 mm

234062410

$0.77

110

LH Footboard

705005978

$184.99

120

RH Footboard

705005977

$184.99

121

Torx Screw K50 X 16

250000720

$1.69

125

LH Footrest

705004352

$30.99

126

RH Footrest

705005395

$36.99

130

Hex. Flange Screw M6 X 16

207661654

$2.11

135

Flat Washer

224061201

$1.37

140

Panel Nut M6 X 1.0

250100198

$2.11

150

LH Air Deflector

705006134

$26.99

160

RH Air Deflector

705006135

$24.99

170

Console Support Ass'y | Model-Europe/International

715006101

$63.99

180

Rubber Bumper

293830005

$8.09

185

Coupling Nut, Large

705006819

$12.99

190

Black, Footrest | Package XMR, Engine 1000R

705015693

$72.99

195

Coupling Nut, Short

705006818

$9.53

200

Indicator | Package PRO International

715004085

$26.99

205

Hex. Flange Elastic Nut M8

233281434

$2.11

215

Socket Set Screw M8 x 50

206285044

$4.65

220

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

230

Flat Washer

224061201

$1.37

250

Fascia

705012822

$119.99

280

Front Bumper Support

705016893

$349.99

310

Rack Kit | Europe, Int'l

715002784

$194.99

320

Sectional Bent Tube

705016640

$38.99

330

Bent Sectional Tube

705016092

$42.99

335

Hex. Flange Screw M6 X 10

210261040

$1.48

340

LH Inner Fender Bracket

705007140

$22.49

370

Black, Torx Screw M6 X 35

250000646

$0.98

375

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

380

Washer

517124300

$0.19

390

Insert Half Hex Body M6 x 1.0

250100199

$3.19

400

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

420

Torx Screw M8 X 30

250000886

$2.11

430

Hex. Cap Screw M8 X 30

207183054

$4.44

440

Stainless Steel Flat Washer 8 mm

234081670

$0.67

460

Edge Clip

517302785

$0.88

470

Hex. Flange Screw, Scotch Grip

207551634

$2.00

491

Heat Shield

707002456

$3.89

492

Heat Shield

707002457

$3.89

493

Heat Shield

707002458

$19.99

494

Heat Shield

707002459

$3.89

495

Heat Shield

707002460

$4.29

496

Heat Shield

707002461

$3.89

497

Heat Shield

707002462

$3.89

498

Heat Shield

707002463

Unavailable

499

Heat Shield

707002464

$3.89

510

LH Rear Facia | North America, International

705006643

$15.99

511

Heat Shield

707002103

$10.49

512

Heat Shield

707002107

$2.59

513

Heat Shield

707002293

$10.49

514

Heat Shield

707002465

$3.89

520

RH Rear Facia | North America, International

705006650

$15.99

530

Red Reflector

705011221

$14.49

550

LH Support

705007277

$30.99

560

RH Support

705007278

$30.99

570

Push Nut

732610072

$2.19

570

Push Nut

732610072

$2.19

580

Hex Flange Screw M6 X 25

250000841

$7.51

585

Stainless Steel Flat Washer

234062670

$2.11

590

Torx Screw M6 X 20

250000722

$1.68

595

Hex. Flange Screw M6 X 16

207661654

$2.11

600

Front Guard Plate | North America, International

705006299

$51.99

610

Socket Screw M10 x 30 | XT

205003044

$3.17

640

Ring

705004497

$5.19

660

LH Pannel | Deep Black

705005236

$73.99

661

Heat Shield

707002467

$4.29

670

RH Panel | Deep Black

705009121

$57.99

675

Phillips Screw K40 X 16

250000723

$0.98

680

Deflector_Body Panel Kit

715007008

$28.99

690

Engine Cover

705003444

$22.99

700

Gage Support

705006373

$44.99

710

Dash Kit | Europe, Int'l

715002783

$64.99

720

Grommet

705003264

$4.09

770

Tuflok Plastic Rivet

293150230

$1.47

780

Rubber Cover

293250242

$6.99

820

Bumper F B-354

705014576

$280.99

822a

Carriage Bolt, M8 X 20

207782044

$1.90

822b

Hex. Flange Elastic Nut M8

233281434

$2.11

822c

Torx Screw M8 X 55

250000535

$3.17

822d

Elastic Flange Nut M8

233281464

$1.01

822e

Yellow, Upper Bracket

705012126

$47.99

825

Sunburst Yellow, LH Rad Bracket

705013936

$238.49

830

Sunburst Yellow, Rear Bumper

705014580

$232.99

832

Sunburst Yellow, RH Rad Bracket

705013937

$238.49

835

Bumper Kit

708200301

Unavailable

870

LH Rear Bracket | XT

705008164

$37.99

880

RH Rear Bracket | XT

705008165

$37.99

930

LH Extension Panel

715001897

$27.99

940

RH Extension Panel

705004348

$26.99

960

Heat Shield

705006870

$5.29

970

Heat Shield

705006871

$5.29

995

Hex. Flange Screw M6 X 20

207662034

$2.11

1005

Hex. Flange Screw M6 X 45

207664536

$2.85

1010

Seat Holder

705007948

$58.99

1030

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

1035

Heat Shield

705008438

$8.89

1040

Rod Cap

708200462

$3.09

1050

LH Mud Guard

705006988

$36.99

1051

RH Mud Guard

705006989

$35.99

1052

LH Rear Mudguard

705003918

$14.69

1053

RH Rear Mudguard

705003920

$14.69

1054

LH Mudgard Cap

705004888

$4.92

1055

RH Mudgard Cap

705004889

$4.92

1056

Push Nut

732610072

$2.19

1057

Self Tapping Screw #8 X 5/8

250000202

$1.48
