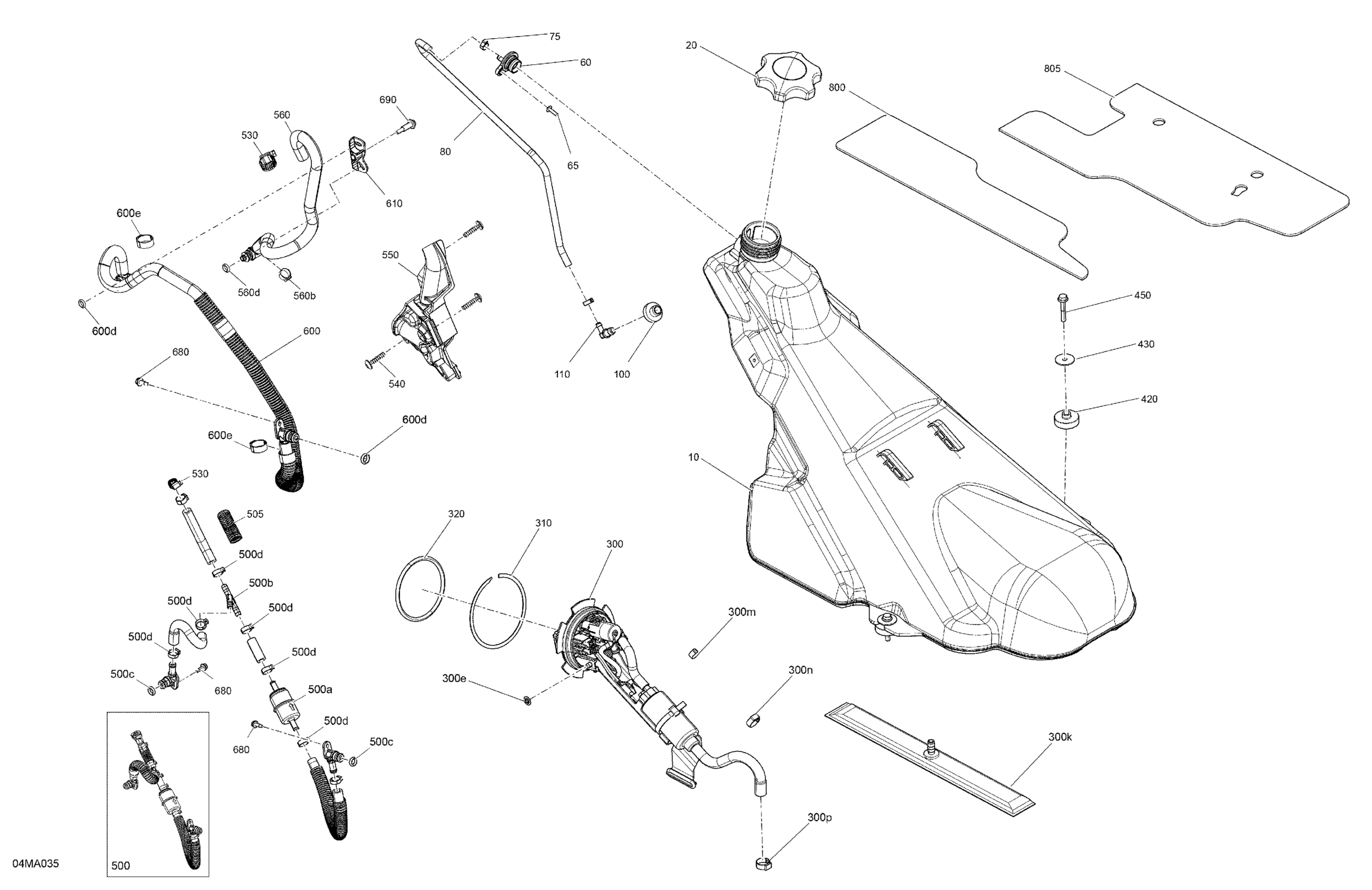

Ski-Doo MXZ 600RS - Europe, 2021 Engine - Fuel Diagram

#

Description
Price

10

Fuel Tank KIt

415130437

$329.99

20

Fuel Tank Cap

513033944

$59.99

60

Fitting

513033864

$36.99

65

Truss Torx Screw K40 X 16

250000918

$2.11

75

Oeticker Clamp

293650262

$1.29

80

Polyurethane Hose 10000Mm Long

219704410

$56.99

100

Grommet

709200948

$8.89

110

Male Connector

414580700

$4.12

300

Fuel Pump Ass'y | Includes 300 to 300q

513034002

$259.99

300e

Push Nut

732610072

$2.19

300j

O Ring

293300218

$2.32

300k

Fuel Filter

861805584

$159.99

300m

Clamp Oetiker

293650207

$12.17

300n

Oetiker Clamp

293650125

$3.29

300p

Crimp Clamp

293650053

$3.09

310

Circlip

513033798

$13.99

320

O-Ring

513033862

$23.99

420

Socket

513034007

$7.99

430

Washer | Not Shown

503193995

$4.54

450

Hex. Flange Screw M6 X 35

207663544

$0.90

500

Hose Ass'y | Includes 500 to 500e

513034021

$132.49

500a

Fuel Filter

513034047

$21.99

500b

Y Fitting

513033926

$2.79

500c

O-Ring

513033668

$10.99

500d

Oetiker Clamp

293650125

$3.29

505

Tubing 16 Mm 1000Mm Long

219704408

$7.49

530

Tridon Gear Clamp

293650171

$3.09

540

Torx Screw Truss Head K50X20 T20

250000760

$2.11

550

Hose Guide

513034051

$7.69

560

Fuel Tank Hose Ass'y | Includes 560 to 560d

513034055

$62.49

560b

Crimp Clamp

293650053

$3.09

560d

O-Ring

513033668

$10.99

600

Hose Ass'y | Includes 600 to 600e

513034063

$82.49

600d

O-Ring

513033668

$10.99

600e

Crimp Clamp

293650053

$3.09

610

Bracket

513033903

$1.49

680

Hex. Flange Screw M5 X 16

250000911

$0.85

690

Hex. Flange Screw M5 X 28 S.Grip

250001018

$1.46

800

Insulated Foam

513033866

$12.49

805

Insulated Foam

513033867

$16.99
