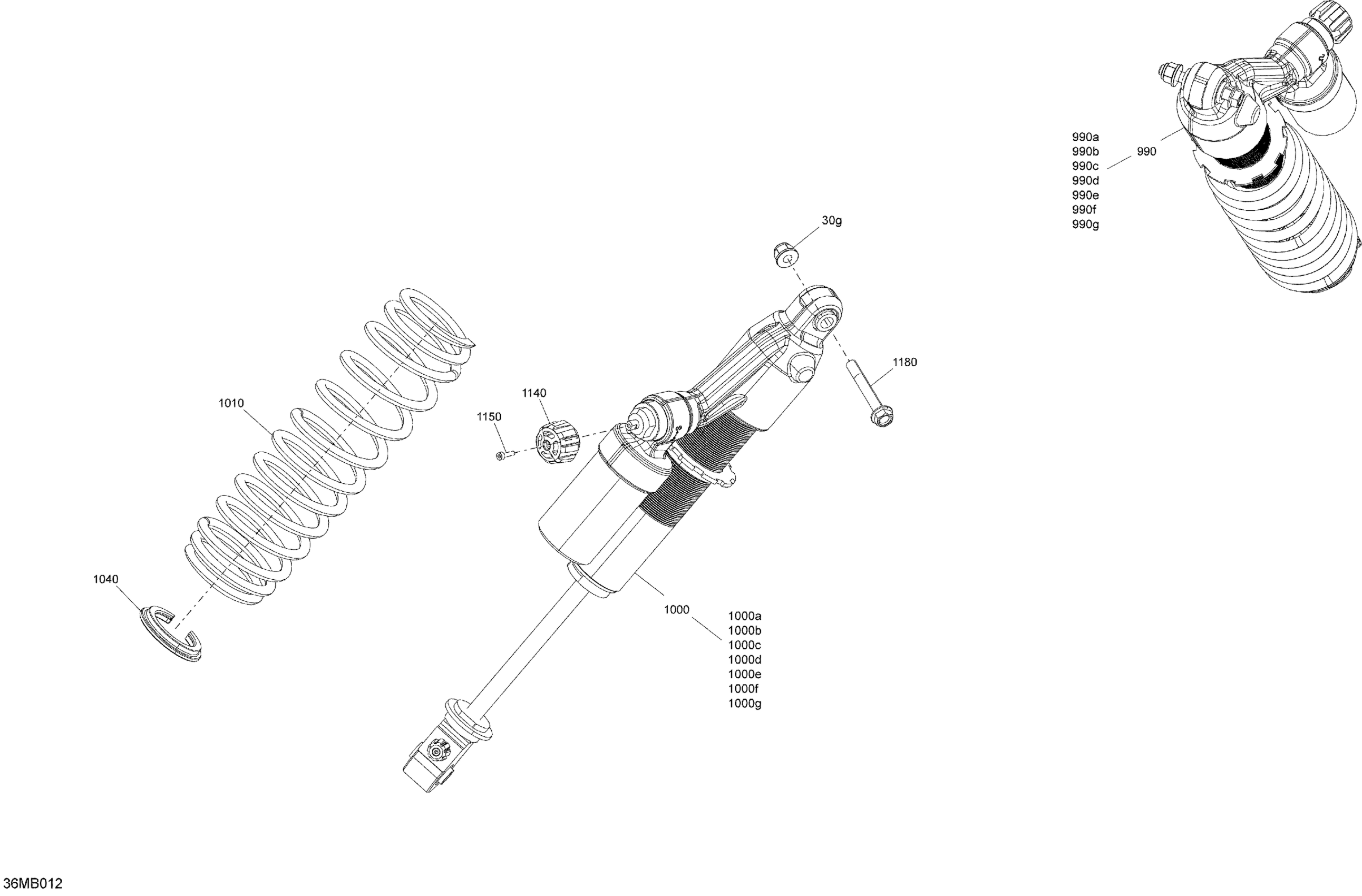

Ski-Doo MXZ 600R E-TEC - XRS - 2022 Suspension - Front Shocks Diagram

Description

Price

990

RH Front Shock

505074897

$877.49

990a

O-Ring

415093807

$33.55

990b

Piston Ring | Not Shown

415093806

$14.52

990c

O-Ring

505070400

$4.25

990d

Screw | Not Shown

505070399

$3.88

990e

O-Ring

415093804

$4.25

990f

Circlip En C

715900075

$4.72

990g

Base Valve

415130165

$72.36

1000

LH Front Shock | Includes 1000 to 1000h

505074898

$877.49

1000a

O-Ring

415093807

$33.55

1000b

Piston Ring | Not Shown

415093806

$14.52

1000c

O-Ring

505070400

$4.25

1000d

Screw | Not Shown

505070399

$3.88

1000e

O-Ring

415093804

$4.25

1000f

Circlip En C

715900075

$4.72

1000g

Base Valve

415130165

$72.36

1010

Deep Black, Spring

505074309

$64.90

1040

Spring Stopper

503194270

$16.39

1140

Shock Adjuster Knob

503193033

$7.36

1150

Allen Screw M3 X 0.5 X 10

250000644

$2.00

1180

Hex. Flange Screw M8 X 58

250000824

$2.00

30g

Elastic Flange Nut M8

233281466

$0.96
