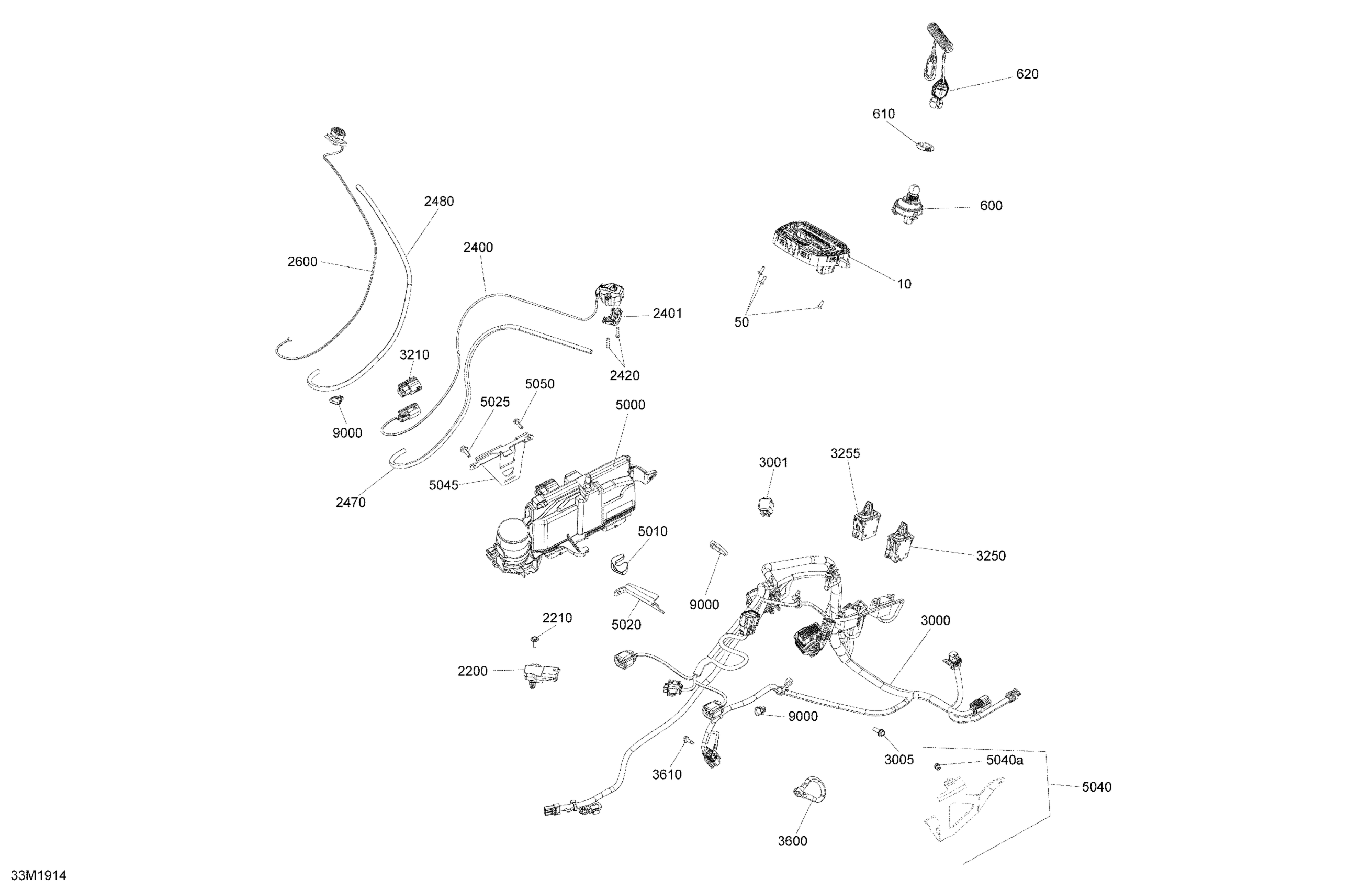

Ski-Doo MXZ 600 RACING, 2019 Electrical - 600 Racing Diagram

Multifunction Gauge Compact Mono

515178810

$480.57

Torx Truss Screw K40 X 12

250000577

$2.00

Terminal Dess One-Wire | Except Model Europe

515178840

$77.58

Safety Nut (DESS Switch)

278002963

$3.12

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$62.66

Pressure And Temperature Sensor

707000995

$81.31

Hex. Flange Screw M5 X 25

207652544

$0.48

Control Button

515178657

$66.39

Braided Sleeve

415130141

$54.45

Braided Sleeve

415130141

$54.45

Emergency Stop Switch

515178300

$60.42

Chassis Wiring Harness

515178550

$283.55

Diagnostic Cap

515178435

$8.31

Hex. Flange Screw M6 X 16

250001062

$1.39

4 Circuits Female Housing

515178177

$11.54

Switch Rocker Hand Warmer

515178462

$18.63

Switch Rocker Headlignt

515178463

$18.63

Ground Wire

515178248

$23.10

Hex. Flange Screw M5 X 16

250000911

$0.81

Igniton Module

512061093

$571.61

Rubber Stopper

515178430

$2.03

Support Module

515178491

$10.96

Hex. Flange Screw M5 X 16

207651646

$2.00

Support Module | Includes 5040 to 5040a

515178488

$60.42

Insert M5 X 0.8

293450268

$1.90

Support Module

515178489

$60.42

Hex. Flange Screw, Scotch Grip

207551634

$1.91

Tie Wrap 142 mm

293750002

$1.01
