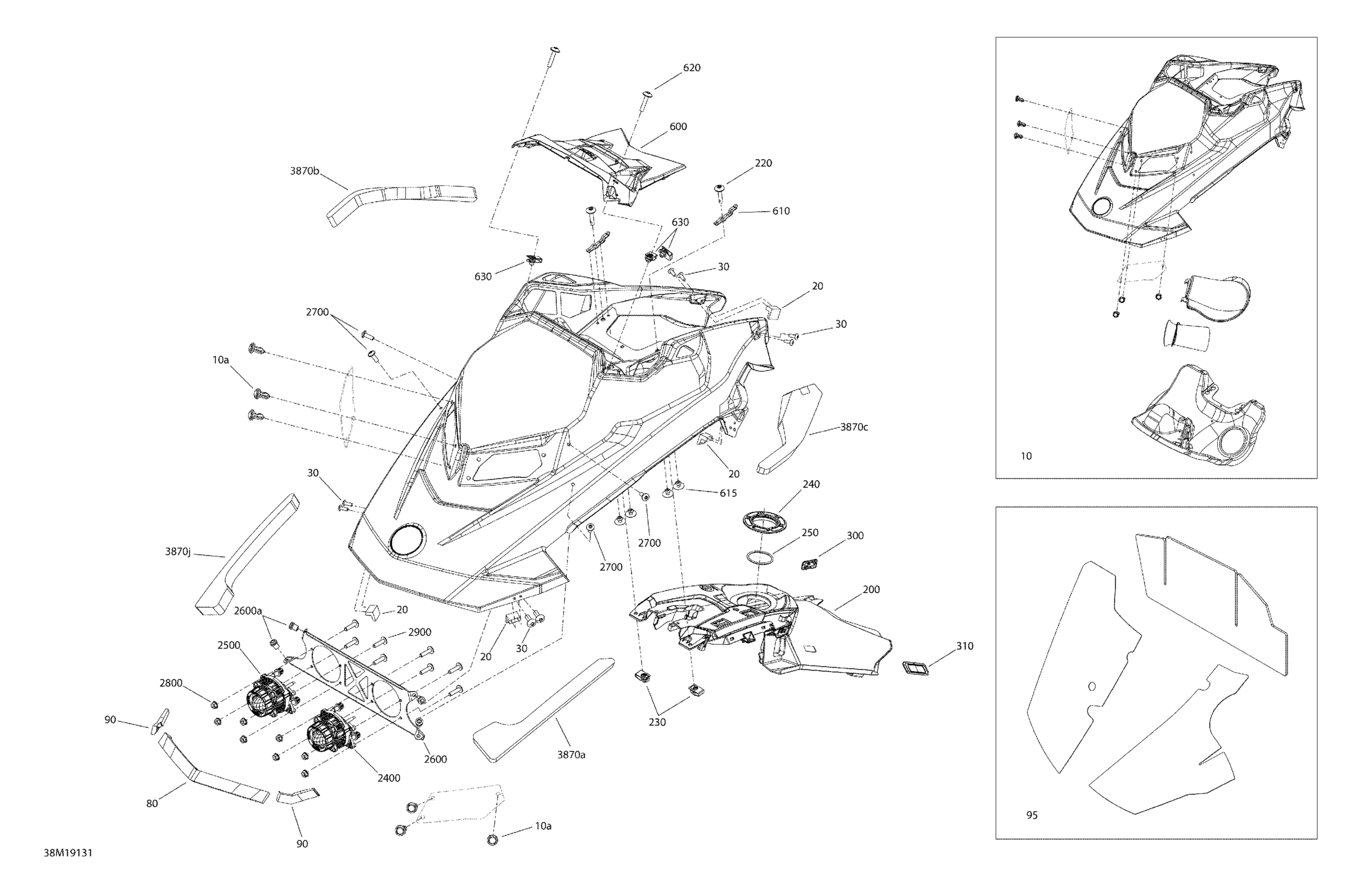

Ski-Doo MXZ 600 RACING, 2019 Hood - 600 Racing - Hood Diagram

#

Description
Price

10

Hood Ass'y | Includes 10 to 10a

517306920

$529.99

10a

Tuflok Plastic Rivet

293150230

$1.21

20

Hook

517307050

$23.05

30

Torx Truss Screw K40 X 12

250000577

$1.74

80

Front Hood Foam

517306592

$11.54

90

Hood Foam

517306593

$11.49

95

Foil

517307074

$156.12

200

Rear Console

517307685

$177.66

220

Torx Screw M5 X 26

250000587

$3.61

230

Panel Nut M5 X 0.8

250000958

$3.48

240

Console Nut

517306602

$11.22

250

O-Ring

706002839

$0.98

300

RH Cap

517306587

$1.31

310

LH Cap

517306588

$1.31

600

Indicator Support

517305782

$10.03

610

Hook

517306967

$9.79

615

Pop Rivet 3/16"

293150103

$0.54

620

Torx Screw M5 X 26

250000587

$3.61

630

Panel Nut M5 X 0.8

250000958

$3.48

2400

Headlight Kit

517307720

$529.20

2500

Headlight Kit

517307720

$529.20

2600

Bracket | Included 2600 to 2600b

517307035

$44.58

2600a

Insert M5 X 0.8

293450268

$1.95

2700

Torx Screw M5 X 14

250000742

$1.20

2800

Hex. Flange Nut M5

233151414

$0.46

2900

Torx Screw M5 X 20

250000724

$1.39

3870a

LH Front Hood Foam

517305764

$11.54

3870b

RH Hood Foam

517306001

$11.54

3870c

LH Hood Foam

517306002

$11.54

3870j

RH Front Hood Foam

517305763

$11.54
