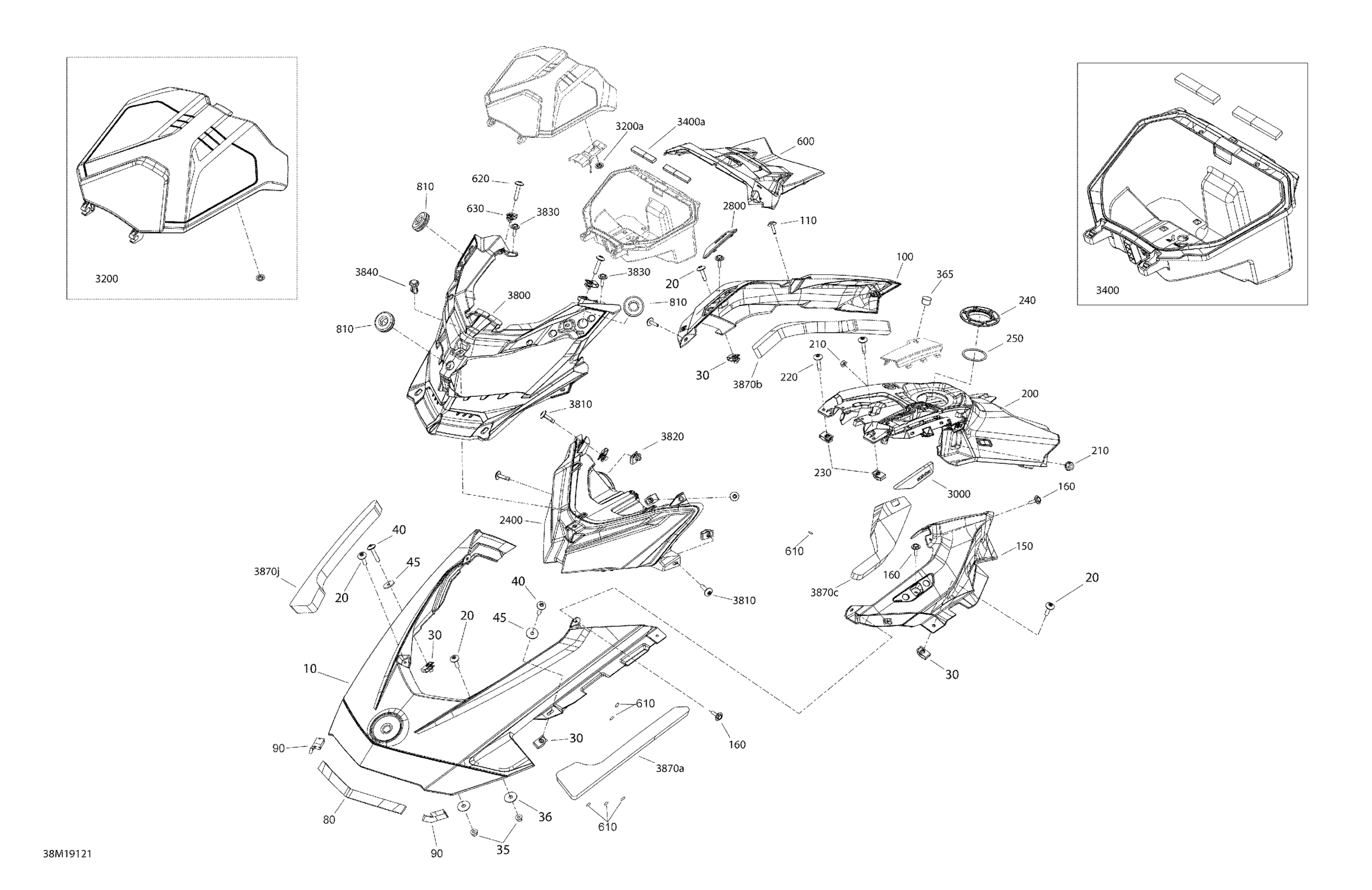

Ski-Doo MXZ 600 RACING, 2019 Hood - 600 Racing - Europe - Hood Diagram

#

Description
Price

10

Deep Black, Front Hood

517307291

$192.51

20

Torx Screw M5 X 20

250000528

$2.00

30

Panel Nut M5 X 0.8

250000958

$4.00

35

Hex. Flange Nut M5

233151414

$0.52

36

Flat Washer

250200040

$1.76

40

Torx Screw M5 X 26

250000587

$4.15

45

Washer

250200166

$2.00

80

Front Hood Foam

517306592

$11.19

90

Hood Foam

517306593

$11.15

100

Black, RH Hood | Deep Black

517306722

$188.03

110

Screw M4 X 16

250000725

$3.30

150

Black, LH Hood | Deep Black

517306721

$202.96

160

Screw M4 X 16

250000725

$3.30

200

Rear Console

517307685

$172.36

210

Flange Elastic Nut M5

233251434

$1.91

220

Torx Screw M5 X 26

250000587

$4.15

230

Panel Nut M5 X 0.8

250000958

$4.00

240

Console Nut

517306602

$10.88

250

O-Ring

706002839

$0.96

365

Cap

572051500

$5.22

600

Indicator Support

517305782

$9.73

610

Adhesive Patch

518325560

$4.21

620

Torx Screw M5 X 26

250000587

$4.15

630

Panel Nut M5 X 0.8

250000958

$4.00

810

Grommet

517303756

$3.61

2400

Headlight Kit

517307720

$513.40

2500

Headlight Kit

517307720

$513.40

2800

RH Hood Plate

517306049

$11.19

3000

LH Hood Plate

517306050

$11.19

3200

Cover Ass'y | Includes 3200 to 3200c

517307562

$17.88

3200a

Push Nut

732610072

$1.97

3400

Trunk Ass'y | Includes 3400 to 3400b

517306058

$17.88

3400a

Seal Joint

517305157

$2.21

3800

Deep Black, Headlamp Fairing

517305746

$58.18

3810

Torx Screw M5 X 20

250000528

$2.00

3820

Panel Nut M5 X 0.8

250000958

$4.00

3830

Screw M4 X 16

250000725

$3.30

3840

Tuflok Plastic Rivet

293150230

$1.39

3870a

LH Front Hood Foam

517305764

$11.19

3870b

RH Hood Foam

517306001

$11.19

3870c

LH Hood Foam

517306002

$11.19

3870j

RH Front Hood Foam

517305763

$11.19
