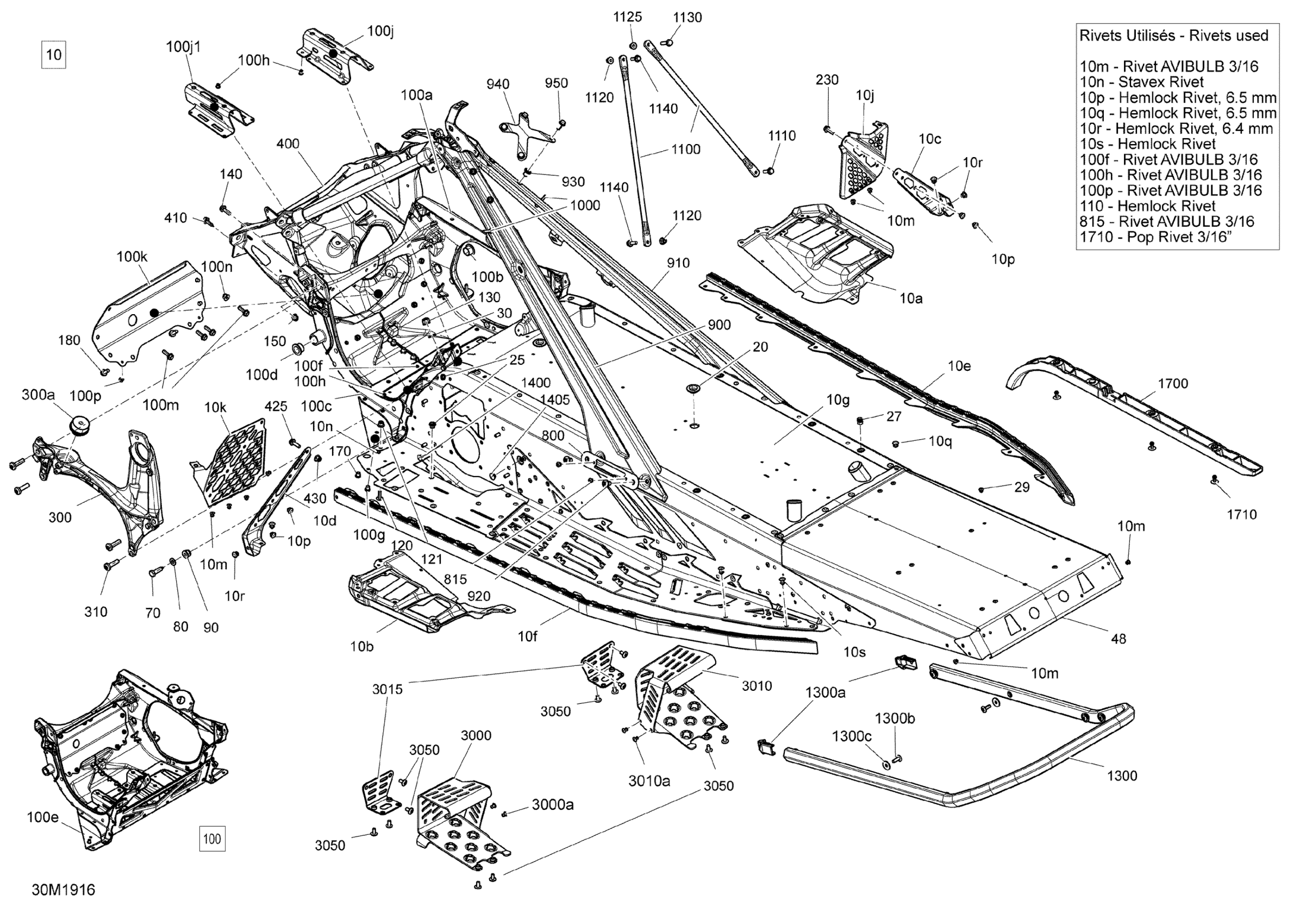

Ski-Doo 004 - MXZ 600 RACING, 2019 09- Frame - 600 Racing Diagram

MODULE CHASSIS TUNNEL 137 INCH B-282 - Call your local BRP dealership | Includes 10 to 10s

415130278

Unavailable

Deep Black, RH Footrest Reinforcement

518330738

$88.99

Deep Black, LH Footrest Reinforcement

518331523

$88.99

RH Footrest Reinforcement

518330072

$19.99

Deep Black, LH Chasssis Reinforcement

518331560

$19.99

RH Roller

518329023

$194.99

LH Roller

518329024

$194.99

Radiator Ass'y

518331175

$720.49

RH Footrest

518328460

$44.99

LH Footrest

518333007

$40.99

Rivet Avibulb 3/16

293150203

$2.09

Stavex Rivet

293150144

$0.82

Hemlock Rivet, 6.5 mm

293150096

$3.27

Hemlock Rivet, 6.5 mm

293150119

$4.29

Hemlock Rivet, 6.4 mm

293150174

$7.86

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Black, Plug

293730052

$9.19

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Insert

293450275

$12.99

Washer

506151252

$3.17

Hex Screw M8 X 30

250000942

$1.15

Flat Washer 8 mm

234081410

$0.83

Hex. Flange Elastic Nut M8

233281414

$1.47

Engine Chassis Module | Includes 100 to 100s

518334278

$729.99

RH Member Ass'y | Includes 100a to 100b

518330545

$229.99

Leg Cushion

505073317

$8.66

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$204.99

Leg Cushion

505073317

$8.66

Bottom Plate

518331661

$36.99

Rivet Avibulb 3/16

293150203

$2.09

Insert M5 X 0.8

293450268

$2.09

Rivet Avibulb 3/16

293150203

$2.09

RH Cross Link

518329814

Unavailable

LH Cross Link

518330641

Unavailable

Front Member

518330100

$60.99

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Rivet Avibulb 3/16

293150203

$2.09

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Tork Screw M6 X 18

250000536

$2.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Insert M5 X 0.8

293450268

$2.09

Hex. Flange Screw M6 X 16

207661646

$1.36

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

Brace Ass'y | Includes 300 to 300b

518330166

$349.99

Rubber Mount

512061284

Unavailable

Screw-Pan HD.Torx M8X30

250001060

$0.82

Chassis Suspension Module

518333318

$859.99

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.39

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Member Fixation Plate

518329480

$12.99

Rivet Avibulb 3/16

293150203

$2.09

LH Rear Diagonal Cross Member Ass'y

518334034

$119.99

Deep Black, RH Rear Diag. Cross Member Ass'y

518334035

$119.99

Pan Head Torx Screw M8 X 12

250000887

$1.90

Insert

293450275

$12.99

Brace Rear Member

518329499

$16.99

Hex. Flange Screw M6 X 16

207661644

$0.74

Stud M5 X 20

250300629

$2.09

Upper Colomn Support

518329974

$22.49

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Hex. Flange Screw M6 X 25

207662544

$0.64

Hex. Flange Screw M6 X 20

207662044

$2.00

Rear Bumper | Includes 1300 to 1300b

518328746

$116.99

Cap

520001612

$10.99

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

Flat Washer

224061201

$1.37

Black, Dart 8 mm

293730047

$2.21

Black, Dart 10 mm

293730060

$4.55

Front Protector

518329982

$18.49

Pop Rivet 3/16”

293150108

$1.19

LH Footrest Ass'y | Includes 5000a to 5000a1a2

518331019

$219.99

Avex Rivet

390909100

$0.30

RH Footrest Ass'y | Includes 5000b to 5000b1a

518331020

$219.99

Avex Rivet

390909100

$0.30

Support

518329838

$33.99

Torx Truss Screw M6 X 12

250000767

$2.00
