Description

Price

10a

Runner

503195317

$309.99

10b

Black, Slider 146

503191499

$34.99

10c

Phillips Screw M6 X 25

208562531

$2.11

10d

Elastic Stop Nut M6

232561414

$0.55

10e

Rail Reinforcement

503194559

$109.99

10f

Hex. Flange Screw M6 x 20

207662056

$1.01

20

Runner Decal

516007816

$11.99

200

Runner Protector

503192299

$24.99

220

Washer

250200140

$1.01

230

Hex. Flange Screw M5 X 25

207652544

$0.50

240

Flange Elastic Nut M5

233251434

$2.00

300

Rubber Stopper

503190576

$12.99

305

Washer

503191273

$1.35

306

Pop Rivet 3/16

293150224

$1.01

310

Rail Stopper

503190263

$7.69

316

Torx Screw M5 X 14

250000742

$1.47

610

Rear Axle

503193692

$139.99

620

Center Spacer

503156000

$12.01

630

Bushing

503193693

$17.39

660

Spacer

503193694

$38.99

670

Wheel 165" | Includes 670 to 670b

503194127

$51.99

670a

Ball Bearing

293350115

$12.11

670b

Retaining Ring

415129371

$12.01

730

Nut

503193695

$27.49

735

Nut

503193696

$25.99

900

Tensioner

503193697

$40.99

920

Socket Head Screw

205009087

$11.60

930

Elastic Locking Nut M10

233601466

$2.11

940

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

1000

Limit Axle

503192715

$83.99

1020

Washer

503192496

$0.77

1030

Socket Head Screw M10 X 35

205503554

$7.51

1050

Stopper Strap

503192360

$20.99

1060

Flat Washer 8 mm

250200128

$4.44

1070

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

1080

Elastic Flange Nut M8

233281466

$1.01

1090

Pivot Axle

503193435

$39.99

1110

Flat Washer

250200143

$3.17

1120

Bolt M10 X 251MM

503193227

$17.29

1130

Flange Elastic Nut M10

233201466

$3.17

1140

Axe

503195355

$48.99

1150

Washer

503192496

$0.77

1160

Socket Head Screw M10 X 35

205503554

$7.51

1500

Reinforcement

503194129

$104.99

1510

Washer

503192494

$3.17

1520

Hex. Cap Screw M8 X 30

207183054

$4.44

1530

Elastic Flange Nut M8

233281466

$1.01

1540

Limit Axle

503192715

$83.99

1550

Washer

503192496

$0.77

1560

Socket Head Screw M10 X 35

205503554

$7.51

1570

Cam Axle

503194161

$249.99

1575

Plate

503194162

$28.99

1576

Plate

503194163

$28.99

1580

Washer

503192491

$4.54

1590

Socket Head Screw Scotch Grip Din.912

205523587

$2.11

1600

Lock Washer M6, Black

234161471

$0.53

1610

Socket Head Screw M6 X 12

205061260

$1.58

2000

Front Arm Ass'y | Includes 2000 to 2000b

503195324

$466.49

2000a

Bushing

503191554

$6.14

2000b

Swivel Bushing

503191555

$7.83

2010

Bushing

503192721

$35.99

2020

Slide Bushing

503192713

$98.49

2024

Washer

514053953

$0.77

2025

Axle

503195016

$222.49

2026

Socket Head Screw M10 X 35

205503554

$7.51

2027

Socket Head Screw M6 X 25

205062560

$1.69

2028

Flange Elastic Nut M6

233261434

$4.44

2029

Interlock Rivet 3/16''

293150194

$1.04

2030

Washer

503192496

$0.77

2050

Hex. Screw M10 X 65, Scotch Grip

207206534

$7.51

2070

Lower Axle

503191966

$15.89

2090

Washer

503190656

$2.96

2100

Washer

503192491

$4.54

2110

Hex. Cap Screw M12 X 35

250000537

$3.17

3000f

Pivot Arm

503194566

$19.99

3000k

Grease Fitting

408200700

$3.49

3190

Pivot Arm Axle

503189156

$21.99

3200

Washer

503192494

$3.17

3210

Bolt M8 X 248mm

503192440

$30.49

3220

Elastic Flange Nut M8

233281466

$1.01

4070

Socket Screw M10 X 90

205009044

$8.01

4080

Elastic Locking Nut M10

233601466

$2.11

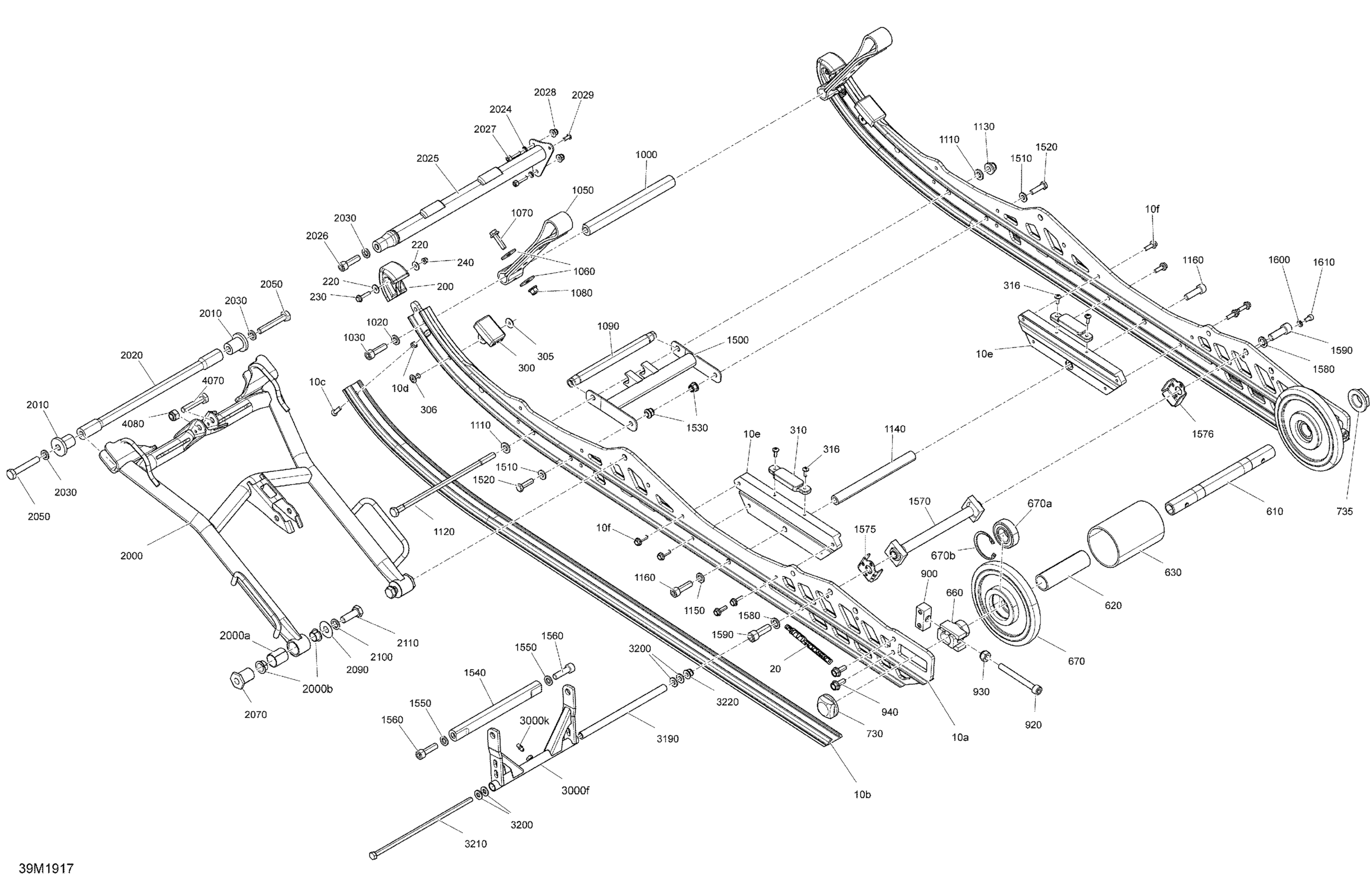

Ski-Doo 004 - MXZ 600 RACING, 2019 08- Rear Suspension - 600 Racing Lower Parts Diagram

Runner

Black, Slider 146

Phillips Screw M6 X 25

Elastic Stop Nut M6

Rail Reinforcement

Hex. Flange Screw M6 x 20

Runner Decal

Runner Protector

Washer

Hex. Flange Screw M5 X 25

Flange Elastic Nut M5

Rubber Stopper

Washer

Pop Rivet 3/16

Rail Stopper

Torx Screw M5 X 14

Rear Axle

Center Spacer

Bushing

Spacer

Wheel 165" | Includes 670 to 670b

Ball Bearing

Retaining Ring

Nut

Nut

Tensioner

Socket Head Screw

Elastic Locking Nut M10

Hex. Flange Screw M8 X 20, Scotch Grip

Limit Axle

Washer

Socket Head Screw M10 X 35

Stopper Strap

Flat Washer 8 mm

Hex. Flange Screw M8 X 30 | DS 650 X

Elastic Flange Nut M8

Pivot Axle

Flat Washer

Bolt M10 X 251MM

Flange Elastic Nut M10

Axe

Washer

Socket Head Screw M10 X 35

Reinforcement

Washer

Hex. Cap Screw M8 X 30

Elastic Flange Nut M8

Limit Axle

Washer

Socket Head Screw M10 X 35

Cam Axle

Plate

Plate

Washer

Socket Head Screw Scotch Grip Din.912

Lock Washer M6, Black

Socket Head Screw M6 X 12

Front Arm Ass'y | Includes 2000 to 2000b

Bushing

Swivel Bushing

Bushing

Slide Bushing

Washer

Axle

Socket Head Screw M10 X 35

Socket Head Screw M6 X 25

Flange Elastic Nut M6

Interlock Rivet 3/16''

Washer

Hex. Screw M10 X 65, Scotch Grip

Lower Axle

Washer

Washer

Hex. Cap Screw M12 X 35

Pivot Arm

Grease Fitting

Pivot Arm Axle

Washer

Bolt M8 X 248mm
