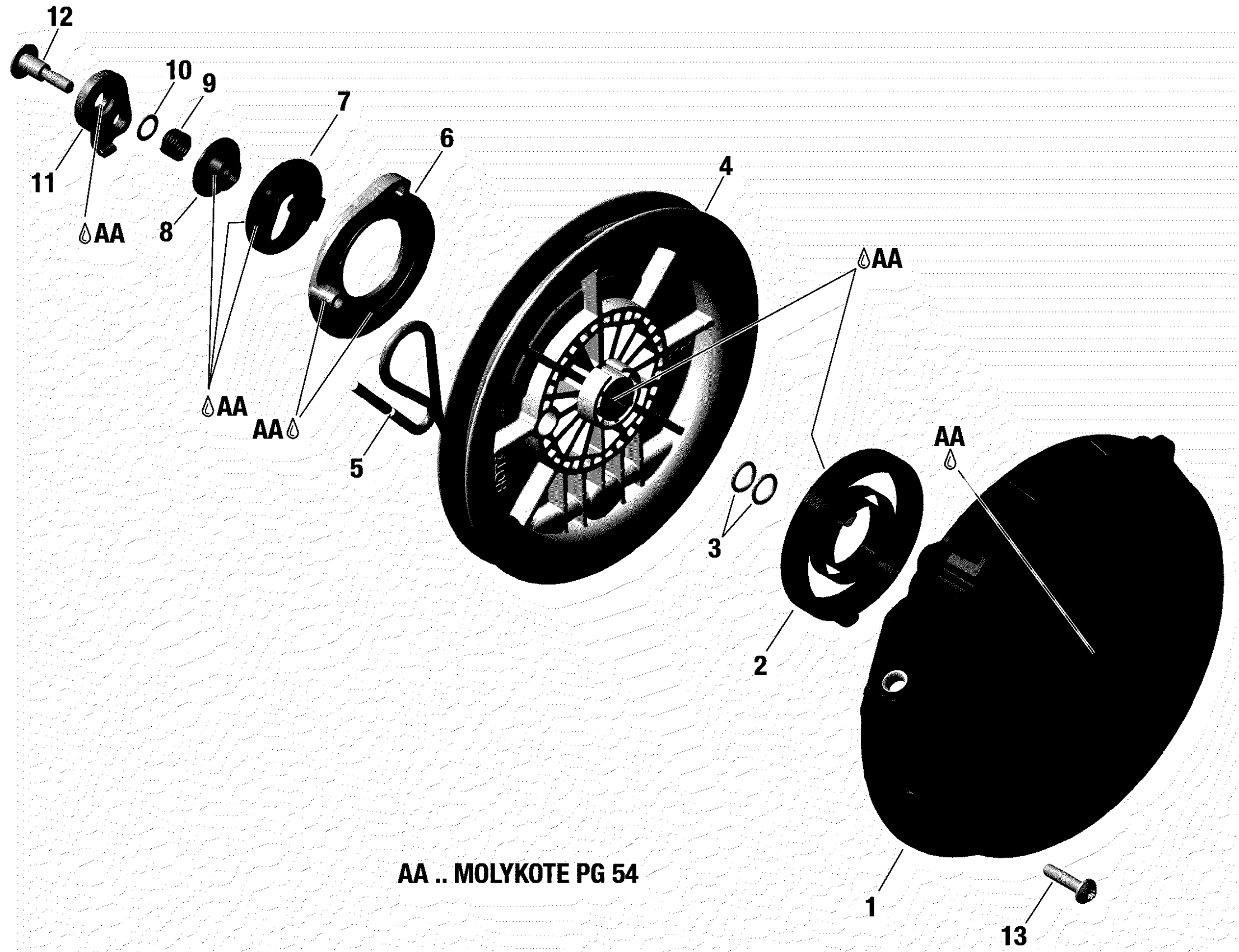

Ski-Doo MXZ 600 RACING, 2019 Rewind Starter - 598 RS Diagram

#

Description
Price

1>11

Rewind Starter Ass'y

420893767

$227.99

1

Starter Housing | Includes no. 1-12

420912121

$94.99

2

Rewind Spring

420939115

$30.49

3

O-Ring

420950811

$4.44

4

Sheave

420852015

$41.49

5

Was 412500100 Rope-Starter

219704403

$158.99

6

Pawl

420852639

$33.99

7

Pawl Lock | Includes no. 8-9

420852640

$6.99

8

Step Collar

420847928

$14.83

9

Compression Spring

420238962

$6.39

10

Thrust Washer

420227948

$2.00

11

Lock Lever

420852523

$8.57

12

Bearing Screw M6 X 12.5

420440502

$3.17

13

Plastite Screw

420940431

$7.65
