Description

Price

1

Ball Bearing

420232100

$17.88

2>8

Water Pump Shaft Ass'y | Except SHOT This part replaces 420891479.

420891483

$270.87

3

Step Collar

420847933

$36.54

4

Oil Seal

420230198

$14.90

5

Ball Bearing

420232100

$17.88

6

Rotary Seal

420650371

$41.01

7

Not Available As Spare Part - Friction Washer

Unavailable

8

O-Ring

420950890

$4.15

9

Allen Screw M5 x 16

420840514

$1.79

10

Cover Washer

420944035

$5.06

11

Impeller

420222507

$17.13

12

Gasket | Included in gasket kit

420931813

$13.04

13

Water Pump Housing

420933633

$58.18

14

Torx Flange Screw M6 X 25

420440234

$2.91

15

Molded Hose This part replaces 420822803.

420822805

$70.12

16

Gear Clamp

420951293

$8.09

17

Thermostat Housing

420822837

$73.10

18

O-Ring

420430062

$2.00

19

Spring Clip

420939344

$2.00

20

Return Hose

420822820

$10.21

21

Clamp 34.9-38.1MM

420951123

$4.15

22

Tie Rap 200 X 4.6

420951652

$6.07

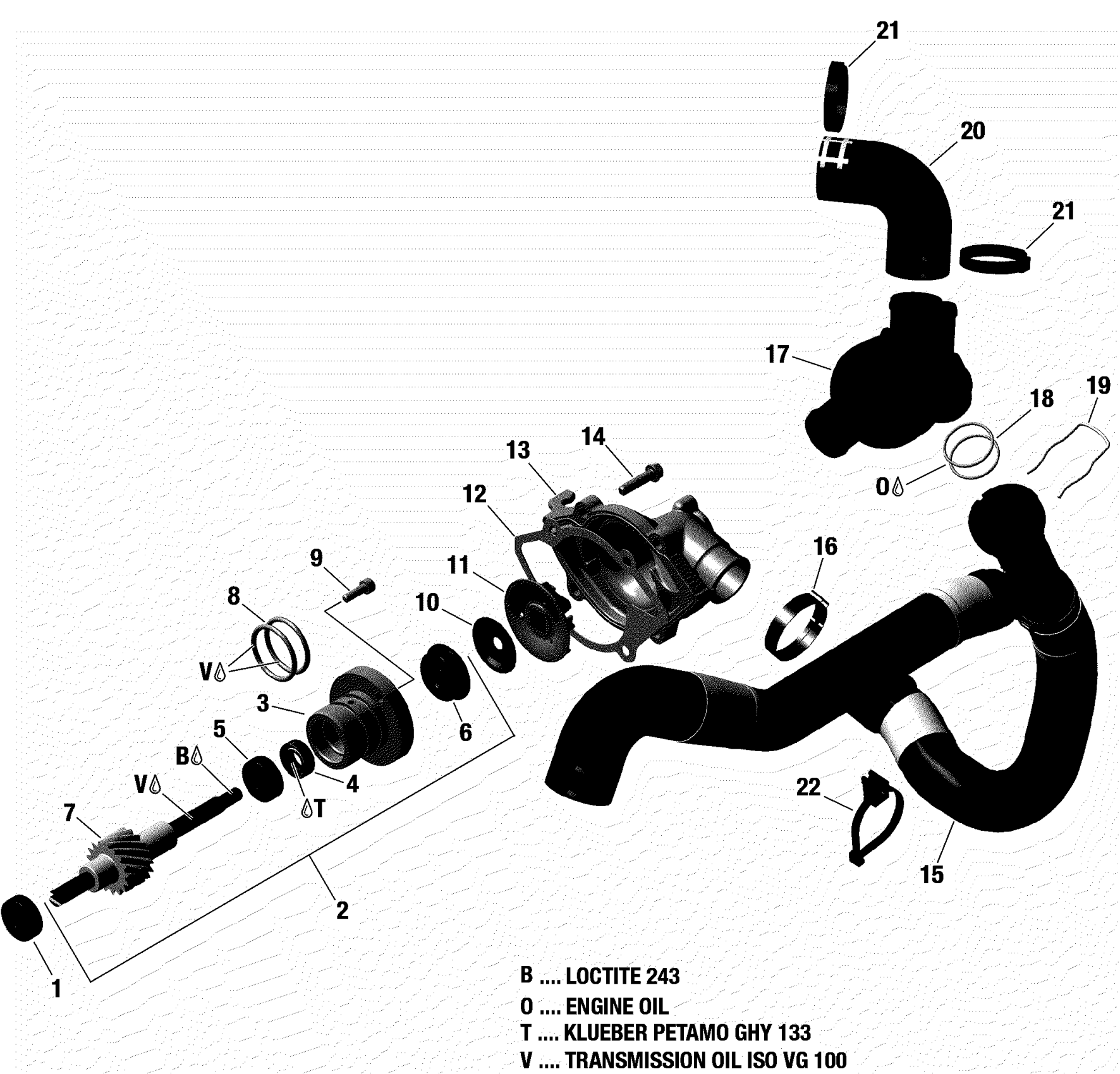

Ski-Doo MXZ 600 RACING, 2019 Engine Cooling - 598 RS Diagram

Ball Bearing

Water Pump Shaft Ass'y | Except SHOT This part replaces 420891479.

Step Collar

Oil Seal

Ball Bearing

Rotary Seal

Not Available As Spare Part - Friction Washer

O-Ring

Allen Screw M5 x 16

Cover Washer

Impeller

Gasket | Included in gasket kit

Water Pump Housing

Torx Flange Screw M6 X 25

Molded Hose This part replaces 420822803.

Gear Clamp

Thermostat Housing

O-Ring

Spring Clip

Return Hose

Clamp 34.9-38.1MM

Tie Rap 200 X 4.6
