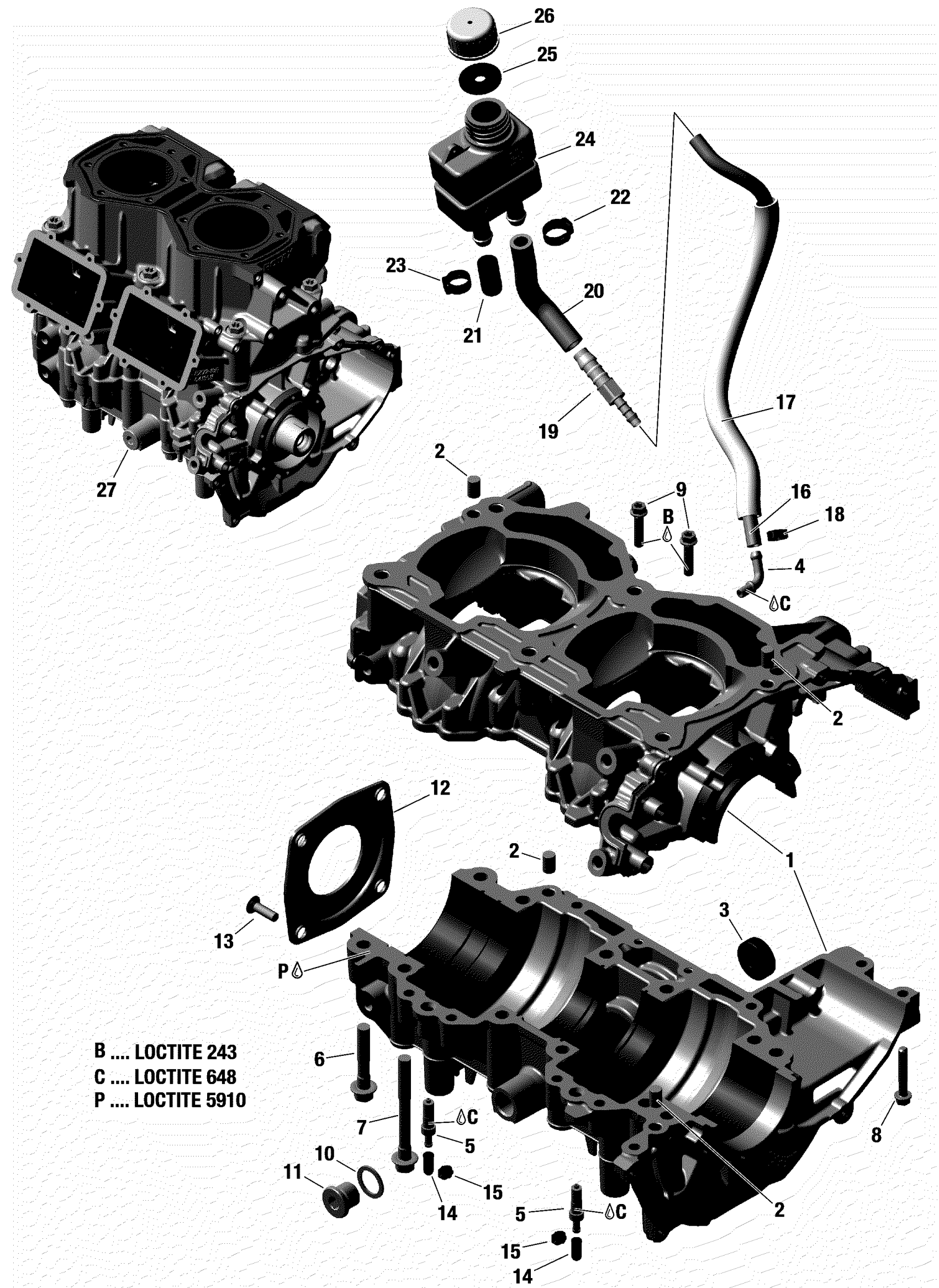

Ski-Doo MXZ 600 RACING, 2019 Crankcase - 598 RS Diagram

#

Description
Price

1>5, 14,15

Crankcase Ass'y

420686671

$1,091.76

2

Center Pin 8 X 12

420632010

$3.52

3

Ball Bearing

420232100

$17.88

4

Impulse Fitting

420924529

$8.09

5

Check Valve

420956071

$23.10

6

Hex. Collar Screw M8 x 45

420640432

$1.88

7

Hex. Collar Screw M8 x 75

420640832

$1.88

8

Torx Flange Screw M6 X 35

420440274

$0.96

9

Torx Flange Screw M6 X 25

420440235

$2.00

10

O-Ring

420430622

$4.15

11

Plug Screw

420640457

$14.10

12

Oil Seal Cover

420812422

$14.10

13

Screw M6 X 20

420941436

$2.72

14

Closure Cap

420960771

$4.16

15

Clamp 5.8-7.0MM

420853138

$2.00

16

Oil Line 310MM

420201551

$7.09

17

Protector Tube

420460047

$12.15

18

Clamp

420853653

$7.01

19

Fitting

420874370

$14.10

20

Oil Line 105MM

420456530

$7.09

21

Closure Cap

420960279

$4.16

22

Clamp

420853308

$5.06

23

Clamp

420851458

$7.01

24>26

Oil Tank Ass'y | Includes 25 to 27

420956240

$67.88

25

Rubber Gasket

420850350

$5.06

26

Oil Tank Cap

420956250

$13.18

27

Not Available As Spare Part - Friction Washer

Unavailable
