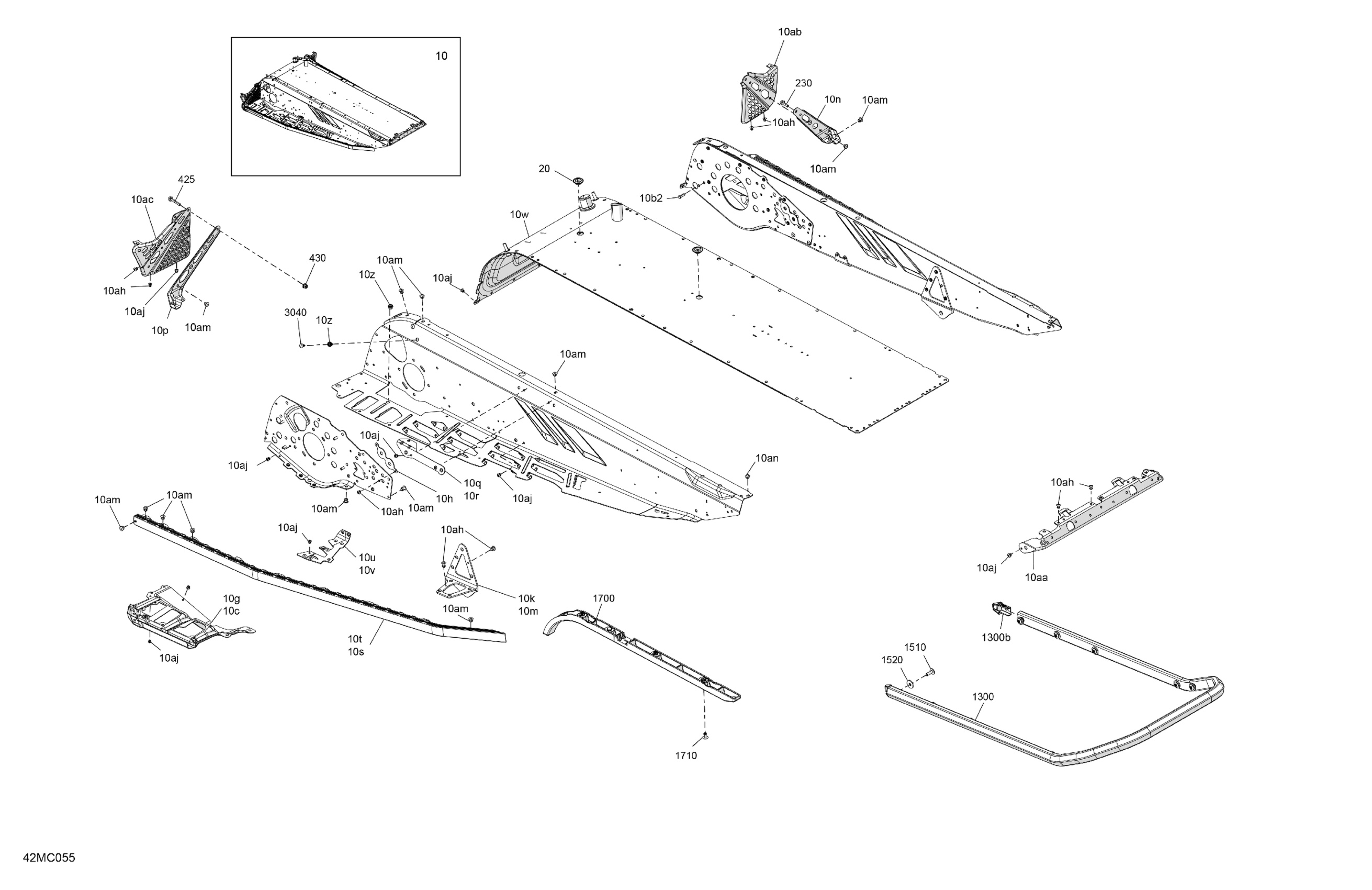

Ski-Doo 004 - MXZ 600 EFI - 40 - NEO - Europe, 2023 06- Frame - System - Rear Section Diagram

Description

Price

Full Moon, Chassis Tunnel Module 120" | Includes 10 to 10an

518333811

Unavailable

10b2

Clinch Stud M6 X 20

250300027

$2.09

10c

Deep Black, LH Footrest Reinforcement

518331523

$88.99

10g

Deep Black, RH Footrest Reinforcement

518330738

$88.99

10h

Front Suspension Arm Reinforcement

518327233

$4.69

10k

LH Rear Suspension Anchorage

518334228

Unavailable

10m

RH Rear Suspension Anchorage

518334227

Unavailable

10n

Stirrup Reinforcement

518334507

$21.99

10p

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10q

LH Under Chassis Reinforcement

518331744

$18.99

10r

RH Under Chassis Reinforcement

518331745

$19.99

10s

RH Roller

518328451

$194.99

10t

LH Roller

518328452

$194.99

10u

LH Footrest Reinforcement

518332296

$21.99

10v

RH Footrest Reinforcement

518332297

$21.99

10w

Radiator Tunnel 120 Ass'y

518334496

$739.99

10z

Clinch Nut M6 Hexsert

605636003

$4.23

10aa

Rear Cap

518328990

$22.49

10ab

RH Footrest

518333006

$40.99

10ac

LH Footrest

518333007

$40.99

10ah

Avex Rivet

390909100

$0.30

10aj

Avex Rivet

390909200

$0.30

10am

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10an

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Black, Plug

293730052

$9.19

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 X 20

207562056

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1300

Rear Bumper 120 | Includes 1300 to 1300b

518331613

$111.99

1300b

Insert

293450275

$12.99

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

1520

Flat Washer

224061201

$1.37

1700

Front Protector

518329982

$18.49

1710

Pop Rivet 3/16”

293150108

$1.19

3040

Dart

293730079

$2.09
