Description

Price

10a

Deep Black, LH Pilot 5.7 Ski

505072854

$179.99

10b

Retainer 17mm long

505071812

$5.95

10c

Neo Yellow, Ski Handle

505075454

$35.99

10d

Retainer 23mm Long

505072133

$6.78

10f

Round Carbide Runner Kit

860202180

$92.99

10g

Hex. Flange Elastic Nut M8

233281414

$1.47

20a

Deep Black, RH Pilot 5.7 Ski

505072855

$164.49

20b

Retainer 17mm long

505071812

$5.95

20c

Neo Yellow, Ski Handle

505075454

$35.99

20d

Retainer 23mm Long

505072133

$6.78

20f

Round Carbide Runner Kit

860202180

$92.99

20g

Hex. Flange Elastic Nut M8

233281414

$1.47

200

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

210

Ski Axle

505073691

$14.22

300

Neo Yellow, LH Ski Leg +6

505075462

$279.99

310

Neo Yellow, RH Ski Leg +6

505075463

$279.99

320

Leg Bushing

505072690

$12.49

330

Spacer

505074949

$2.19

400

LH Lower Arm 39

505075152

$204.99

410

RH Lower Arm 39

505075153

$204.99

420

Bushing

505072208

$3.28

430

Bushing

505075323

$4.02

440

Wear Plate

505072634

$6.29

445

O-Ring

505072448

$2.32

450

Screw Hex. M10 X 70

250001024

$2.11

455

Screw Hex. M10 X 70

250001024

$2.11

470

Wear Plate

505073723

$6.19

480

Plate

505073844

$2.29

500

LH Upper Suspension Arm 39 T

505075103

$154.99

510

RH Upper Suspension Arm 39 T

505075104

$154.99

520

Bushing

505072250

$3.28

530

Bushing

505075322

$4.02

540

Screw Hex. M10 X 60

250001023

$2.11

545

Hex. Flange Elastic Nut M10

250100165

$0.85

550

Screw Hex. M10 X 60

250001023

$2.11

555

Hex. Flange Elastic Nut M10

250100165

$0.85

660

Washer

503189564

$0.74

670

Washer

505072392

$4.76

680

Hex. Flange Elastic Nut M10

250100165

$0.85

685

Hex. Flange Elastic Nut M10

250100165

$0.85

690

O-Ring

505072448

$2.32

810

Cap

517302716

$4.69

1170

Hex. Flange Screw M8 X 58

250000824

$2.11

1200

Ball Joint

505074133

$53.99

1230

Washer

503192491

$4.54

1240

Hex Elastic Nut M12 X 1.25

232521464

$2.11

1300

Circlip

293370070

$8.99

1400

Upper Ball Joint

505072913

$72.99

1410

Snap Ring

293370098

$3.17

1600a

Washer

503192496

$0.77

1600b

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

1600c

Ski Stopper

505072594

$18.49

1600d

Elastic Flange Nut M8

233281466

$1.01

1600f

Spacer

505073892

$2.29

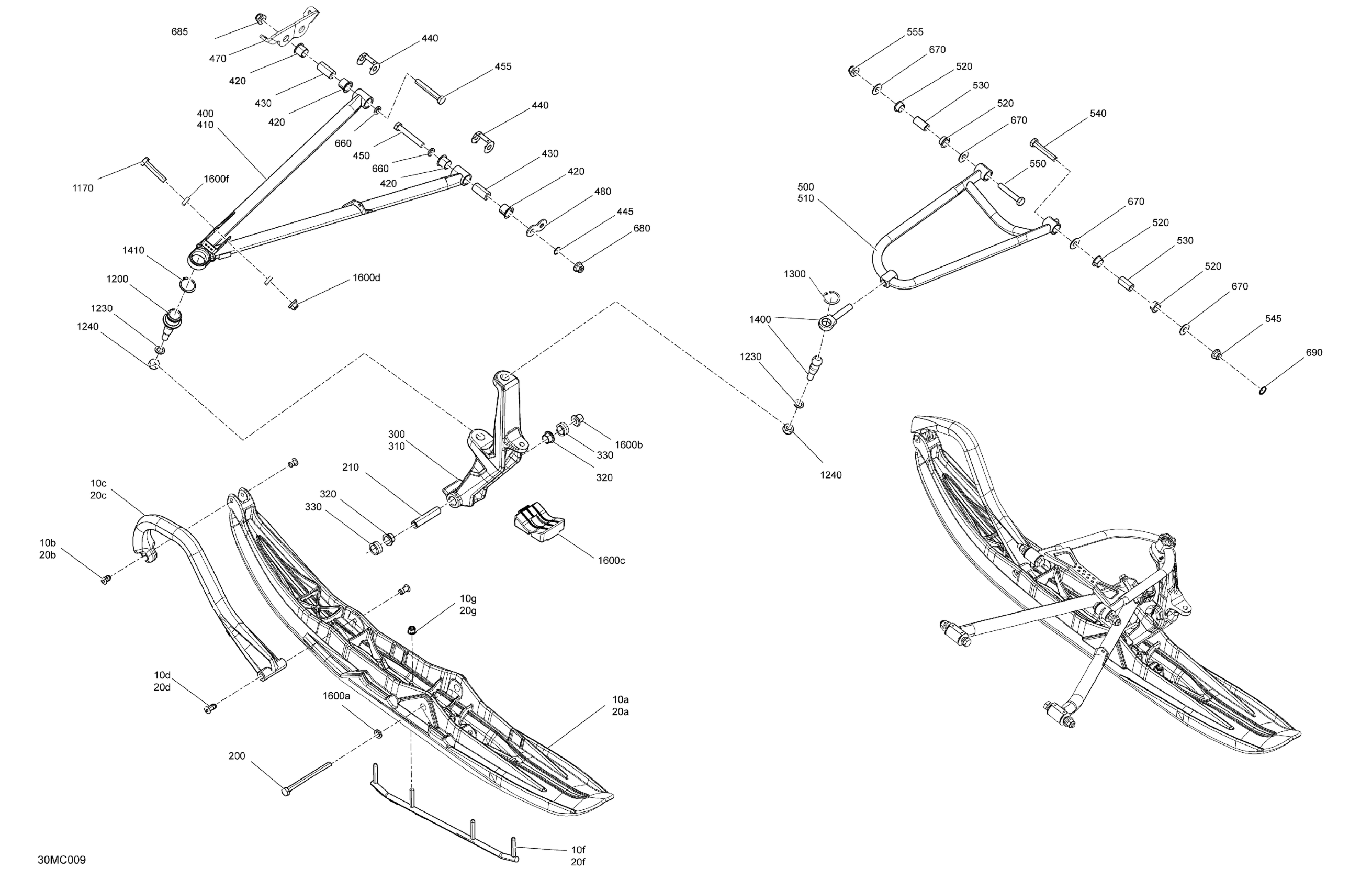

Ski-Doo 004 - MXZ 600 EFI - 40 - NEO - Europe, 2023 05- Suspension - Front Diagram

Deep Black, LH Pilot 5.7 Ski

Retainer 17mm long

Neo Yellow, Ski Handle

Retainer 23mm Long

Round Carbide Runner Kit

Hex. Flange Elastic Nut M8

Deep Black, RH Pilot 5.7 Ski

Retainer 17mm long

Neo Yellow, Ski Handle

Retainer 23mm Long

Round Carbide Runner Kit

Hex. Flange Elastic Nut M8

Hex. Screw M10 X 130 | Model-RT STD

Ski Axle

Neo Yellow, LH Ski Leg +6

Neo Yellow, RH Ski Leg +6

Leg Bushing

Spacer

LH Lower Arm 39

RH Lower Arm 39

Bushing

Bushing

Wear Plate

O-Ring

Screw Hex. M10 X 70

Screw Hex. M10 X 70

Wear Plate

Plate

LH Upper Suspension Arm 39 T

RH Upper Suspension Arm 39 T

Bushing

Bushing

Screw Hex. M10 X 60

Hex. Flange Elastic Nut M10

Screw Hex. M10 X 60

Hex. Flange Elastic Nut M10

Washer

Washer

Hex. Flange Elastic Nut M10

Hex. Flange Elastic Nut M10

O-Ring

Cap

Hex. Flange Screw M8 X 58

Ball Joint

Washer

Hex Elastic Nut M12 X 1.25

Circlip

Upper Ball Joint

Snap Ring

Washer

Hex. Flange Elastic M10 x 1.5

Ski Stopper

Elastic Flange Nut M8

Spacer
