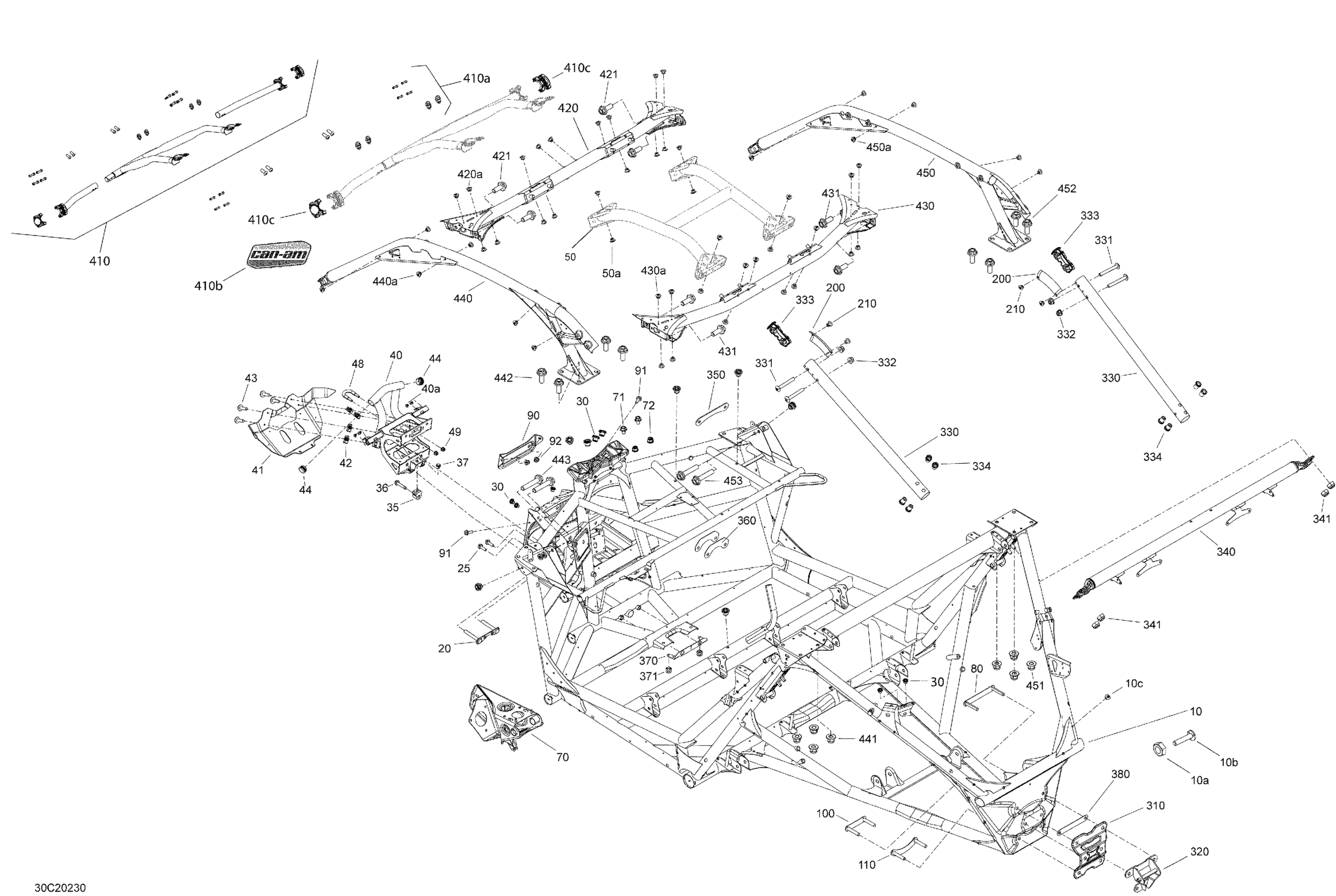

Can-Am Maverick Turbo RR - XRC - 2020 Frame Diagram

#

Description
Price

10

Orange Crush, Chassis Kit | North America

715009270

$3,459.99

10

Chassis B-337 Assy | International

715008881

$2,969.99

10a

Hexagonal Nut

233701400

$0.55

10b

Weld Pin 8mm X 40mm

250000913

$1.85

10c

Pop Rivet 3/16"

390402200

$0.30

20

Front Plate

705207424

$17.88

25

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

30

Insert Half Hex Body M6 x 1.0

250100199

$2.91

35

Bumper Link

705206992

$14.90

36

Flange Screw M12 X 60

250000857

$6.99

37

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.49

40

Orange Crush, Front Bumper | North America

715006624

$342.51

40

Orange Crush, Front Bumper | International

715006659

$550.72

40a

Pop Rivet 3/16"

390402200

$0.30

41

Front Master Plate

715006996

$188.78

41

Front Master Plate

715006996

$188.78

42

Panel Nut M6 X 1.0

250100198

$1.99

43

Torx Screw M6 X 20

250000722

$1.54

44

Cap

705202455

$4.27

48

U-Clamp

705206983

$35.04

49

Hex. Flange Elastic Nut M10

233201436

$2.00

50

Reinforcement_Cage B-337 Painted

705210211

$91.99

50a

Pop Rivet 3/16"

390402200

$0.30

70

DPS Support

705206924

$64.15

71

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.06

72

Hex. Elastic Flange Nut M8

233281416

$1.43

80

Rear Upper Plate

705206852

$18.63

90

Stifner Plate

705206877

$27.58

91

Hex. Flange Screw M6 X 16

207661654

$2.00

92

Hex. Flange Elastic Nut M6

233261494

$1.45

100

Rear Central Plate

705211558

$17.13

110

Rear Plate

705206854

$18.63

200

Connecting Plate

705208290

$10.82

210

Rivet 3/16"

293150102

$0.69

310

Rear Plate

705205750

$23.10

320

Black, Rear Attachement Hook

715004450

$85.79

320

Black, Rear Attachement Hook | International

715006661

$44.00

330

Orange Crush, Rear Tube

705208291

$24.99

331

Torx Truss M8 X 65

250000901

$1.79

332

Elastic Flange Nut M8

250100025

$1.43

333

Sleeve

705210648

$8.42

334

Insert Half Hex Body M8 x 1.25

293450307

$1.97

340

Belt Bar

705205268

$112.66

341

Elastic Stop Nut M12

232521416

$1.61

350

Connecting Plate

705211552

$4.81

360

Retaining Plate

705210249

$4.72

370

Support

706203122

$10.67

371

Pop Rivet 3/16"

390402200

$0.30

380

Front Upper Plate

705206069

$13.09

410

Black, Front Intrusion Bar | Includes 410 to 410f

715002889

$432.06

410a

Common Parts Kit | Includes 410a to 410a6

715003531

$150.72

410b

Decal "Can-Am" | Not Shown

704904566

$8.97

410c

Black, Clamp

705205709

$73.85

420

Cross Member F B-337 Painted | Includes 420 to 420a

705210230

$204.99

420a

Pop Rivet 3/16"

390402200

$0.30

421

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$5.82

430

Orange Crush, Rear Cross Member | Includes 430 to 430a

705208591

$204.99

430a

Pop Rivet 3/16"

390402200

$0.30

431

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$5.82

440

Orange Crush, LH Cage | North America

715006570

$399.99

440

Orange Crush, LH Cage | International

715006633

$399.99

440a

Pop Rivet 3/16"

390402200

$0.30

441

Hex Flange Nut m12

233121466

$0.78

442

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$5.82

443

Flange Screw M12 X 60

250000857

$6.99

450

Orange Crush, RH Cage | North America

715006572

$399.99

450

Orange Crush, Front Cage Assy | International This part replaces 715006640.

715008950

$399.99

450a

Pop Rivet 3/16"

390402200

$0.30

451

Hex Flange Nut m12

233121466

$0.78

452

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$5.82

453

Flange Screw M12 X 60

250000857

$6.99
