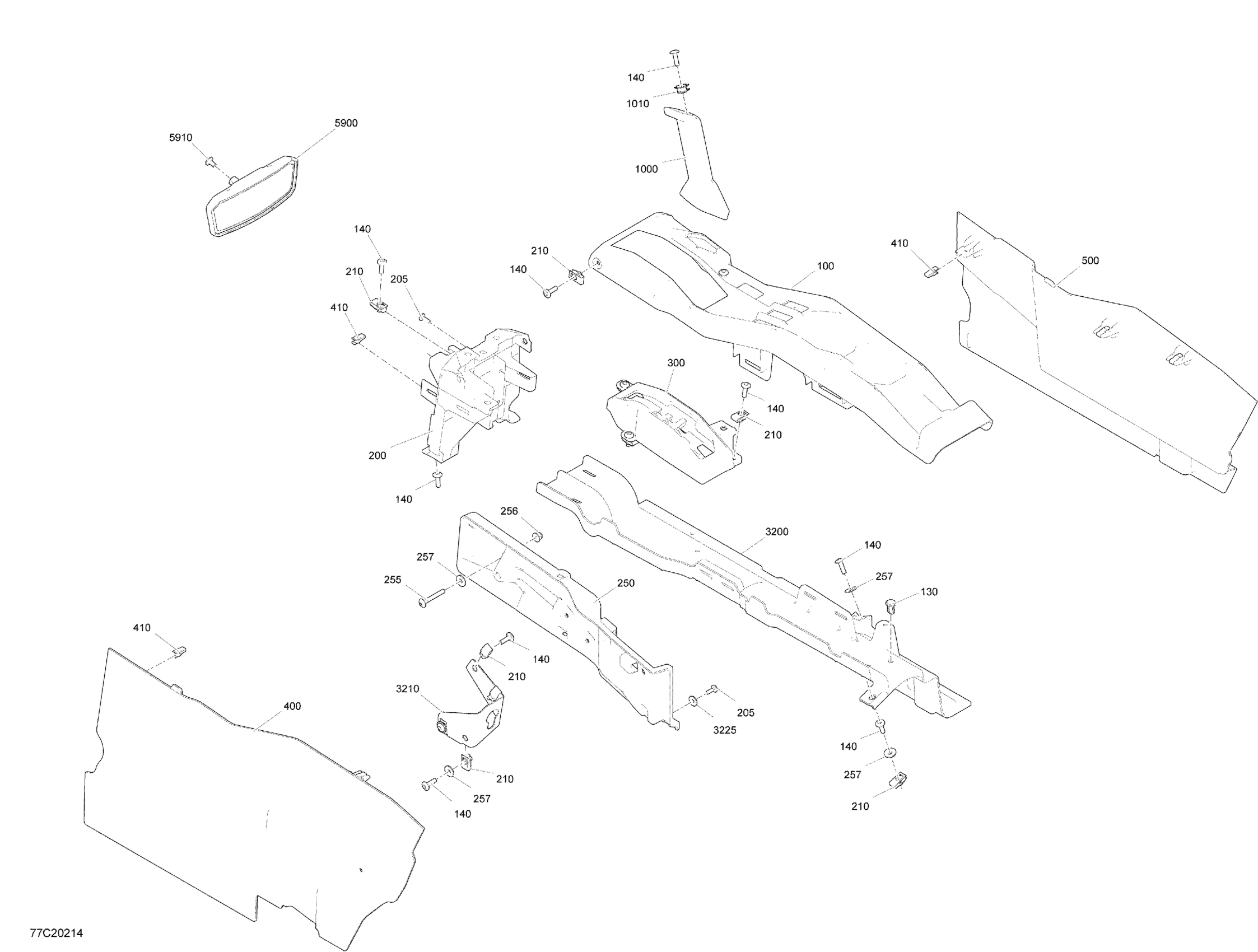

Can-Am Maverick Turbo RR - XMR - 2020 Cab Interior - Console Diagram

Description

Price

100

Front Console Kit

715005023

$137.28

130

Tuflok Plastic Rivet

293150230

$1.39

140

Torx Screw M6 X 20

250000722

$1.54

200

Front Central Console Support

707900459

$58.93

205

Torx Screw K50 X 16

250000720

$1.60

210

Panel Nut M6 X 1.0

250100198

$1.99

250

Shifter Gate Support

707900488

$23.85

255

Torx Screw M6 X 45

250000748

$1.79

256

Hex. Flange Elastic Nut M6

233261466

$1.91

257

Stainless Steel Flat Washer

234062670

$2.00

300

Lever Indicator

707900644

$22.36

400

LH Lateral Dash Panel

707900396

$66.39

410

Clip

705010721

$2.03

500

RH Lateral Dash Panel

707900397

$66.39

1000

Passenger Handle

707900011

$12.43

1010

Connector Tube

707900048

$5.52

3200

Central Support Hose

707900710

$44.75

3210

Cable Support

707900478

$10.82

3225

Washer M5

250200025

$0.70

5900

Central Mirror

707900502

$52.96

5910

Torx Truss Screw M6 X 12

250000767

$1.91
