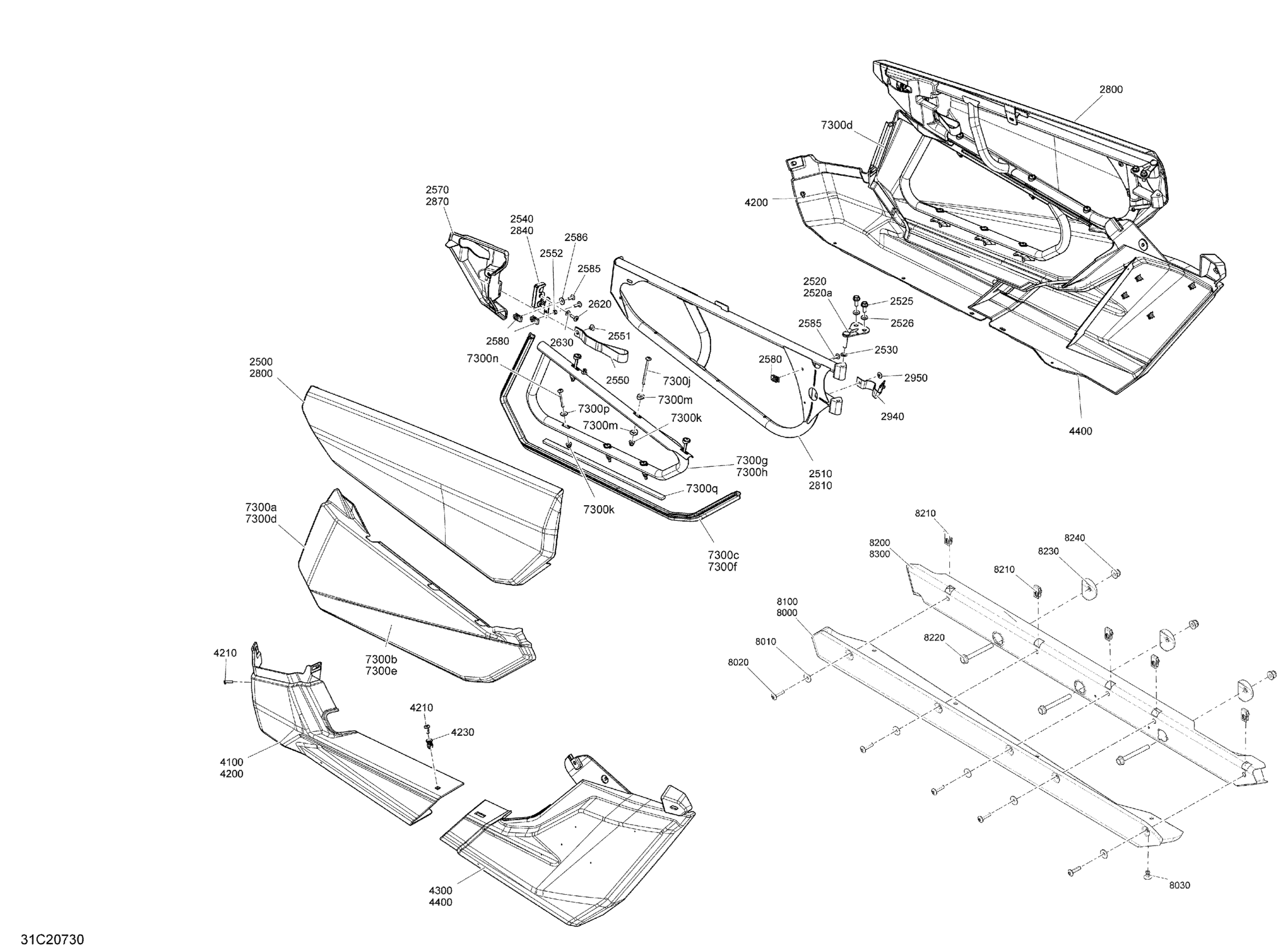

Can-Am Maverick Turbo RR - XRC - 2020 Body - Door Section - XRC Diagram

#

Description
Price

2500

Carbon Black, LH Front Door Panel

705014333

$187.66

2510

Door Frt Lh B-337 Painted

705016016

$232.28

2520

Door Support

705011187

$10.98

2525

Hex Screw Washer Head M8 X 20

207582054

$2.61

2526

Flat Washer M8

234081430

$1.74

2530

Flat Washer 8 mm, Nylon

234081100

$1.00

2540

LH Latch

705013095

$55.35

2550

Belt

293850135

$14.75

2551

Pop Rivet 3/16"

293150103

$0.54

2552

Bushing | DS 650 X

293900104

$5.26

2570

LH Latch Cover

705013535

$36.89

2580

Panel Nut M6 X 1.0

250100198

$1.73

2585

Torx Truss Screw M6 X 16

250000721

$1.39

2586

Stainless Steel Flat Washer

234062670

$1.74

2590

Pop Rivet 3/16"

293150103

$0.54

2610

Panel Nut M6 X 1.0

250100198

$1.73

2620

Torx Screw M6 X 20

250000722

$1.34

2630

Flat Washer

224061121

$0.44

2800

Carbon Black, RH Front Door Panel

705014339

$187.66

2810

Orange Crush, RH Front Door

705014090

$232.28

2840

RH Latch

705013096

Unavailable

2870

RH Latch Cover

705013536

$36.89

2940

Door Belt

293850129

$15.35

2950

Pop Rivet 3/16"

293150103

$0.54

3000

RH Lower Door Panel

705010733

$59.97

4100

Orange Crush, LH Front Lower Body Panel

705014105

$69.20

4200

Orange Crush, LH Lower Body Panel

705014106

$69.20

4210

Torx Screw M6 X 20

250000722

$1.34

4230

Insert

705016606

$2.31

4300

Orange Crush, LH Rear Lower Body Panel

705014107

$110.74

4400

Orange Crush, RH Rear Lower Body Panel

705014108

$110.74

7300a

Door Panels | Includes 7300 to 7300m

715002903

$449.97

7300b

LH Side Door Decal

704907652

$36.89

7300b

RH Side Door Decal

704907653

$36.89

7300c

Door Seal

705012018

$18.43

7300d

Black, LH Door Frame

705012750

$124.58

7300d

Black, RH Door Frame | Includes 7300f to 7300p

705012751

$124.58

7300e

Torx-Truss M/S M6 X 80

250000902

$2.60

7300f

Hex. Flange Elastic Nut M6

233261494

$1.26

7300g

Offset Washer

705202223

$4.98

7300h

Torx Truss Screw M6 X 50

250000749

$3.11

7300j

Stainless Steel Flat Washer

234062670

$1.74

7300k

Neoprene Seal (1PAC=3M)

219704364

$22.72

8000

Orange Crush, LH Lower Body Panel

705014106

$69.20

8010

Flat washer M6

250200164

$0.83

8020

Torx Truss Screw M6 X 25

250000807

$1.74

8030

Pop Rivet 3/16”

293150108

$1.23

8100

Orange Crush, RH Body Panel Guard

705014110

$115.35

8200

LH Lateral Structure

705012774

$209.20

8210

Panel Nut M6 X 1.0

250100198

$1.73

8220

Hex. Flange Screw M8 X 70

207687044

$6.11

8230

Saddle Washer

705205462

$5.52

8240

Elastic Flange Nut M8

233281464

$0.83

8300

RH Lateral Structure

705012775

$209.20
