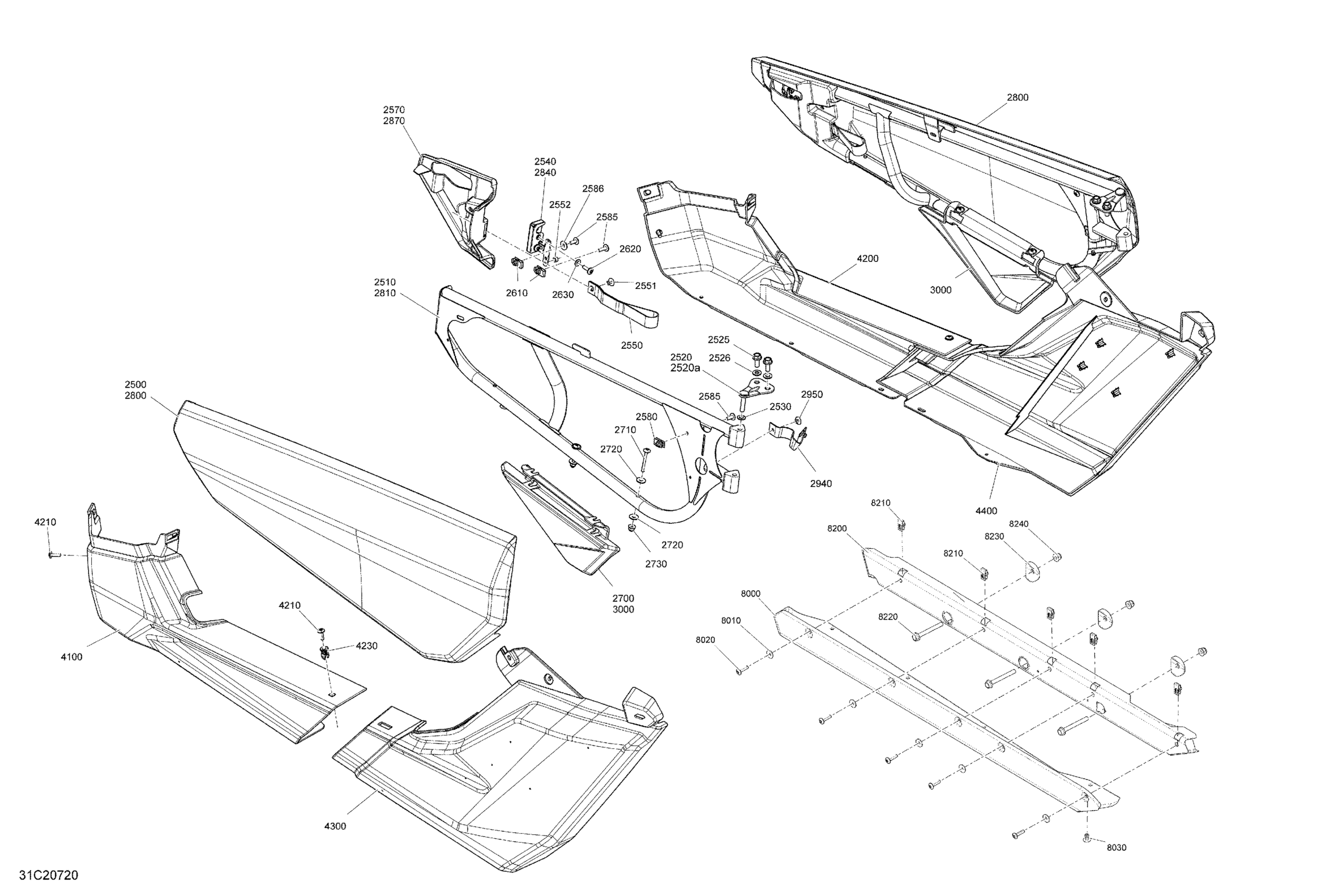

Can-Am Maverick Turbo - XRC - 2020 Body - Door Section - XRC - Orange Diagram

Carbon Black, LH Front Door Panel

705014333

$187.66

Door Frt Lh B-337 Painted

705016016

$232.28

Door Support

705011187

$10.98

Hex Screw Washer Head M8 X 20

207582054

$2.61

Flat Washer M8

234081430

$1.74

Flat Washer 8 mm, Nylon

234081100

$1.00

LH Latch

705013095

$55.35

Belt

293850135

$14.75

Pop Rivet 3/16"

293150103

$0.54

Bushing | DS 650 X

293900104

$5.26

LH Latch Cover

705013535

$36.89

Panel Nut M6 X 1.0

250100198

$1.73

Torx Truss Screw M6 X 16

250000721

$1.39

Stainless Steel Flat Washer

234062670

$1.74

Pop Rivet 3/16"

293150103

$0.54

Panel Nut M6 X 1.0

250100198

$1.73

Torx Screw M6 X 20

250000722

$1.34

Flat Washer

224061121

$0.44

LH Lower Door Panel

705010732

$53.82

Torx Truss Screw M6 X 50

250000749

$3.11

Stainless Steel Flat Washer

234062670

$1.74

Hex. Flange Elastic Nut M6

233261466

$1.66

Carbon Black, RH Front Door Panel

705014339

$187.66

Deep Black, RH Front Door

705018470

$145.35

Orange Crush, RH Front Door

705014090

$232.28

RH Latch

705013096

Unavailable

RH Latch Cover

705013536

$36.89

Door Belt

293850129

$15.35

Pop Rivet 3/16"

293150103

$0.54

RH Lower Door Panel

705010733

$59.97

Orange Crush, LH Front Lower Body Panel

705014105

$69.20

Orange Crush, LH Lower Body Panel

705014106

$69.20

Torx Screw M6 X 20

250000722

$1.34

Insert

705016606

$2.31

Orange Crush, LH Rear Lower Body Panel

705014107

$110.74

Orange Crush, RH Rear Lower Body Panel

705014108

$110.74

Orange Crush, LH Body Panel Guard

705014109

$115.35

Flat washer M6

250200164

$0.83

Torx Truss Screw M6 X 25

250000807

$1.74

Pop Rivet 3/16”

293150108

$1.23

Orange Crush, RH Body Panel Guard

705014110

$115.35

LH Lateral Structure

705012774

$209.20

Panel Nut M6 X 1.0

250100198

$1.73

Hex. Flange Screw M8 X 70

207687044

$6.11

Saddle Washer

705205462

$5.52

Elastic Flange Nut M8

233281464

$0.83

RH Lateral Structure

705012775

$209.20
