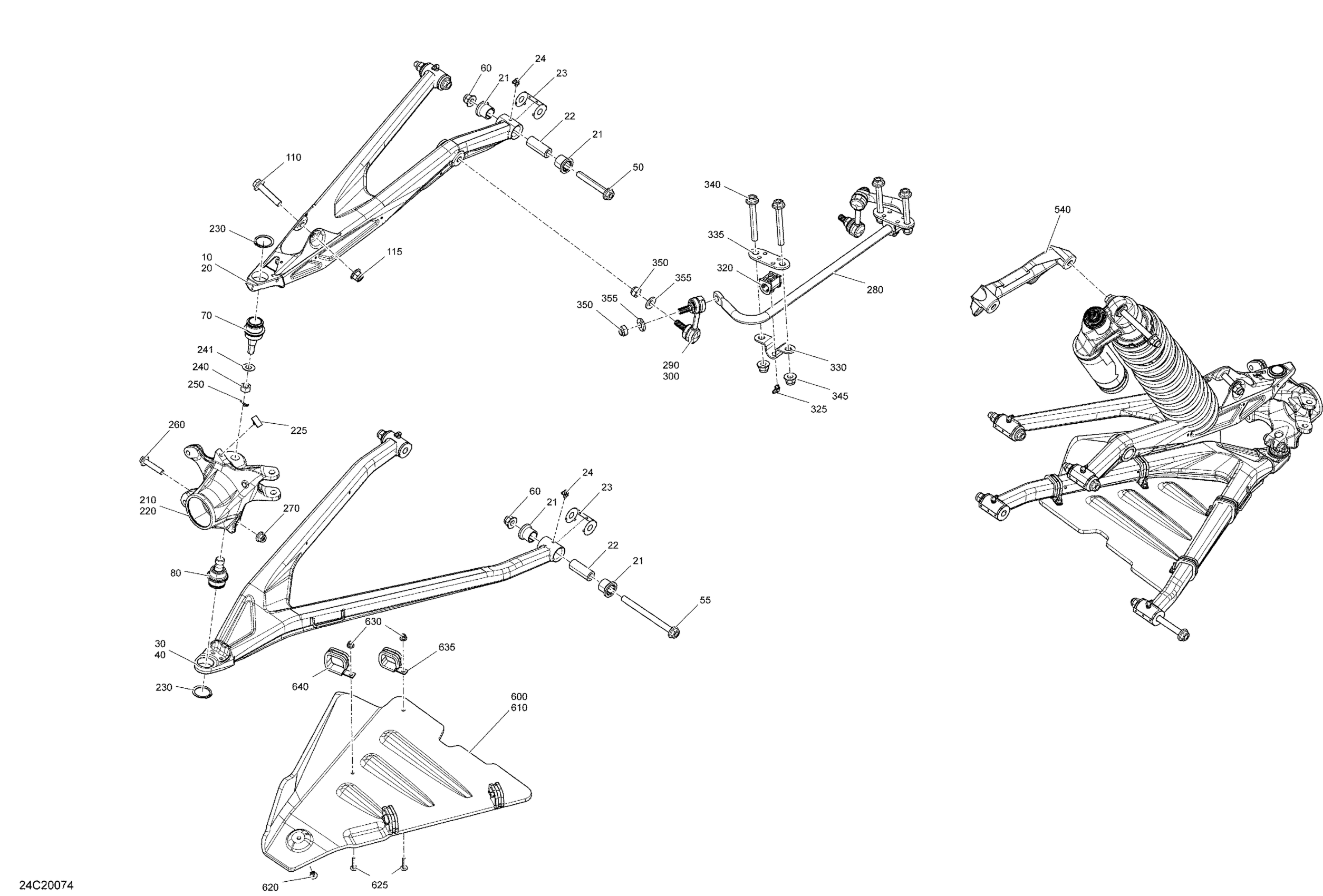

Can-Am Maverick Turbo RR - XRC - 2020 Front Suspension Diagram

#

Description
Price

10

Orange Crush, LH Upper Suspension Arm

706204100

$264.15

20

Orange Crush, RH Upper Suspension Arm

706204101

$187.28

21

Suspension Arm Bushing

706204409

$8.40

22

Interior Bushing

706202257

$7.27

23

Wear Plate

706202300

$1.69

24

Grease Fitting 90°

293550056

$1.04

30

Black, LH Lower Arm | Model X3 Xrs

706202706

$259.67

40

Deep Black, RH Lower Suspension Arm Ass'y With Balljoint This part replaces 706204734.

715010613

$259.67

50

Flange Screw M12 X 85

250000859

$4.54

55

Flange Screw M12 X 145

250000861

$6.28

60

Elastic Flange Nut M12

233221466

$2.46

70

Ball Joint

706203084

$34.30

80

Ball Joint

706202045

$34.30

110

Flange Screw M12 X 60

250000857

$6.99

115

Elastic Flange Nut M12

233221466

$2.46

210

LH Front Knuckle

706204785

$187.28

220

RH Front Knuckle

706204786

$138.03

225

Wear Plate

706202502

$2.29

230

Circlip

293370035

$2.48

240

Nut M12

250100099

$1.88

241

Hardened Washer

706200281

$2.69

250

Cotter Pin

211400017

$0.28

260

Hex. Flange Screw M10 X 50

207605044

$5.04

270

Hex. Flange Elastic Nut M10

233201436

$2.00

280

Stabilizer Bar Ass'y

706203953

$91.01

290

LH Stabilizer Bar Link

706203611

$62.66

300

RH Stabilizer Bar Link

706203612

$62.66

320

Stabilizer Bar Bushing

706204564

$3.58

325

Grease Fitting 90°

293550056

$1.04

330

Clamp

706202460

$6.19

335

Support Plate

706202551

$4.52

340

Hex. Flange Screw M12 X 95

250000876

$6.36

345

Elastic Flange Nut M12

233221466

$2.46

350

Elastic Stop Nut M12

232521416

$1.61

355

Conical Spring Washer M12

250200167

$3.49

540

Orange Crush, Front Shock Reinforcement

706203853

$47.73

600

LH A-Arm Protector

703501027

$164.90

610

RH A-Arm Protector

703501028

$146.24

620

Pop Rivet 3/16”

293150108

$1.19

625

Stainless, Torx Screw M6 X 30

250000842

$2.00

630

Hex. Flange Elastic Nut M6

233261494

$1.45

635

Holding Clamp

293750085

$6.75

640

Holding Clamp

293750086

$6.75
