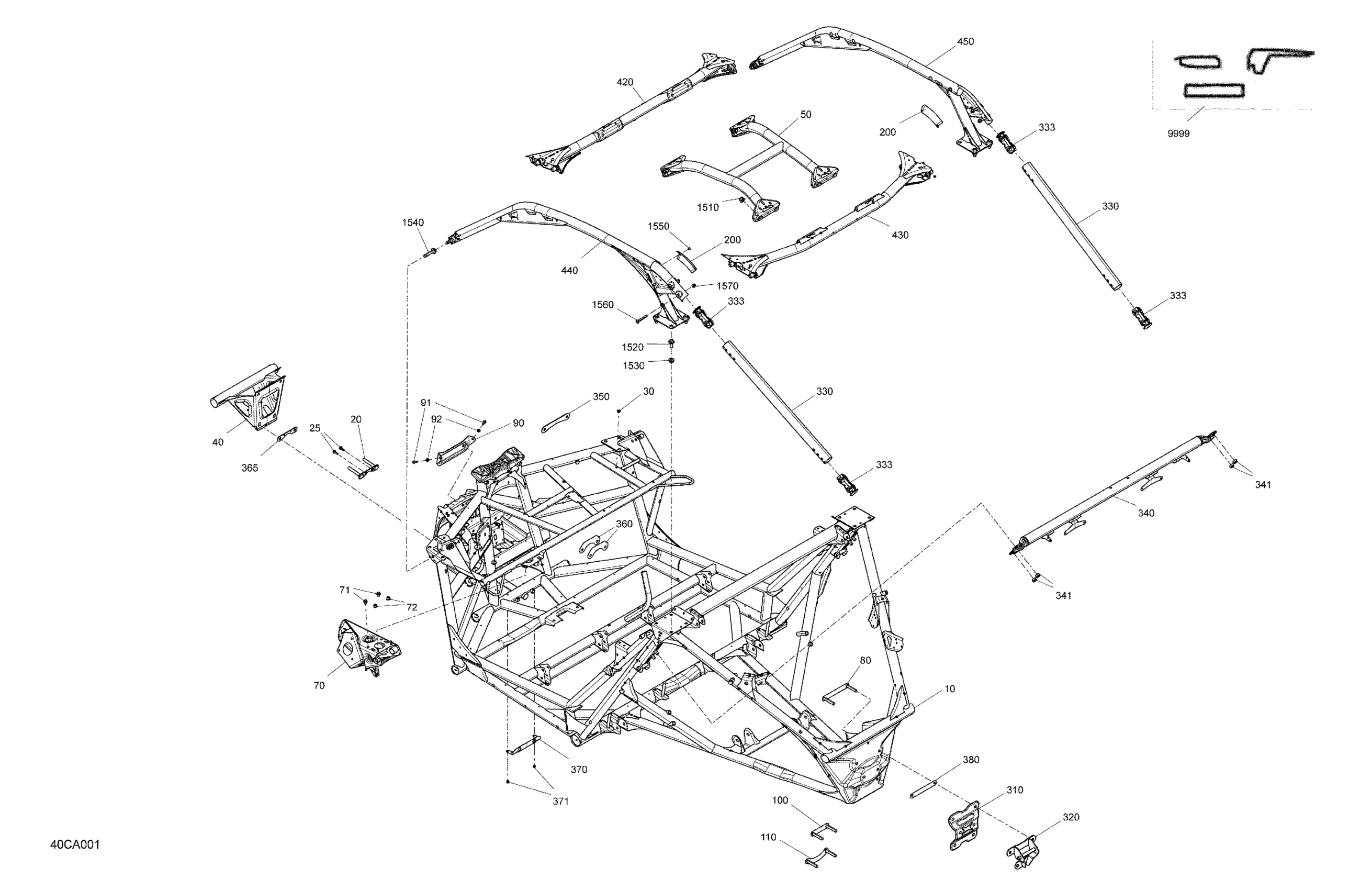

Can-Am Maverick Turbo R - DS_RS - 2021 Frame - System Diagram

Black, Frame Kit

715009098

$3,459.99

Front Plate

705207424

$22.99

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Deep Black, Front Bumper | Except Model Gold

705210400

$103.99

Added Cage | Except Model Gold Built in 2017

705206774

$91.99

DPS Support

705206924

$71.99

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

Hex. Elastic Flange Nut M8

233281416

$1.48

Rear Upper Plate

705206852

$22.99

Stifner Plate

705206877

$30.99

Hex. Flange Screw M6 X 16

207661654

$2.11

Hex. Flange Elastic Nut M6

233261494

$1.58

Rear Central Plate

705211558

$20.99

Rear Plate

705206854

$22.99

Black, LH Link Plate | Except Model Gold

705205926

$25.99

Rear Plate

705205750

$25.99

Black, Rear Attachement Hook

715004450

$85.99

Deep Black, Rear Pillar

705210066

$24.99

Sleeve

705210648

$9.90

Safety Belt Anchorage

705210001

$129.99

Elastic Stop Nut M12

232521416

$1.69

Connecting Plate

705211552

$5.39

Retaining Plate

705210249

$5.29

Front Plate | Package STD

705207438

$2.69

Support

706203122

$14.49

Pop Rivet 3/16"

390402200

$0.35

Front Upper Plate

705206069

$15.99

Deep Black, Front Cross Member | Includes 420 to 420a1j

705210068

$204.99

Deep Black, Rear Cross Member | Includes 430 to 430a1h

705210070

$204.99

Black, LH Cage Kit

715008442

$399.99

Black, RH Cage Kit

715008456

$399.99

Elastic Flange Nut M12

233221466

$2.89

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$6.14

Hex Flange Nut m12

233121466

$0.82

Flange Screw M12 X 60

250000857

$7.41

Rivet 3/16"

293150102

$0.70

Torx Truss M8 X 65

250000901

$1.90

Elastic Flange Nut M8

250100025

$1.48

Wear Plate Kit | Includes 15a to 15a4

703501157

$11.49
