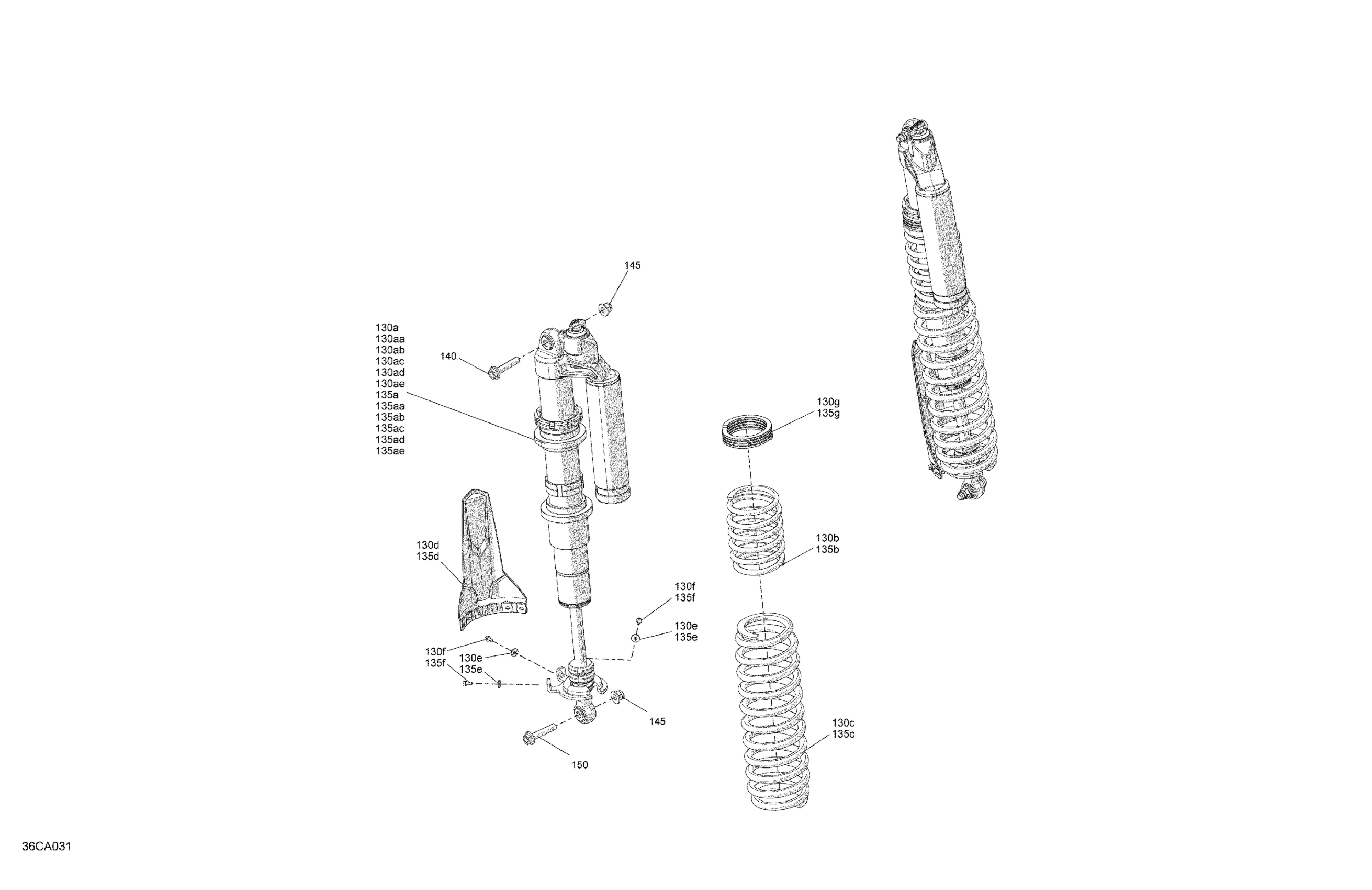

Can-Am Maverick Turbo R - DS_RS - 2021 Suspension - Rear Shocks - DS Diagram

#

Description
Price

130a

LH Rear Shock | Includes 135a to 135a5

706003059

$909.97

130aa

Spherical Bearing

715900337

$80.74

130ab

Ball Joint

706004078

$45.12

130ac

O-Ring Bushing

715900338

$10.98

130ad

Circlip

715900480

$11.06

130ae

Reducer

715900481

$27.66

130b

Northern Lichen, Compression Spring | Model Macchiato Satin

706004150

$96.89

130b

Gulfstream Blue Rear Spring

706003147

$96.89

130b

Red, Rear Spring | Red & White

706003278

$96.89

130c

Northern Lichen, Compression Spring | Model Macchiato Satin

706004149

$147.66

130c

Gulfstream Blue Rear Spring

706003148

$147.66

130c

Red, Rear Spring | Red & White

706003279

$147.66

130d

Protector

706202215

$9.23

130e

Washer M5

250200025

$0.61

130f

Hex Flange Screw M5 X 11

210251150

$1.74

130g

Black Rear Spring | Model X3

706002864

$78.43

130g

Gulfstream Blue, Rear Spring | Package XMR

706002560

$73.82

130g

Red Spring | Model-XRS-DPS-White

706001714

$73.82

135a

RH Rear Shock | Includes 135a to 135a5

706003060

$923.05

135aa

Spherical Bearing

715900337

$80.74

135ab

Ball Joint

706004078

$45.12

135ac

O-Ring Bushing

715900338

$10.98

135ad

Circlip

715900480

$11.06

135ae

Reducer

715900481

$27.66

135b

Northern Lichen, Compression Spring | Model Macchiato Satin

706004150

$96.89

135b

Gulfstream Blue Rear Spring

706003147

$96.89

135b

Red, Rear Spring | Red & White

706003278

$96.89

135c

Northern Lichen, Compression Spring | Model Macchiato Satin

706004149

$147.66

135c

Gulfstream Blue Rear Spring

706003148

$147.66

135c

Red, Rear Spring | Red & White

706003279

$147.66

135d

Protector

706202215

$9.23

135e

Washer M5

250200025

$0.61

135f

Hex Flange Screw M5 X 11

210251150

$1.74

135g

Northern Lichen, Compression Spring | Model Macchiato Satin

706004152

$73.82

135g

Gulfstream Blue, Rear Spring | Package XMR

706002560

$73.82

135g

Red Spring | Model-XRS-DPS-White

706001714

$73.82

140

Flange Screw M12 X 60

250000857

$6.08

145

Elastic Flange Nut M12

233221466

$2.15

150

Flange Screw M12 X 60

250000857

$6.08
