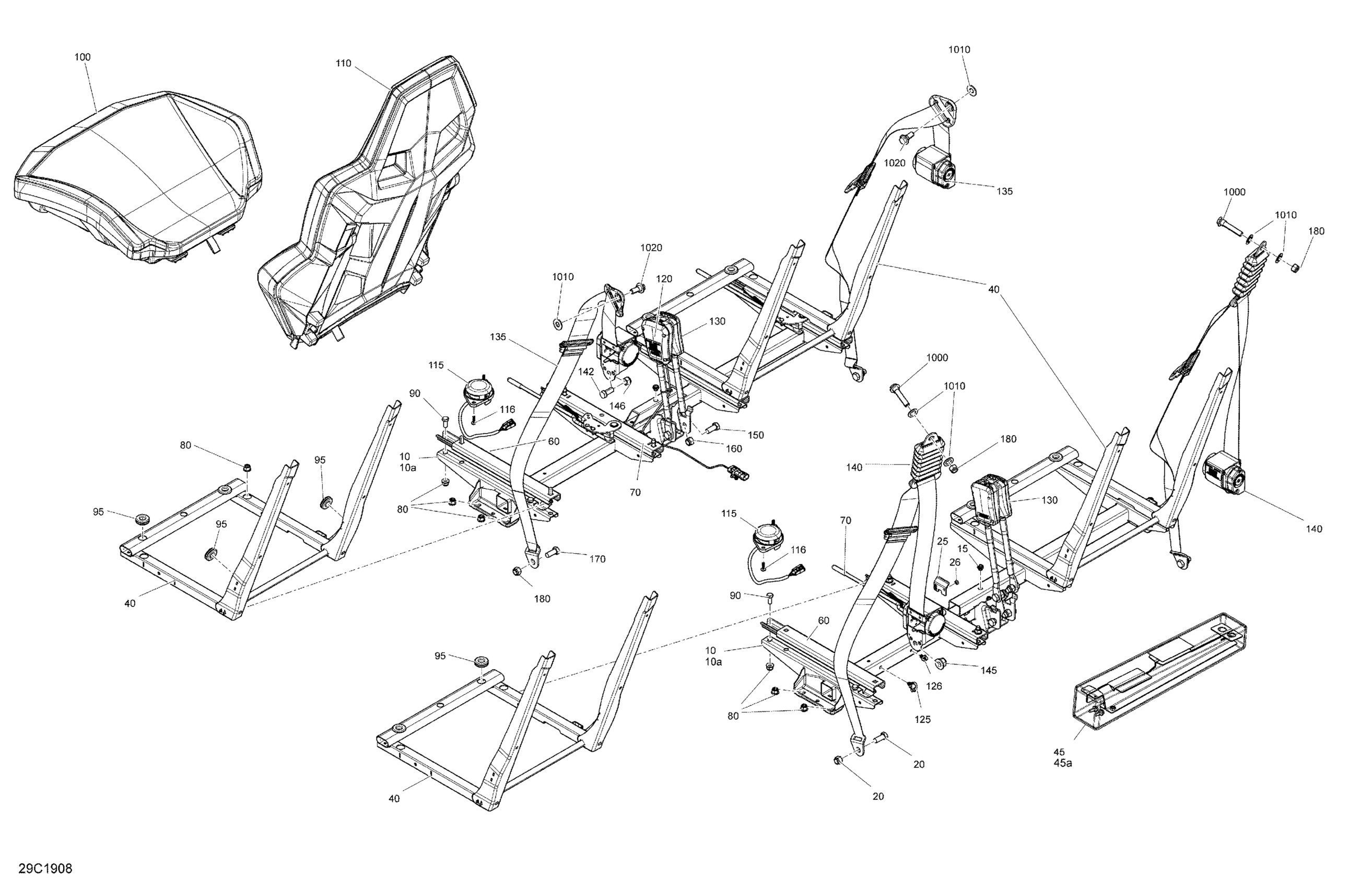

Can-Am Maverick Sport MAX 1000R - DPS - 2019 Seat - Sport Diagram

#

Description
Price

10

Seat Member | Includes 10 to 10a

708002568

$139.99

10a

Pop Rivet 3/16"

390402200

$0.35

15

Insert Half Hex Body M6 x 1.0

250100199

$3.19

25

Seat Stopper

708003672

$2.59

26

Pop Rivet 3/16"

390402200

$0.35

40

Seat Frame

708002423

$329.99

45

Seat Support Kit | Includes 45 to 45c

708002945

$199.99

45a

Hex. Flange Screw M6 X 16

207661654

$2.11

60

LH Rail

708000848

$53.99

70

RH Rail

708002711

$35.99

80

Hex. Flange Elastic Nut M8

233281414

$1.47

90

Hex. Screw M8 X 20

207182044

$0.74

95

Grommet

517303756

$4.09

100

Cushion Ass'y

708002847

$249.99

110

LH Seat Base Kit

715005817

$339.99

110

RH Seat Base Kit

715005819

$339.99

115

Passenger Detection Switch

710008103

$76.99

116

Torx Screw Truss Head K50X20 T20

250000760

$2.11

120

Driver Buckle

708002331

$70.99

125

Christmas Tree Tie-Rap

710005237

$7.16

126

Dart Tie Rap 200MM

710003168

$7.09

130

Passenger Buckle

708002329

$67.99

135

Safety Belt

708002835

$243.49

140

Safety Belt

708003378

$238.49

142

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.90

145

Elastic Flange Nut M12

233221416

$2.85

146

Lock Nut Nylon 7/16

250100183

$2.00

150

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.90

160

Lock Nut Nylon 7/16

250100183

$2.00

170

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.90

180

Lock Nut Nylon 7/16

250100183

$2.00

1000

Safet Belt Screw

708002443

$19.99

1010

Position Washer

708000891

$1.29

1020

Safety Belt screw

708002504

$5.29
