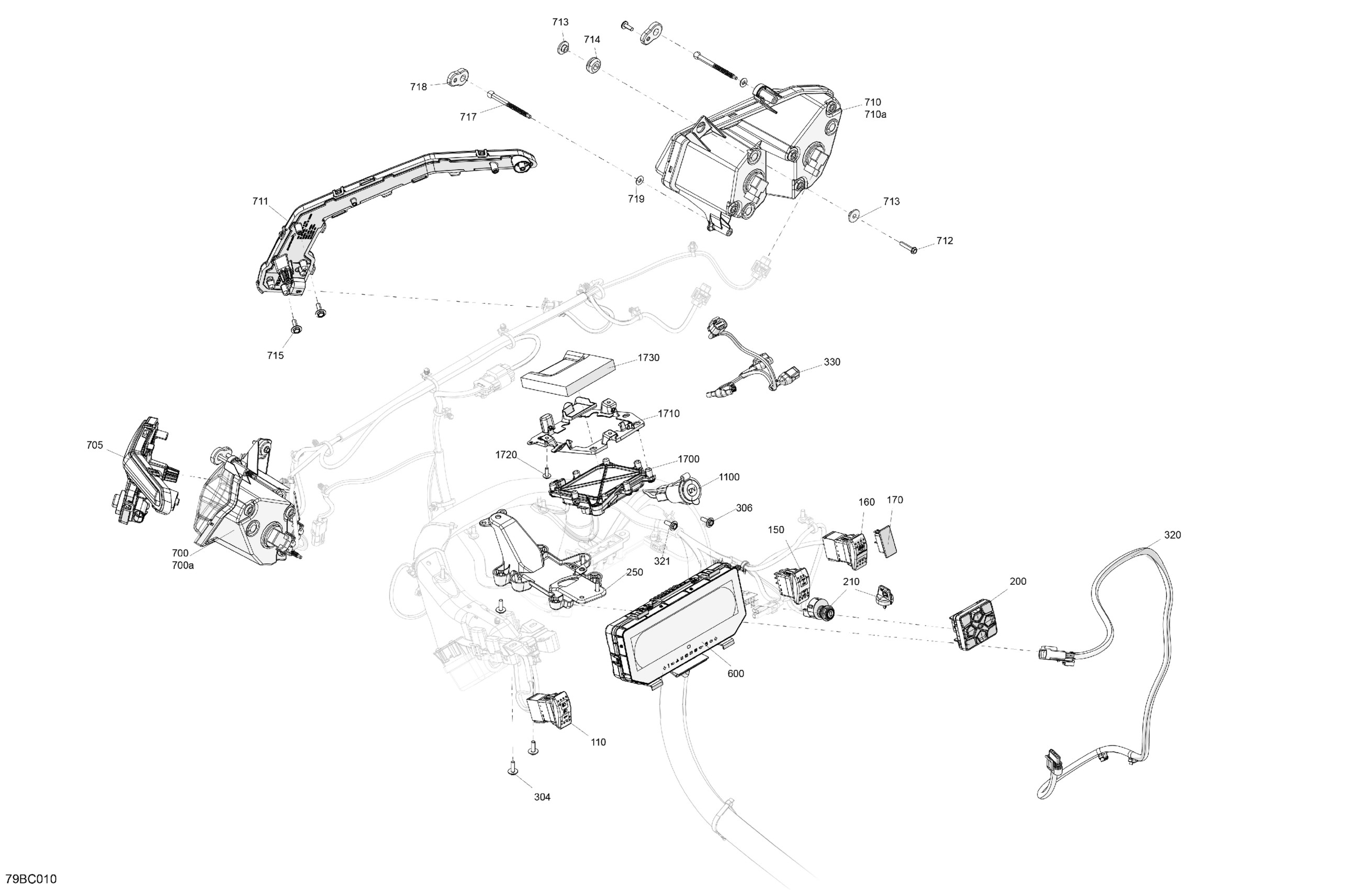

Can-Am Maverick Sport 1000R - XXC - 2023 Electric - Front Section Diagram

#

Description
Price

110

Light Switch

710004492

$47.49

150

Differential Switch

710006040

$31.99

160

Differential Mode Switch

710006557

$31.99

170

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

200

Multifonction Switch

710006650

$87.99

205

Specialized Nut

710007923

$2.11

209

Sticker | Not Shown

710008322

Unavailable

210

Ignition Switch | Includes 210 to 210b

710007324

$64.49

210a

Specialized Nut

710007923

$2.11

210b

Blank Ignition Key

715900934

$19.99

250

Housing Support

710005672

$10.49

304

Screw PT Type K-50 X 16

250000959

$2.11

306

Screw PT Type K-50 X 16

250000959

$2.11

320

Trottle Pedal Harness

710005929

$239.99

321

Screw PT Type K-50 X 16

250000959

$2.11

330

Front Differential Wiring Harness

710006807

$49.99

600

Multifunction Gauge MID | Model XTP

710007409

$369.99

700

LH Headlamp | Includes 700 to 700a

710008230

$199.99

700a

Bulb 12V 55W

715900141

$41.49

705

LH Signature Beam

710004994

$169.99

710

RH Headlamp | Includes 710 to 710a

710008231

$199.99

710a

Bulb 12V 55W

715900141

$41.49

711

RH Signature Beam

710004995

$169.99

712

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.44

713

Shoulder Bushing

710004749

$2.69

714

Grommet

709000582

$4.69

715

Screw PT Type K-50 X 16

250000959

$2.11

717

Ajustment Screw

710005837

$6.35

718

Ball Socket

293900157

$9.59

719

O-Ring

293300192

$4.92

1100

12V Power Outlet

710005374

$33.99

1700

Differential Module

710008842

$479.99

1710

FDM Support

710006104

$7.90

1720

Screw PT Type K-50 X 16

250000959

$2.11

1730

Protector Foam

710006580

$16.99
