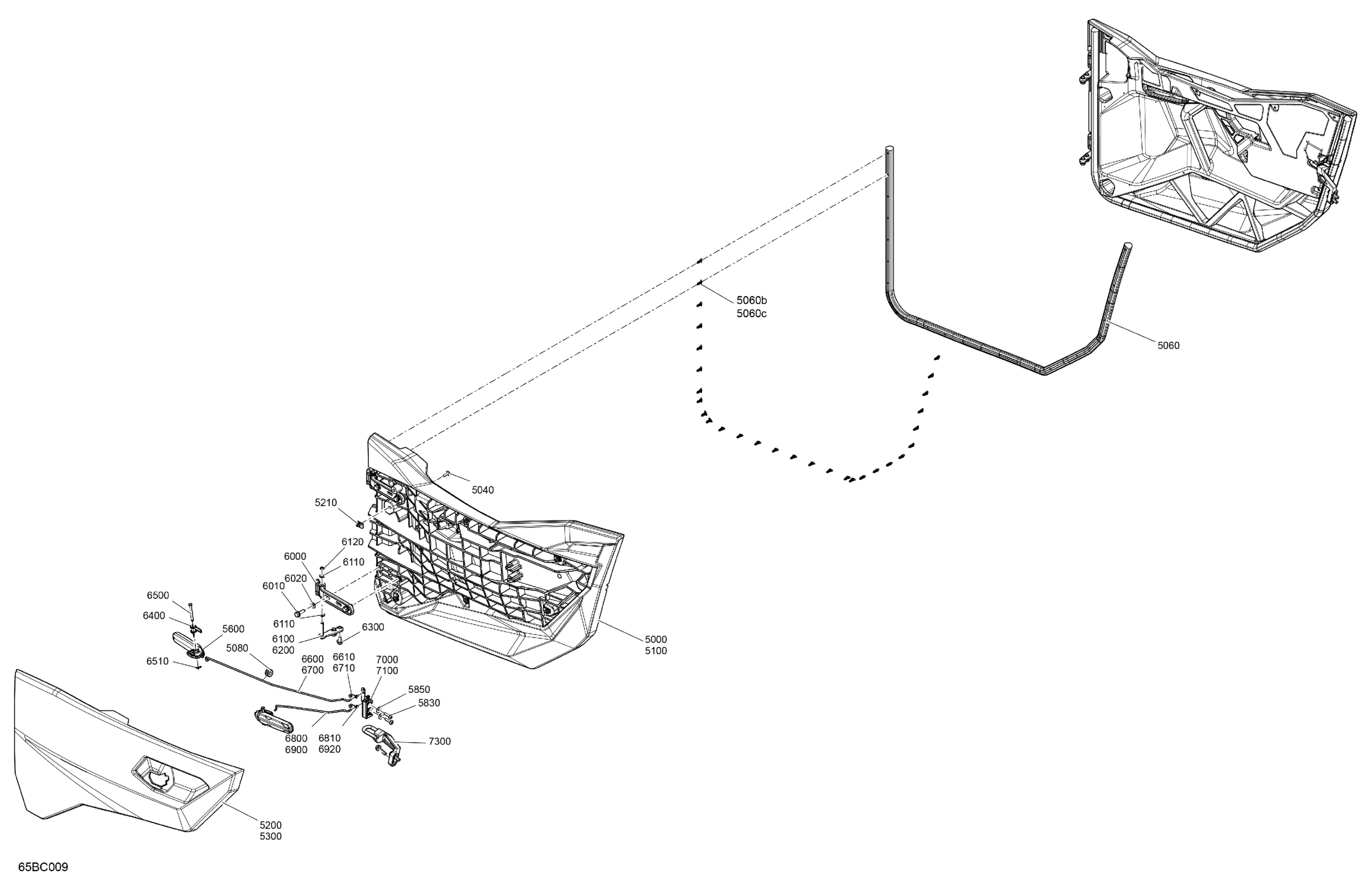

Can-Am 004 - Maverick Sport 1000R - XXC - North America, 2023 07- Enclosure Cab - Doors Diagram

Description

Price

5000

LH Front Door Panel

705012982

$329.99

5000

LH Front Door Ass'y

715007883

$214.99

5040

Torx Screw M6 X 20

250000722

$1.68

5060

LH Front Door Gasket Ass'y | Includes 5060 to 5060c

293250501

$40.99

5060b

Natural Color, Dart

293730081

$2.68

5060c

Red, Dart

293730082

$2.68

5080

Grommet

293720104

$5.29

5100

RH Front Door Panel

705012983

$329.99

5100

RH Front Door Trim Ass'y

715009732

$409.99

5200

Carbon Black, LH Front Door Panel

705015610

$254.99

5210

Panel Nut M6 X 1.0

250100198

$2.11

5300

Carbon Black, RH Front Door Panel

705015617

$254.99

5600

Opening Handle

705012986

$16.49

5830

Torx Truss Screw M6 X 25

250000807

$2.11

5850

Stainless Steel Flat Washer

234062670

$2.11

6000

Hinge

705013228

$26.99

6010

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

6020

Washer

503192494

$3.17

6100

Lower Hinge Ajustement

705011629

$15.49

6110

Flat Washer 8 mm, Nylon

234081100

$1.39

6120

Circlip | RS STD

705601030

$4.39

6200

Upper Hinge Ajustement

705012506

$15.49

6300

Hex. Flange Screw DIN.6921 S.Grip

250001033

$1.16

6400

Handle Spring

705013062

$14.99

6500

Handle Axle

705207440

$14.49

6510

External Retaining Ring

705601875

$4.09

6600

LH Upper Locking Rod

705207146

$10.49

6610

RH Tie Rod Clip

708300202

$2.89

6700

RH Upper Locking Rod

705207147

$10.49

6710

LH Tie Rod Clip

708300182

$2.89

6800

LH Lower Locking Rod

705207150

$3.89

6810

RH Tie Rod Clip

708300202

$2.89

6900

RH Lower Locking Rod

705207151

$3.89

6920

LH Tie Rod Clip

708300182

$2.89

7000

LH Latch

705013095

$43.99

7100

RH Latch

705013096

$43.99

7300

RH Stricker Support

705207028

$26.99
