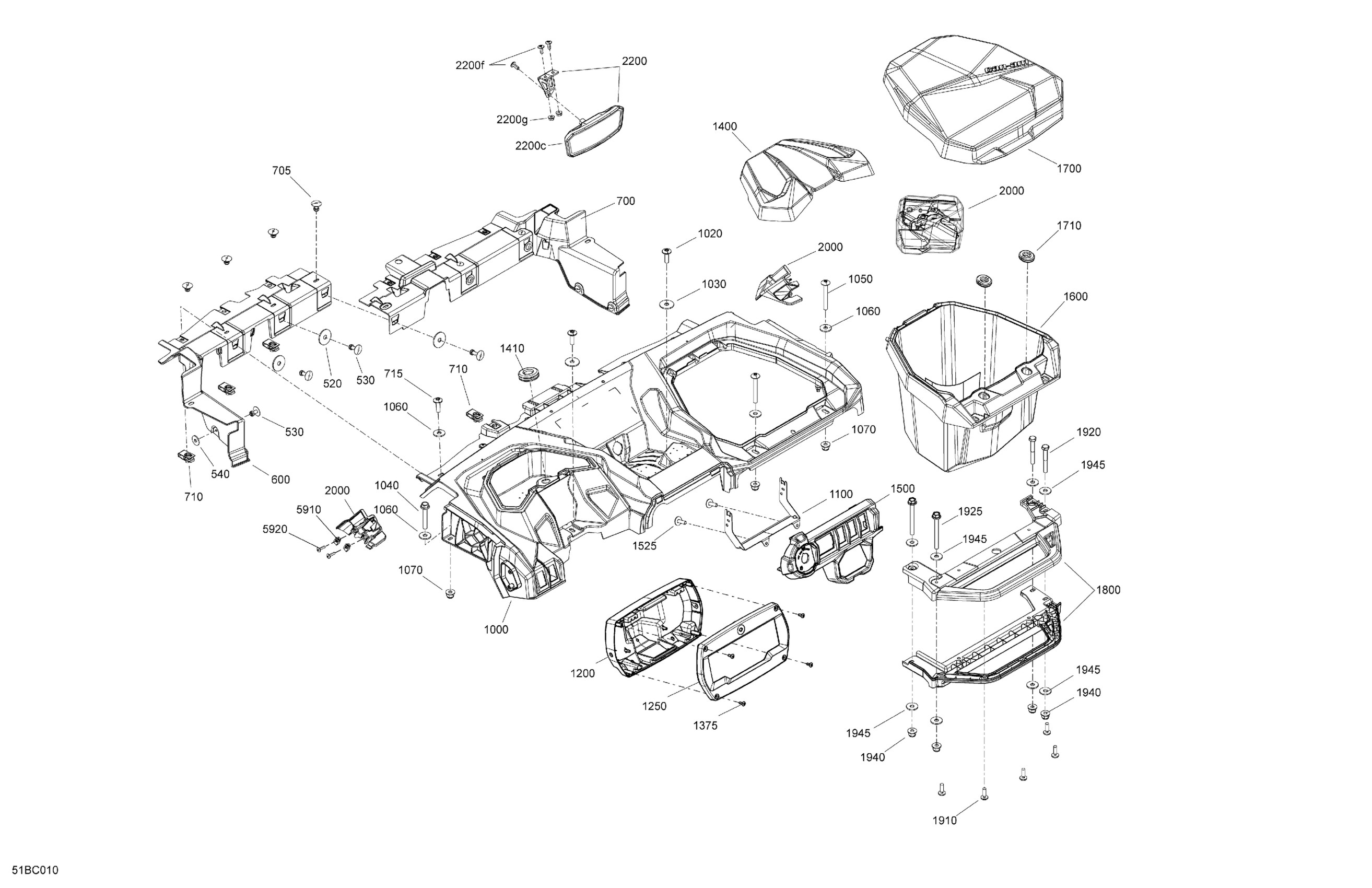

Can-Am 004 - Maverick Sport 1000R - XXC - North America, 2023 07- Cab Interior - Dashboard Diagram

Description

Price

520

Flat Washer M6 X 25

250200044

$2.69

530

Pop Rivet 3/16"

293150100

$1.09

540

Washer M5

250200025

$0.74

600

LH Upper Front Bulkhead

707900513

$18.99

700

RH Upper Front Bulkhead

707900514

$18.99

705

Pop Rivet 3/16"

293150100

$1.09

710

Panel Nut M6 X 1.0

250100198

$2.11

715

Torx Screw M6 X 20

250000722

$1.68

1000

Dashboard Kit

715008528

$204.99

1020

Torx Screw M6 X 20

250000722

$1.68

1030

Flat Washer M6.6 X 22

250200162

$2.32

1040

Hex. Flange Screw M6 X 40

207664044

$2.22

1050

Torx Truss M6 X 50

250000868

$2.11

1060

Stainless Steel Flat Washer

234062670

$2.11

1070

Hex. Flange Elastic Nut M6

233261466

$2.00

1100

Dash Support

707900941

$9.79

1200

Rear Gauge Trim

709402490

$22.49

1250

Front Gauge Trim

709402487

$22.49

1375

Torx Truss PT K40 x 12

250001131

$2.11

1400

Storage Cover

707901114

$15.49

1410

Grommet

517303756

$4.09

1500

Switch Support

707900876

$18.54

1525

Screw PT Type K-50 X 16

250000959

$2.11

1600

Glove Box

707900525

Unavailable

1700

Glove Box Cover

715005009

$53.99

1710

Oblong Grommet

707900663

$2.79

1800

Passenger Handle Bar Kit

707900559

$34.99

1910

Torx Screw K50 X 16

250000720

$1.69

1920

Hex. Screw M6 X 45

207064544

$2.11

1925

Hex. Flange Screw M6 X 60

250000778

$4.44

1940

Hex. Flange Elastic Nut M6

233261466

$2.00

1945

Stainless Steel Flat Washer

234062670

$2.11

2000

Front Cage Trim Kit

707901021

$28.99

2200

Center Mirror Kit | Except Package XMR

715004924

$106.49

2200c

Central Mirror

707900502

$56.99

2200f

Torx Truss Screw M6 X 16

250000721

$1.69

2200g

Hex. Elastic Flange Nut M6

233161464

$1.01

5910

Panel Nut M5 X 0.8

250000958

$4.23

5920

Torx Screw M5 X 20

250000724

$1.69
