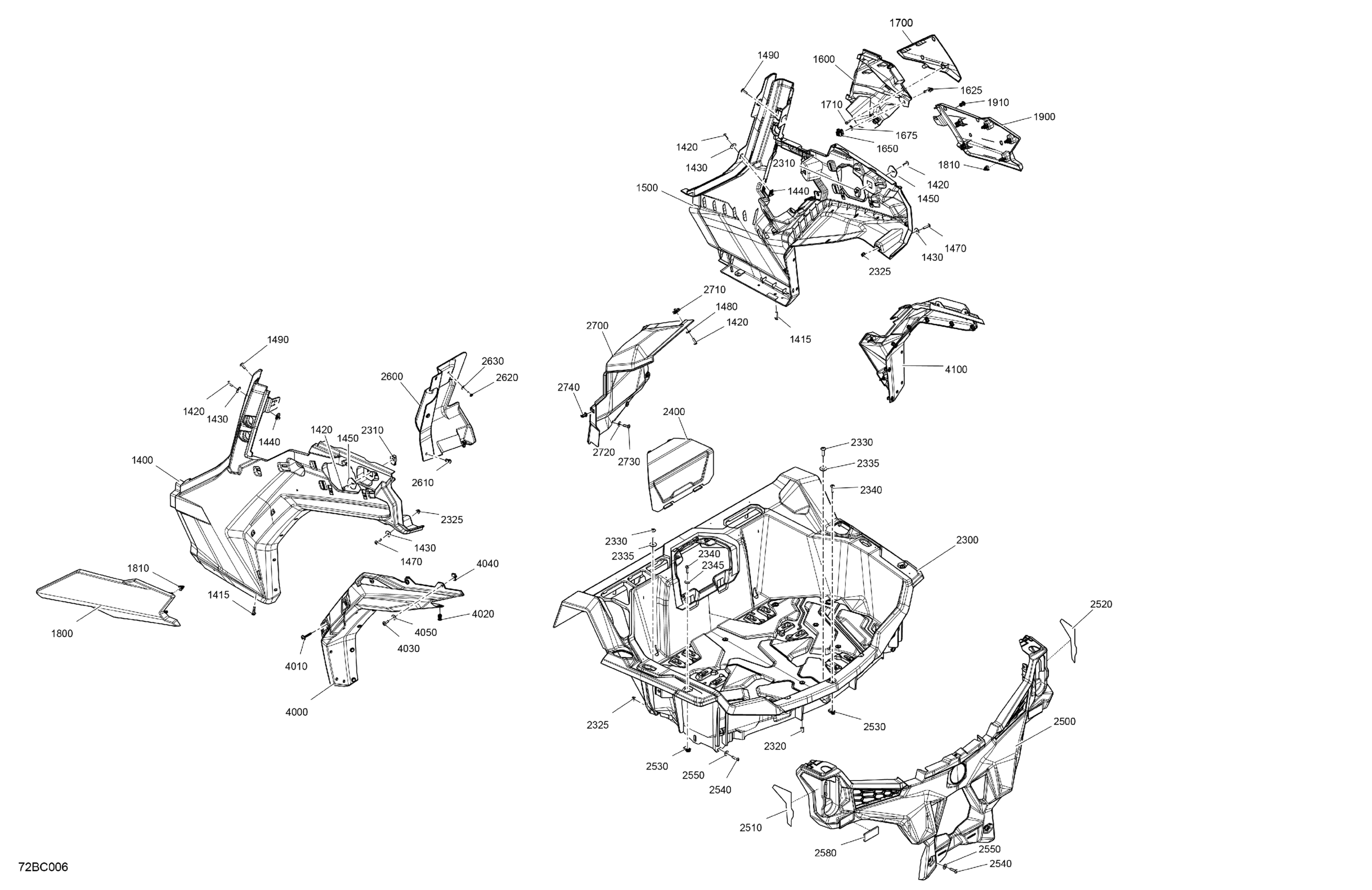

Can-Am Maverick Sport 1000R - XXC - 2023 Body - Rear Section Diagram

#

Description
Price

1400

Macchiato Satin, LH Rear Fender

705015487

$124.60

1415

Hex. Flange Screw M6 X 25

207662554

$1.43

1420

Torx Screw M6 X 20

250000722

$1.34

1430

Flat Washer M6.6 X 22

250200162

$1.91

1440

Panel Nut M6 X 1.0

250100198

$1.73

1450

Support Plate

705003841

$0.91

1470

Torx Truss Screw M6 X 25

250000807

$1.74

1480

Stainless Steel Flat Washer

234062670

$1.74

1490

Black, Dart

414644300

$0.78

1500

Macchiato Satin, RH Rear Fender

705015488

$124.60

1600

Air Filter Acces Door

705016127

$67.88

1625

Quarter Turn

708400278

$4.15

1650

Clip

708400285

$3.90

1675

Washer

708400286

$3.90

1700

Macchiato Satin, Acces Panel Trim

705015591

$97.73

1710

Torx Screw K50 X 16

250000720

$1.39

1800

Macchiato Satin, LH Open Carrier Trim

705015596

$162.66

1810

Clip

517306478

$1.03

1900

Macchiato Satin, LH Open Carrier Trim

705015601

$162.66

1910

Tuflok Plastic Rivet

293150230

$1.21

2300

Rear Box

705016885

$354.45

2310

Panel Nut M6 X 1.0

250100224

$1.70

2320

Hex. Coupling Nut M6

250100207

$1.88

2325

Hex. Elastic Flange Nut M6

233161464

$0.83

2330

Hex Torx Truss M8 X30

250000745

$2.96

2335

Stainless Steel Flat Washer

234082670

$1.74

2340

Torx Truss Screw M6 X 25

250000807

$1.74

2345

Stainless Steel Flat Washer

234062670

$1.74

2400

Access Cover Kit

715006766

$24.60

2500

Rear Fascia

705016944

$152.96

2510

LH Rear Reflector

704906815

$10.67

2520

RH Rear Reflector

704906816

$10.82

2530

Panel Nut M6 X 1.0

250100198

$1.73

2540

Torx Truss Screw M6 X 25

250000807

$1.74

2550

Stainless Steel Flat Washer

234062670

$1.74

2580

Red Reflector

520001820

$17.13

2600

LH Rear Wheel Arch Protector

705015886

$38.78

2610

Tuflok Plastic Rivet

293150230

$1.21

2620

Torx Screw K50 X 16

250000720

$1.39

2630

Washer M5

250200025

$0.61

2700

RH Rear Wheel Arch Protector

705016135

$38.78

2710

Panel Nut M6 X 1.0

250100198

$1.73

2720

Stainless Steel Flat Washer

234062670

$1.74

2730

Torx Screw M6 X 20

250000722

$1.34

2740

Tuflok Plastic Rivet

293150230

$1.21

4000

LH Rear Mud Guard

705016942

$52.21

4010

Torx Truss Screw Head PT.K50 X 40

250000840

$1.56

4020

Tuflok Plastic Rivet

293150230

$1.21

4030

Torx Screw M6 X 20

250000722

$1.34

4040

Panel Nut M6 X 1.0

250100198

$1.73

4050

Stainless Steel Flat Washer

234062670

$1.74

4100

RH Rear Mud Guard

705019031

$52.21
