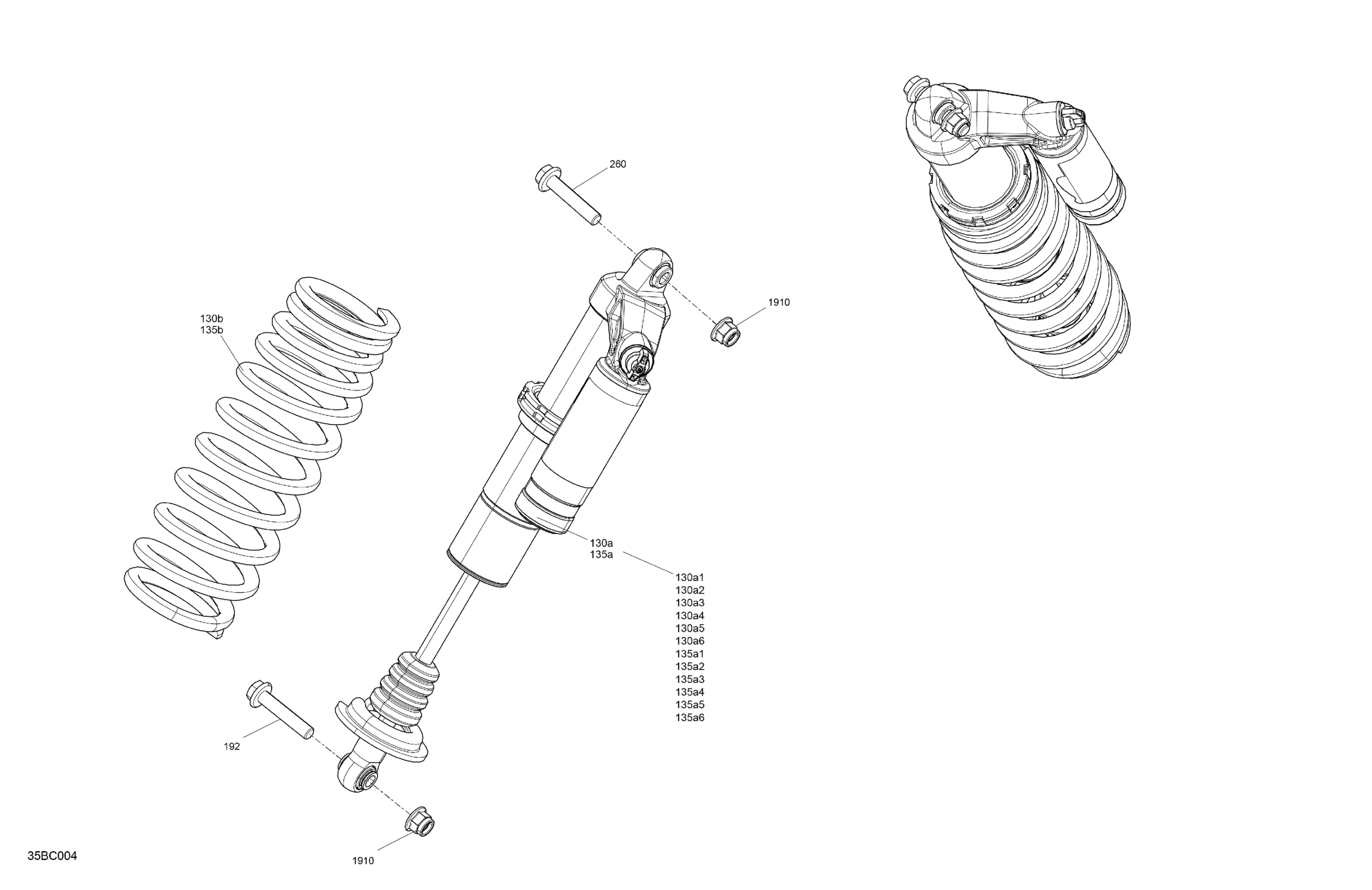

Can-Am Maverick Sport 1000R - XXC - 2023 Suspension - Front Shocks Diagram

Description

Price

130a

LH Front Shock | Includes 130a to 130a6

706203352

$719.99

130a1

Spherical Bearing

715900329

$84.99

130a2

Spherical Bearing

715900330

$84.99

130a3

Protector

715900331

$13.99

130a4

O-Ring Bushing

715900268

$14.75

130a5

Retaining Ring

715900252

$12.49

130a6

Internal Bushing

715900267

$26.49

130b

Magma Red, Compression Spring

706205393

Unavailable

135a

RH Front Shock | Includes 135a to 135a6

706203353

$919.99

135a1

Spherical Bearing

715900329

$84.99

135a2

Spherical Bearing

715900330

$84.99

135a3

Protector

715900331

$13.99

135a4

O-Ring Bushing

715900268

$14.75

135a5

Retaining Ring

715900252

$12.49

135a6

Internal Bushing

715900267

$26.49

135b

Magma Red, Compression Spring

706205393

Unavailable

192

Flange Screw M12 X 60

250000857

$7.41

260

Flange Screw M12 X 60

250000857

$7.41

1910

Elastic Flange Nut M12

250001195

$2.64
